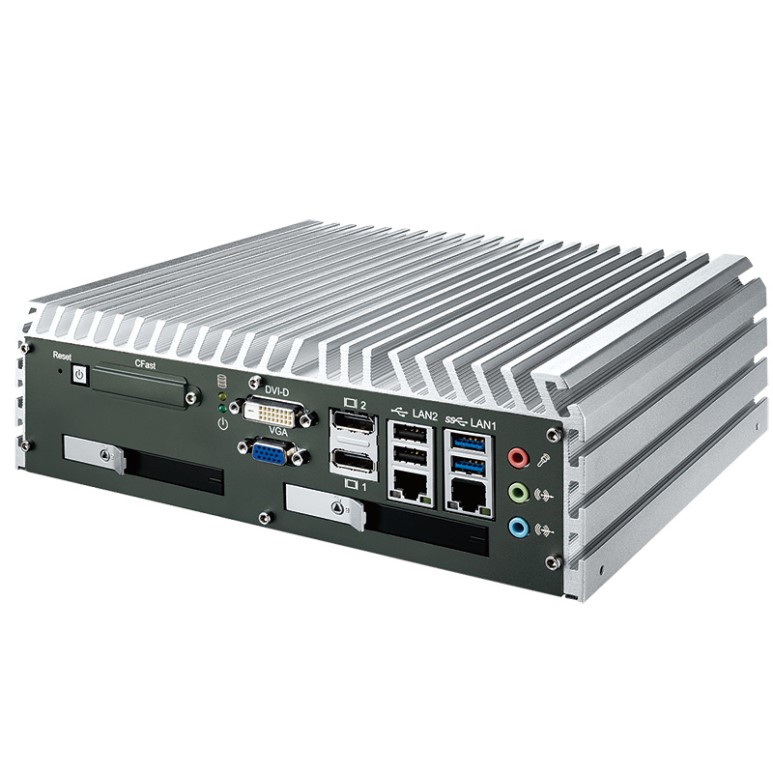

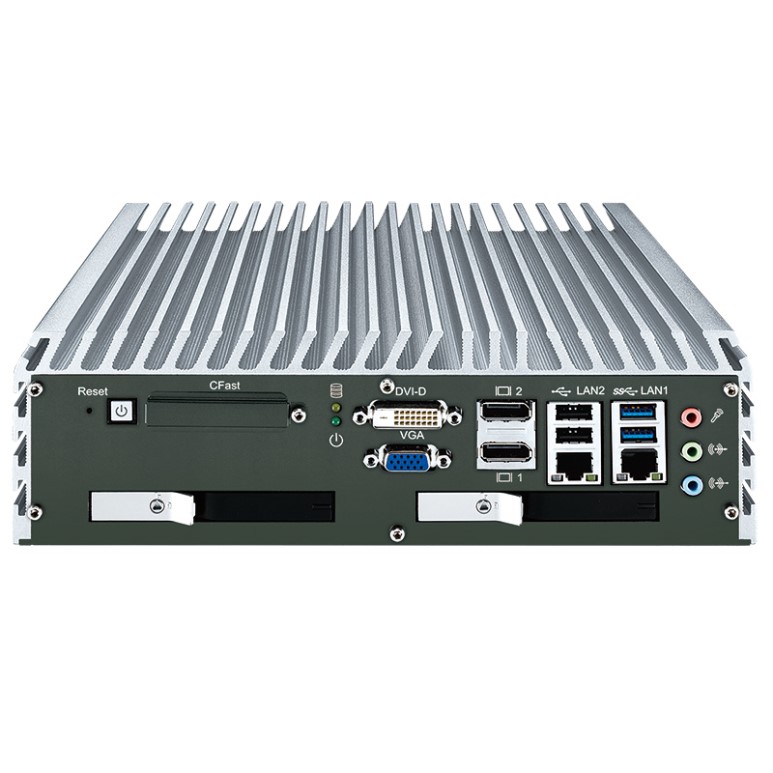

ECS-7800(POE+) /Intel Core™ i7/i5/i3 Fanless Embedded System

산업용보드 > 1U Rackmount

제품문의 02-3016-2464 http://www.wjubc.co.kr

Features

Quad Core Intel® Core™ i7/i5/i3 Processor (Ivy Bridge)

Supports VGA/DVI-D/Dual DisplayPort/LVDS interface, up to 3 independent displays

Fanless, -25°C to 70°C Operating Temperature

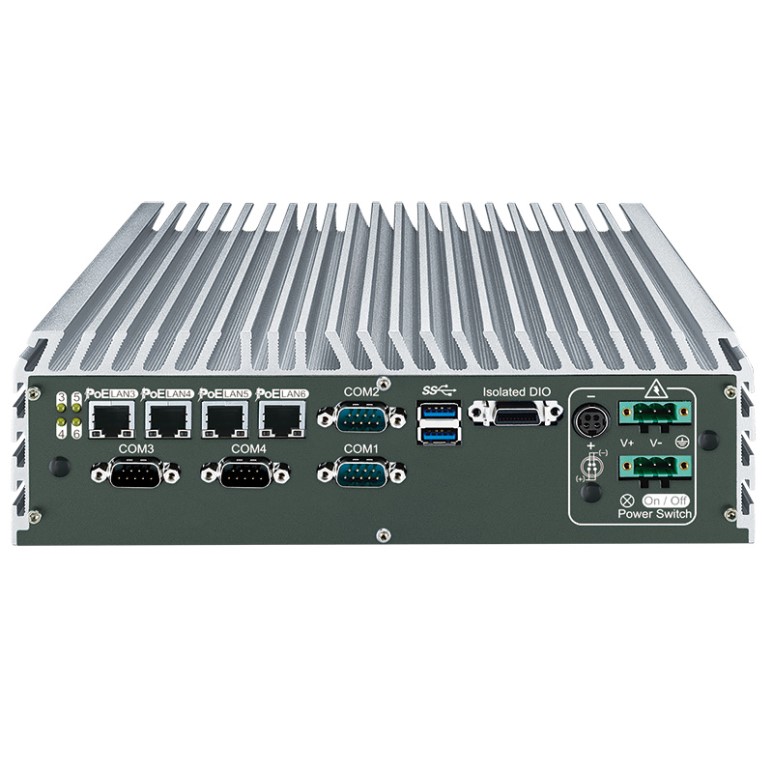

6 Gigabit LAN with 4 IEEE 802.3at PoE+

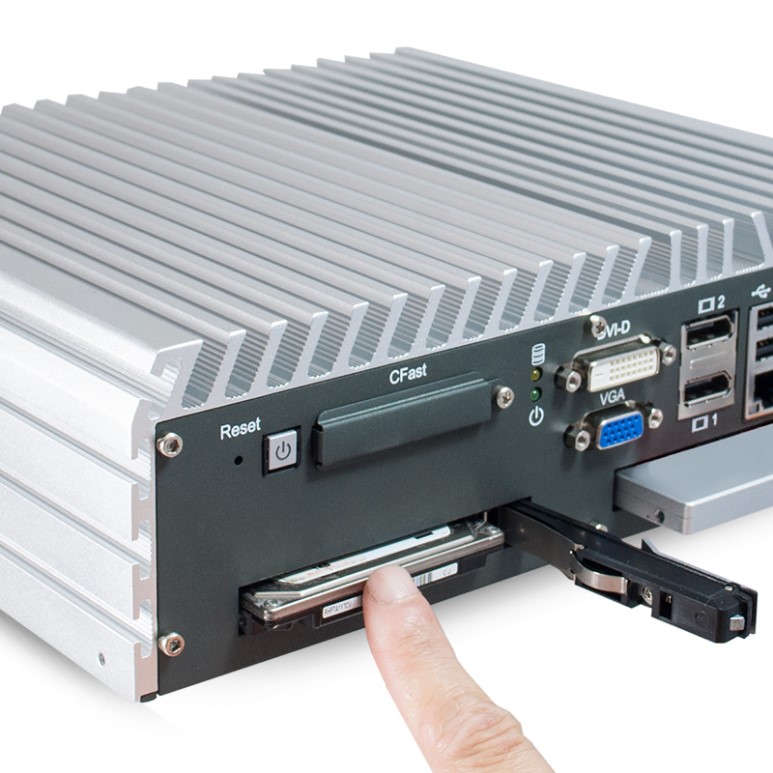

2 Front-access 2.5" SSD/HDD Tray

16 Isolated DIO, 16 GPIO

SIM Card Socket for 3G/4G/LTE/WiFi/GPRS/UMTS

6V to 36V DC-in with 80V Surge Protection

4 COM, 4 USB 3.0, 4 USB 2.0, 1 Front-access CFast

2 Mini PCIe, 2 SATA III, 1 SATA II, 2 SUMIT (Optional)

Intel® AMT 8.0 supported

E13, EN50155, EN50121-3-2, VMware Ready

System
Processor	Intel® Core™ i7-3610QE/ i5-3610ME/ i3-3120ME
Chipset	Intel® QM77
BIOS	AMI
SIO	IT8783
Memory	2 DDR3 1066/ 1333/ 1600 MHz or DDR3L 1066/ 1333 MHz SO-DIMM, up to 16GB
I/O Interface
Serial	- 1 COM RS-232/ 422/ 485 - 3 COM RS-232
USB	- 4 USB 3.0 (External) - 4 USB 2.0 (2 External, 2 Internal by JST Connector)
Isolated DIO	16 Isolated DIO : 8 DI, 8 DO
GPIO	16 GPIO (Internal)
LED	Power, HDD
SIM Card	1 SIM Card Socket (Internal)
Expansion
Mini PCIe	2 Mini PCIe Socket : - 1 Mini PCIe for PCIe/ USB/ Internal SIM Card/ Optional mSATA - 1 Mini PCIe for PCIe/ USB/ Optional mSATA
SUMIT A, B	2 SUMIT Slot (Optional)
Graphics
Chipset	Intel® HD 4000
Display Memory	Shared Memory, Up to 1.7GB
Interface	- VGA : DB-15, up to 1920 x 1200 - DVI-D : Up to 1920 x 1200 - DisplayPort 1 : Up to 2560 x 1600 - DisplayPort 2 : Up to 1920 x 1200 - LVDS : Dual channel 24-bit, up to 1920 x 1200
Storage
SATA	- 2 SATA III (6Gbps) - 1 SATA II (3Gbps), supports horizontal type SATA DOM
mSATA	2 SATA II (Mini PCIe Type, 3Gbps)
Storage Device	- 1 CFast Socket, Push-in/ Push-out Ejector - 2 2.5" SSD/ HDD Tray
Audio
Audio Codec	Realtek ALC892, 5.1 Channel HD Audio
Audio Interface	1 Line-in, 1 Line-out, 1 Mic-in
Ethernet
LAN 1	Intel® 82579LM Gigabit LAN supports iAMT 8.0
LAN 2	Intel® 82574L Gigabit LAN
PoE (Power-over-Ethernet)
LAN 3	Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® 82574L
LAN 4	Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® 82574L
LAN 5	Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® 82574L
LAN 6	Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® 82574L
Power
Power Input	6V to 36V, DC-in
Power Interface	3-pin Terminal Block : V+, V-, Frame Ground - Mini-DIN 4-pin
Remote Switch	3-pin Terminal Block
Surge Protection	Up to 80V/1ms Transient Power
Others
Trusted Platform Module (TPM)	Optional Infineon SLB9635 supports TPM 1.0, LPC Interface
Watchdog Timer	Reset : 1 to 255 sec./min. per step
Smart Management	Wake on LAN, PXE supported
HW Monitor	Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical

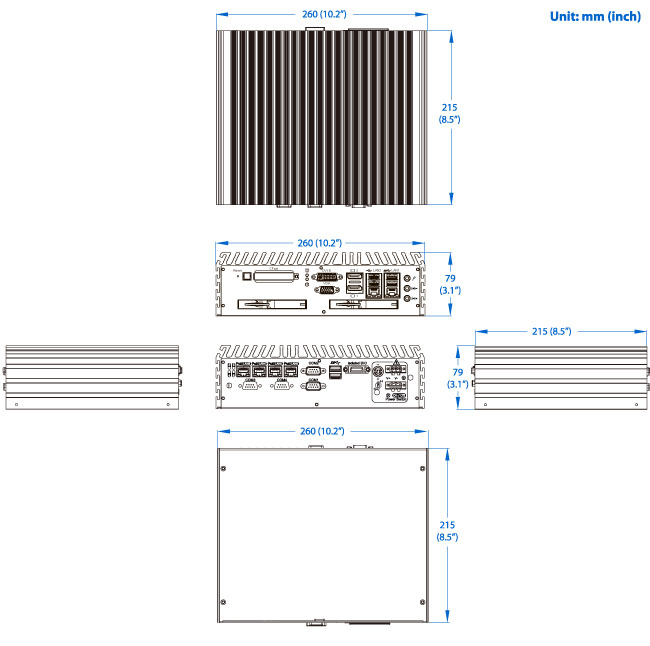

Dimensions (W x L x H)	260mm x 215mm x 79mm (10.2" x 8.5" x 3.1")
Weight	3.0 kg (6.6 lb)
Mounting	- Wallmount by mounting bracket - 2U Rackmount (Optional)
Environment
Operating Temperature	-25°C to 70°C (-13°F to 158°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	10% to 95% Humidity, non-condensing
Relative Humidity	95% at 70°C
Vibration	- IEC 60068-2-64 - SSD : 5Grms, 5Hz to 500Hz, 3 Axis
Shock	- IEC 60068-2-27 - SSD : 50G @ wallmount, Half-sine, 11ms
Certification	E13, CE, FCC, EN50155, EN50121-3-2, VMware Ready
