| Intel® Core™ i7-3610QE/ i5-3610ME/ i3-3120ME |
| |
| |
| |
| 2 DDR3 1066/ 1333/ 1600 MHz or DDR3L 1066/ 1333 MHz SO-DIMM, up to 16GB 2 204-pin SO-DIMM Sockets |
|
| |
| - 4 USB 2.0 (2 External, 2 Internal by JST Connector) |
| |
| |
|
| - 1 Mini PCIe for PCIe/ USB/ Internal SIM Card/ Optional mSATA - 1 Mini PCIe for PCIe/ USB/ Optional mSATA |
|
| |
| Shared Memory, Up to 1.7GB |

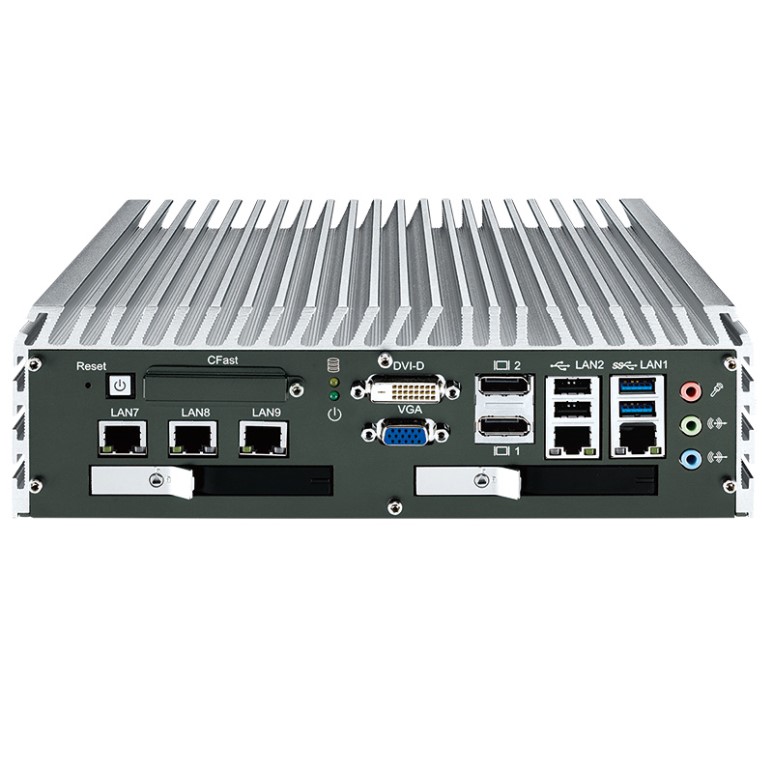

| - VGA : DB-15, up to 1920 x 1200 - DVI-D : Up to 1920 x 1200 - DisplayPort 1 : Up to 2560 x 1600 - DisplayPort 2 : Up to 1920 x 1200 - LVDS : Dual channel 24-bit, up to 1920 x 1200 |
|
| - 1 SATA II (3Gbps), supports horizontal type SATA DOM |
| 2 SATA II (Mini PCIe Type, 3Gbps) |
| - 1 CFast Socket, Push-in/ Push-out Ejector |
|
| Realtek ALC892, 5.1 Channel HD Audio |
| 1 Line-in, 1 Line-out, 1 Mic-in |
|
| Intel® 82579LM Gigabit LAN supports iAMT 8.0 |
| Intel® 82574L Gigabit LAN |
| Intel® 82574L Gigabit LAN |
| Intel® 82574L Gigabit LAN |
| Intel® 82574L Gigabit LAN |
| Intel® 82574L Gigabit LAN |
| Intel® 82574L Gigabit LAN |
| Intel® 82574L Gigabit LAN |
| Intel® 82574L Gigabit LAN |
|
| |

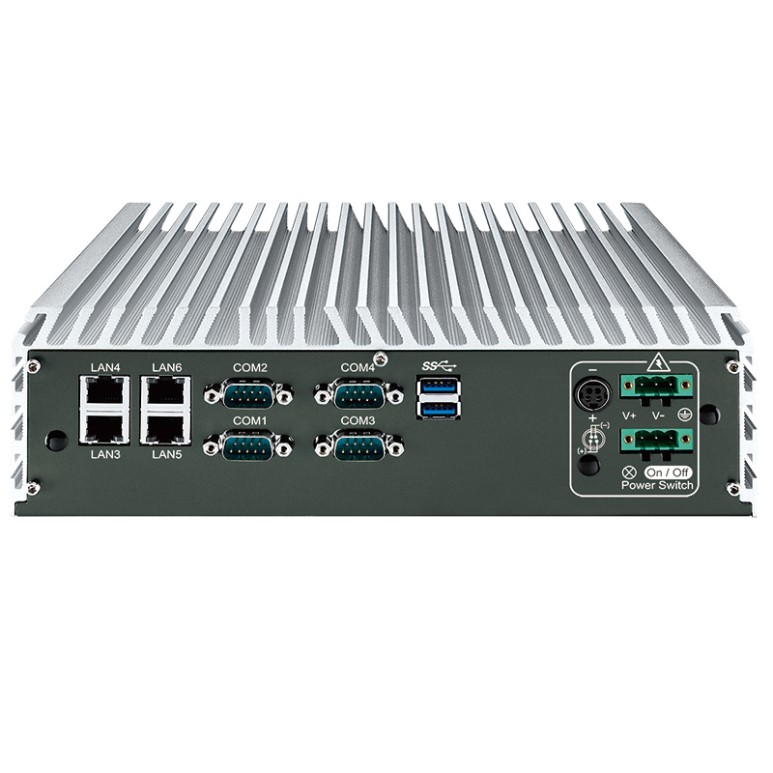

| - 3-pin Terminal Block : V+, V-, Frame Ground |
| |
| Up to 80V/1ms Transient Power |
|
Trusted Platform Module (TPM) | Optional Infineon SLB9635 supports TPM 1.2, LPC Interface |
| Reset : 1 to 255 sec./min. per step |
| Wake on LAN, PXE supported |
| Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
|

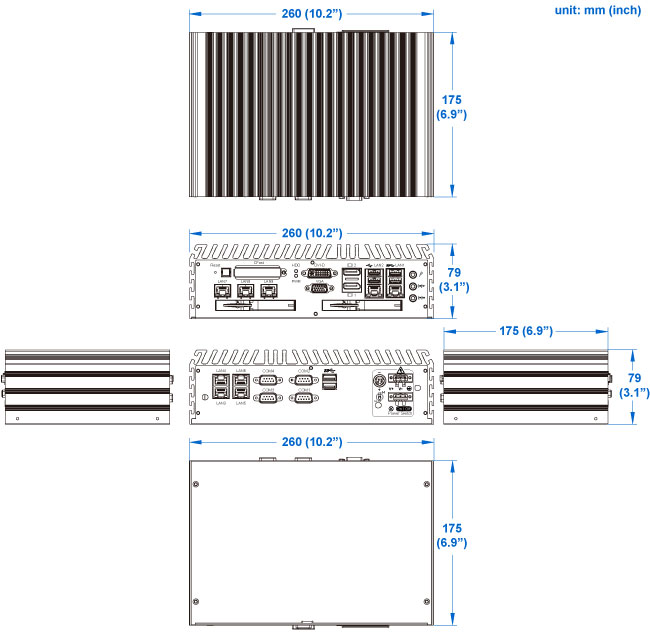

| 260mm x 175mm x 79mm (10.2" x 6.9" x 3.1") |
| |
| - Wallmount by mounting bracket - 2U Rackmount (Optional) |
|
| -25°C to 70°C (-13°F to 158°F) |
| -40°C to 85°C (-40°F to 185°F) |
| 10% to 95% Humidity, non-condensing |
| |
| - SSD : 5Grms, 5Hz to 500Hz, 3 Axis |
| - SSD : 50G @ wallmount, Half-sine, 11ms |
| E13, CE, FCC, EN50155, EN50121-3-2, VMware Ready |
