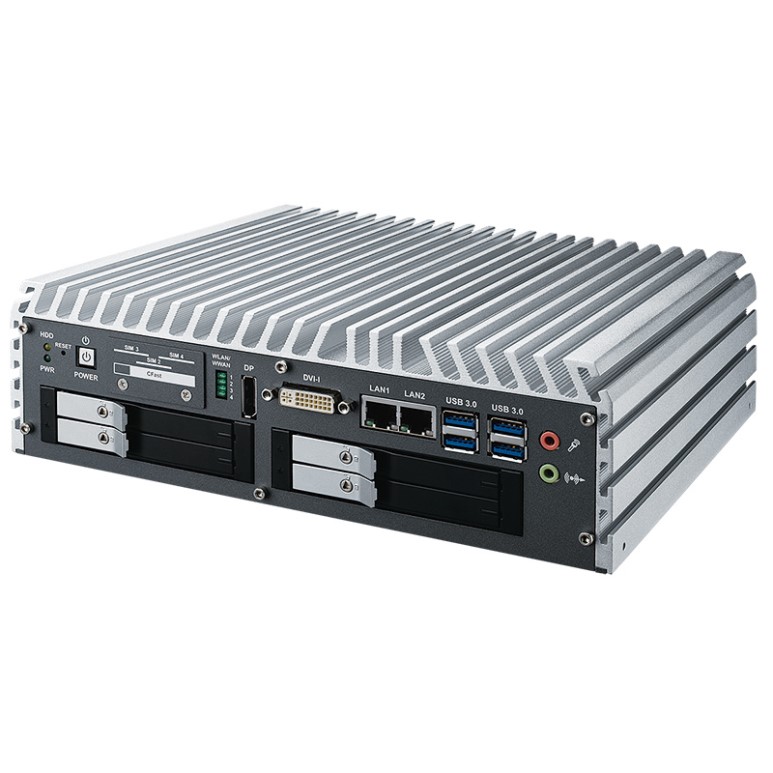

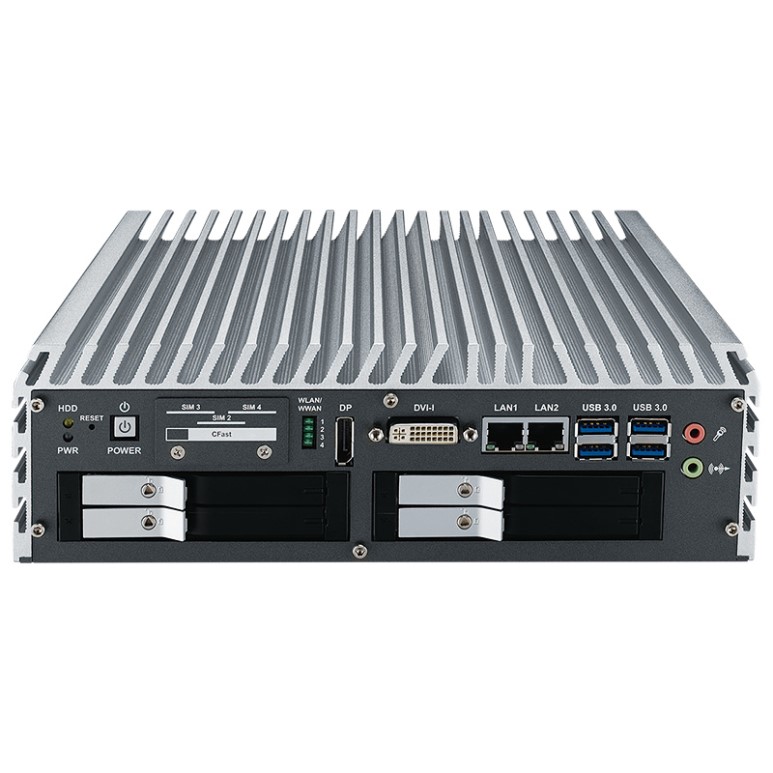

IVH-7700-QRDM(M12)/QuadCore Intel Core i7/i5/i3 Fanless Embedded System

산업용보드 > 1U Rackmount

제품문의 02-3016-2464 http://www.wjubc.co.kr

Features

Quad Core Intel® Core™ i7/ i5/ i3 Processor

Fanless, -25°C to 70°C Operating Temperature

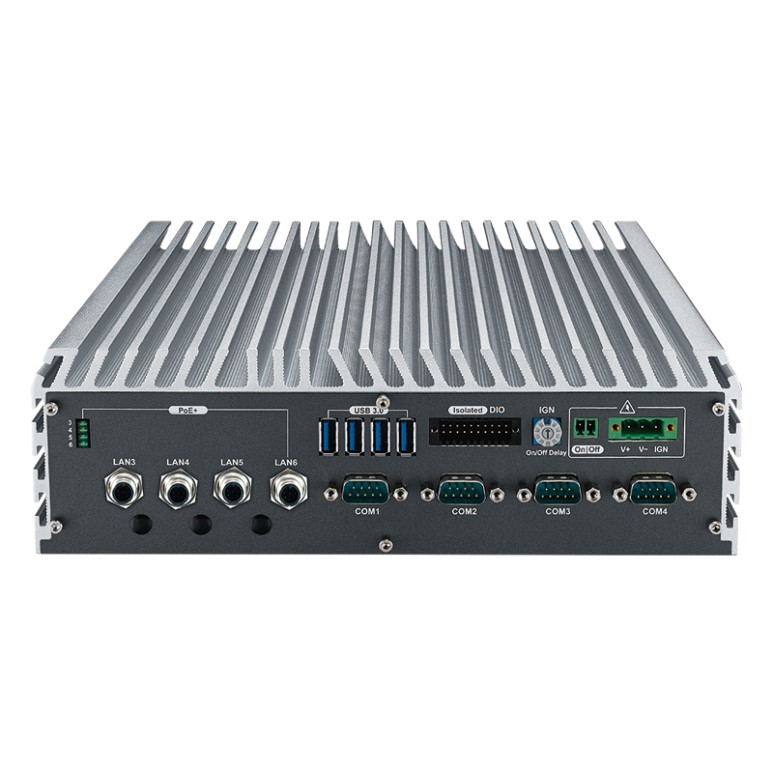

6 GigE LAN with 4 M12 IEEE 802.3at PoE+ compliant

4 Mini PCIe Slot

4 SIM Card Socket (3 External)

Supports 3G/ 4G/ LTE/ WiFi/ GPRS/ UMTS

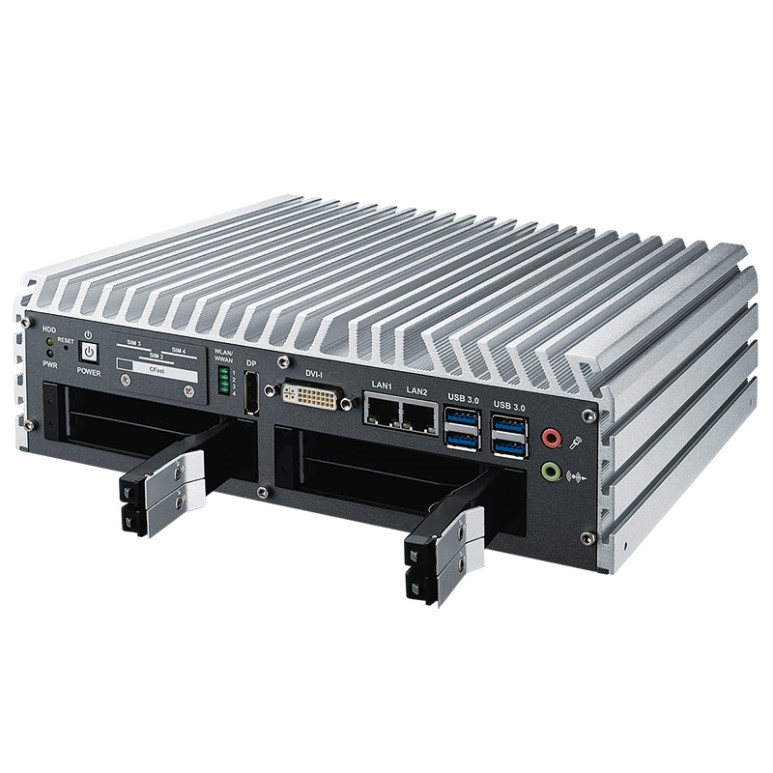

4 Front-access 2.5" SSD/ HDD Tray

4 USB 3.0 with Independent controllers

16 Isolated DIO, 16 GPIO

Configurable Ignition Power Control

Optional supports M12 connectors

6V to 78V DC-in, 200V Surge Protection

UPS supported (Optional)

Specifications

System
Processor	Quad Core 3rd Gen Intel® Core™ i7/ i5/ i3 Processor
Chipset	Intel® QM77
BIOS	AMI
SIO	IT8783
Memory	- DDR3 1066/1333/1600 MHz or DDR3L 1066/ 1333MHz - Up to 16GB - 2 204-pin SO-DIMM Socket
I/O Interface
Serial	2 COM RS-232, 2 COM RS-232/422/485
USB	- Front : 4 USB 3.0 - Rear : 4 USB 3.0 (4 Independent Controller) - 1 Internal USB 2.0 (Right Angle USB Connector) - 2 Internal USB 2.0 (6-pin JST)
Isolated DIO	16 Isolated DIO (8 DI, 8 DO, up to 78V Input)
LED	Power, HDD, Wireless, PoE
SIM Card	4 SIM Card Socket (3 External, 1 Internal)
GPIO	16 GPIO
Expansion
Mini PCIe	- 1 Mini PCIe Socket for PCIe/ USB/ Internal SIM Card/ Optional mSATA - 3 Mini PCIe Socket for PCIe/ USB/ External SIM Card
Graphics
Chipset	Intel® HD 4000
Display Memory	Shared Memory, up to 1.7GB
Interface	- DVI-I : Up to 1920 x 1200 - DisplayPort : Up to 2560 x 1600 - LVDS : Dual channel 24-bit, up to 1920 x 1200
Storage
SATA	- 2 SATA III (6Gbps) - 2 SATA II (3Gbps)
mSATA	1 SATA II (3Gbps)
Expansion	- CFast Slot, Push-in/ Push-out Ejector - 4 Front-access SSD/HDD Tray
Audio
Audio Codec	Realtek ALC892, 5.1 Channel HD Audio
Audio Interface	1 Mic-in, 1 Line-out
Ethernet
LAN 1	Intel® 82579LM GigE LAN supports iAMT 8.0
LAN 2	Intel® I210 GigE LAN
PoE (M12)
LAN 3	GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210, M12 Connector
LAN 4	GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210, M12 Connector
LAN 5	GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210, M12 Connector
LAN 6	GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210, M12 Connector
Power
Input Voltage	DC-in 6V to 78V
Power Input	- 3-pin Terminal Block : V+, V-, IGN - DC-in M12 Connector (Optional)
Ignition Control	16 Mode
Remote Switch	2-pin Terminal Block
Surge Protection	Up to 200V/1ms Transient Power
UPS	Supported (Optional)
Others
TPM	Trusted Platform Module, Infineon SLB9635, LPC interface (Optional)
Watchdog Timer	Reset : 1 to 255 sec./min. per step
Smart Management	Wake on LAN, PXE supported
HW Monitor	Monitoring temperature, voltages. Auto throttling control when CPU overheats
GPS	Onboard GPS Module (Optional)
Software Support
Microsoft	Windows 8, Windows 7, Windows XP
Linux	Fedora 13, Ubuntu 10.04 LTS, or Linux Kernel 3.0 above
Mechanical
Dimension (W x L x H)	260mm x 215mm x 79mm (10.2" x 8.5" x 3.1")
Weight	4.2 kg (9.26 lb)
Mounting	- Wallmount by mounting bracket - 2U Rackmount (Optional)
Environment
Operating Temperature	-25°C to 70°C (-13°F to 158°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	5% to 95% humidity, non-condensing
Relative Humidity	95% at 70°C
Shock	- IEC 60068-2-27 - SSD : 50G @ wallmount, Half-sine, 11ms
Vibration	- IEC 60068-2-64 - SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC	CE, FCC, EN50155, EN50121-3-2
