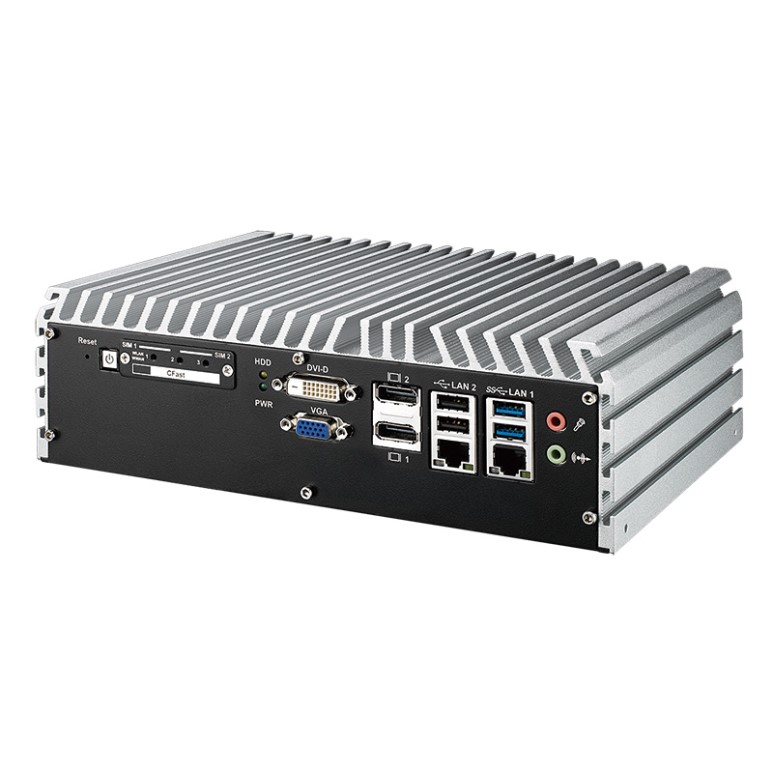

ECS-8000-2G/Quad Core 5th Gen Intel® Core™ i7 Mobile Processor (Broadwell-H) Fanless Embedded System

산업용보드 > 1U Rackmount

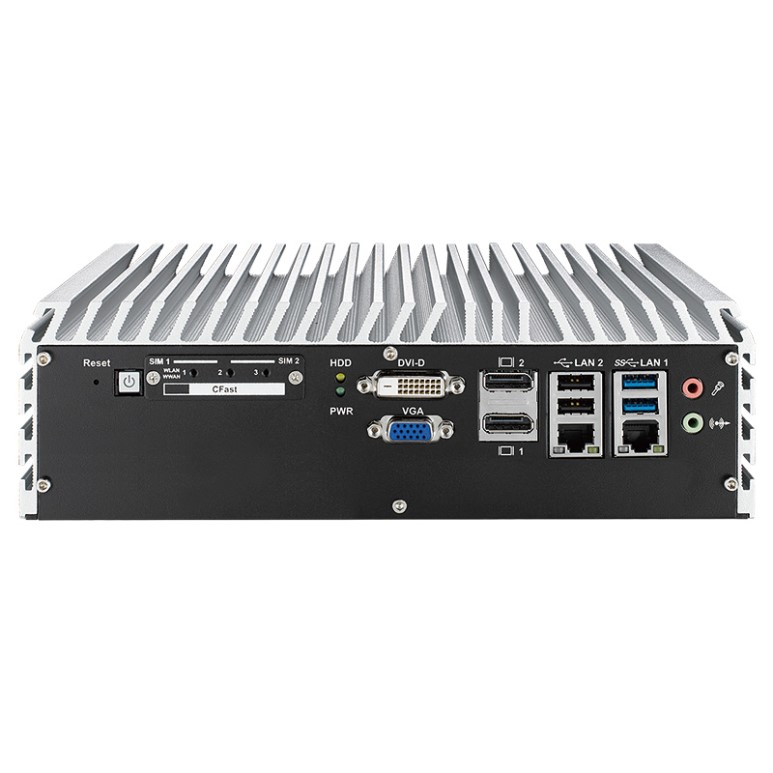

Features

Quad Core 5th Generation Intel® Core™ i7 Mobile Processor (Broadwell-H)

VGA/ DVI-D/ DisplayPort/ eDP Interface, up to 3 independent 4K displays

Fanless, -25°C to 70°C Operating Temperature

2 Independent Gigabit LAN

3 Mini PCIe Socket for 3G/ 4G/ LTE/ WiFi/ GPRS/ UMTS

2 External SIM Card Socket

2 Internal 2.5" SSD/ HDD

1 Front-access CFast Socket

32 GPIO

6V to 36V DC-in, 80V Surge Protection

Configurable Ignition Power Control

Specifications

System
Processor	Quad Core 5th Generation Intel® Core™ i7-5850EQ/ i7-5700EQ (Broadwell-H)
Chipset	Intel® QM87
BIOS	AMI
SIO	IT8786E
Memory	2 DDR3L 1600MHz SO-DIMM, up to 32GB

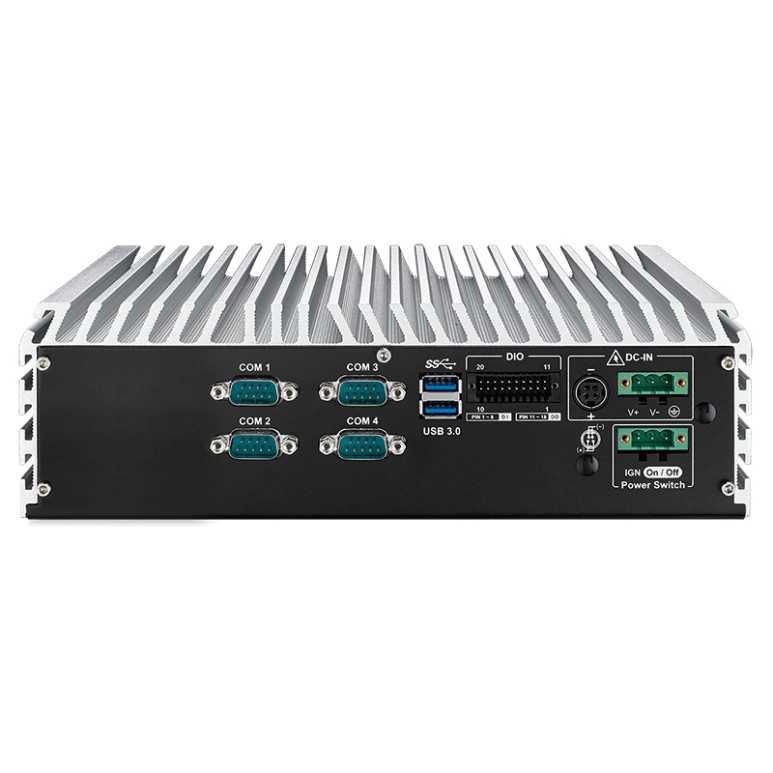

I/O Interface
Serial	4 COM RS-232/ 422/ 485
USB	- 4 USB 3.0 - 3 USB 2.0 (2 External, 1 Internal)
GPIO	32 GPIO (16 Internal)
LED	Power, HDD, PoE
SIM Card	2 SIM Card Socket (External)
Expansion
Mini PCIe	3 Mini PCIe Socket : - 2 Full-size for PCIe/ USB/ External SIM Card/ mSATA - 1 Half-size for PCIe/ USB
SUMIT A, B	2 SUMIT Slot (Optional)
Graphics
Graphics Processor	- Intel® Iris™ Pro Graphics 6200 (5850EQ) - Intel® HD Graphics 5600 (5700EQ)
Interface	- VGA : Up to 1920 x 1200 @ 60Hz - DVI-D : Up to 1920 x 1080 @ 60Hz - DisplayPort 1 : Up to 4096 x 2304 @ 60Hz - DisplayPort 2 : Up to 4096 x 2304 @ 60Hz - eDP : Up to 4096 x 2304 @ 60Hz
Storage
SATA	2 SATA III (6Gbps)
mSATA	2 SATA III (Mini PCIe Type, 6Gbps)
SATA DOM	1 SATA II (3Gbps)
Storage Device	- 1 CFast Socket, Push-in/ Push-out Ejector - 2 2.5" SSD/ HDD Bracket (Internal)
Audio
Audio Codec	Realtek ALC892, 5.1 Channel HD Audio
Audio Interface	1 Mic-in, 1 Line-out
Ethernet
LAN 1	Intel® I218 Gigabit LAN supports iAMT 9.5
LAN 2	Intel® I210 Gigabit LAN
Power
Power Input	6V to 36V, DC-in
Power Interface	- 3-pin Terminal Block : V+, V-, Frame Ground - Mini-DIN 4-pin
Ignition Control	16 Mode (Internal)
Remote Switch	3-pin Terminal Block : On, Off, IGN
Surge Protection	Up to 80V/1ms Transient Power
Others
TPM	Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer	Reset : 1 to 255 sec./min. per step
Smart Management	Wake on LAN, PXE supported
HW Monitor	Monitoring temperature, voltages. Auto throttling control when CPU overheats
Software Support
OS	Windows 10, Windows 8, Windows 7, Linux
Mechanical
Dimension (W x L x H)	260mm x 175mm x 79mm (10.2” x 6.9” x 3.1”)
Weight	2.8 kg (6.2 lb)
Mounting	- Wallmount by mounting bracket - 2U Rackmount (Optional)
Environment
Operating Temperature	-25°C to 70°C (-13°F to 158°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	5% to 95% Humidity, non-condensing
Relative Humidity	95% at 70°C
Shock	- IEC 60068-2-27 - SSD : 50G @ wallmount, Half-sine, 11ms
Vibration	- IEC 60068-2-64 - SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC	CE, FCC, EN 50155, EN 50121-3-2
