| IVH-9000/Quad Core 6th Generation Intel® Xeon®/Core™ i7/i5/i3 In-Vehicle Fanless Embedded System | 산업용보드 > 1U Rackmount | 0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

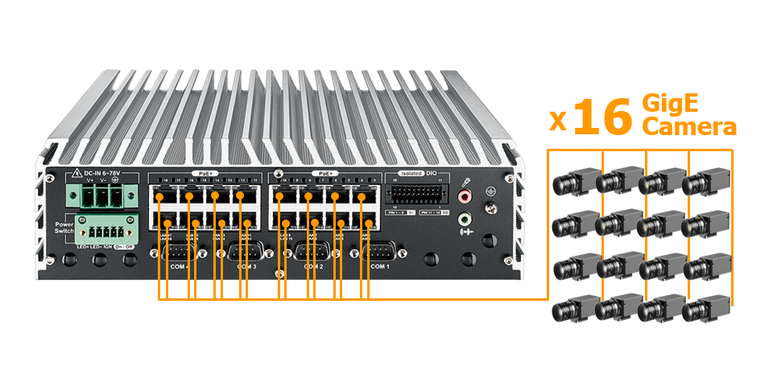

Features Quad Core 6th Generation Intel® Xeon®/Core™ i7/i5/i3 Processor (Skylake-H) with CM236 Chipset supports up to 4K displays 2 DDR4 2133MHz Memory, up to 32GB (ECC/Non-ECC) Fanless, -25°C to 70°C Operating Temperature 18 Gigabit LAN with 16 IEEE 802.3at PoE+ compliant 4 Mini PCIe, 4 SIM Card Socket (3 External) 4 Front-access 2.5" SSD Tray, 5 USB Supports 3G/4G/LTE/WiFi/GPRS/UMTS 16 Isolated DIO, 16 GPIO Configurable Ignition Power Control 6V to 78V DC-in, 200V Surge Protection UPS Supported (Optional) ? Feature Highlights 16-port PoE+ IEEE 802.3at PoE+ standard compliant Supports 25.5W/48V each port Per-port Power On/Off Control Supports PoE management
Trusted Data Security 4 Front-access 2.5" SSD/HDD trays, up to 8TB capacity Supports RAID 0, 1, 5, 10 data security 6 SATA III support up to 6Gbps data rate

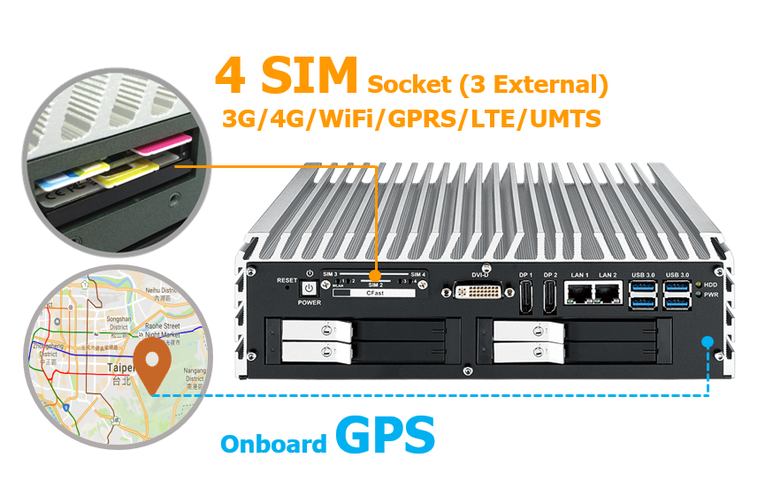

Diversity of Expansions 4 SIM sockets support seamless data communication Supports WiFi/Bluetooth/CAN Bus Onboard GPS supports Accelerometer, Gyroscope & Odometer

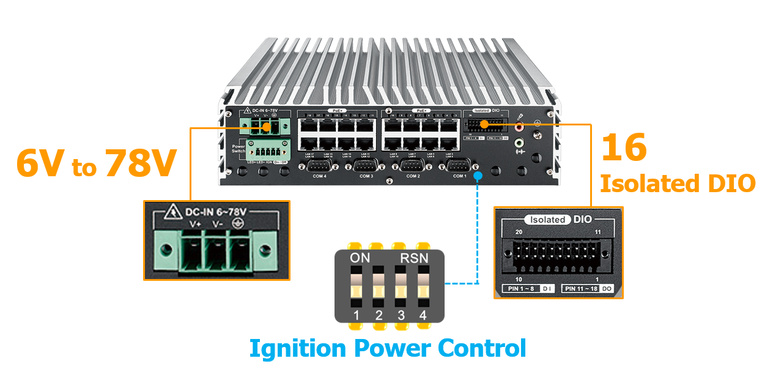

Secure Power Protection 6V to 78V extra-wide range DC power input 16-mode Configurable Ignition Power Control 16 Isolated DIO 200V Surge Protection
Specifications
