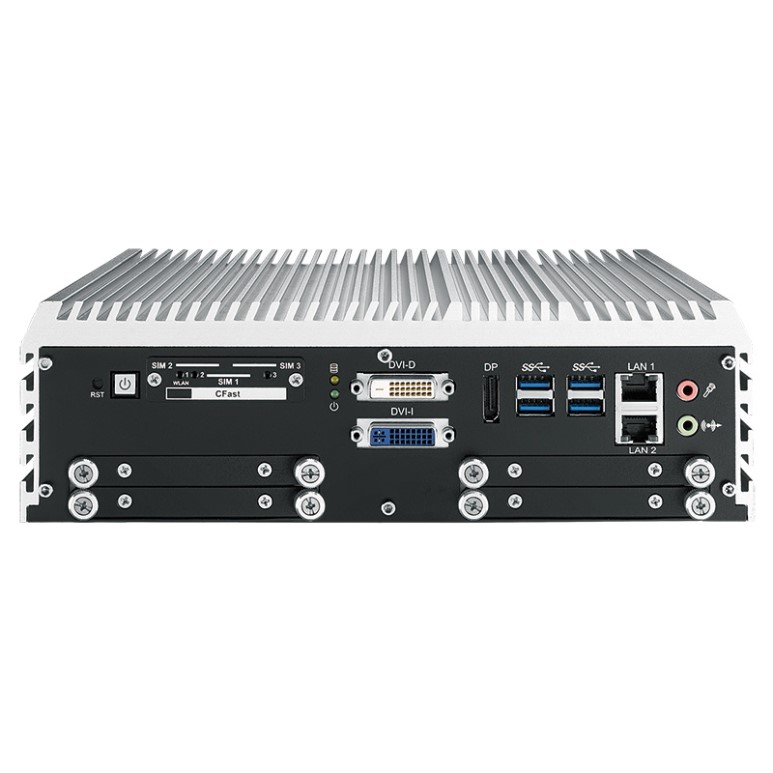

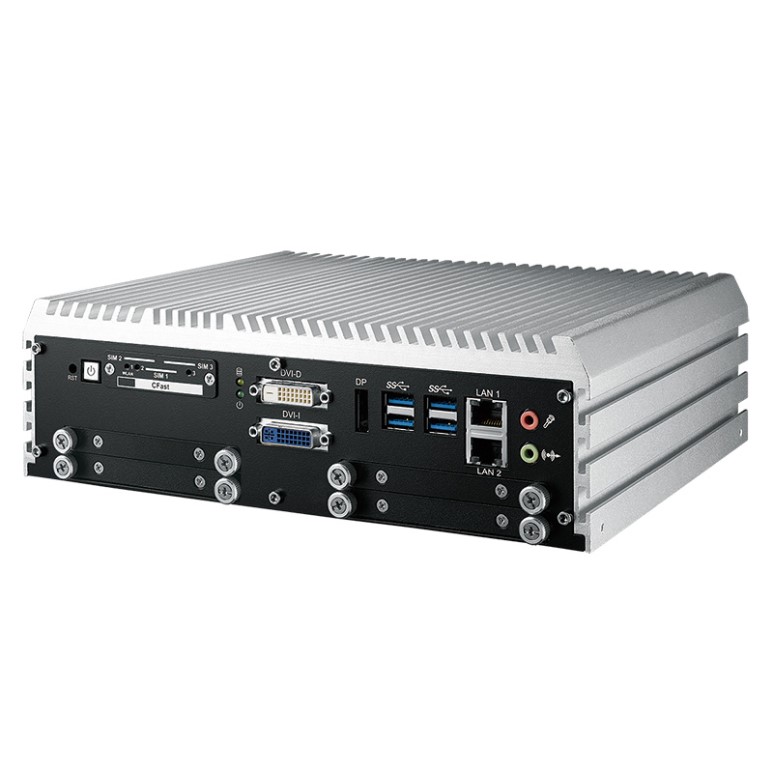

IVH-9200(M12)/QuadCore Intel Xeon/Corei7/i5/i3Processor(Kaby/Skylake)Vehicle Fanless Embedded System

산업용보드 > 1U Rackmount

Workstation-Grade Leading Performance

Intel® Xeon® processor for workstation

Intel® C236 chipset for workstation

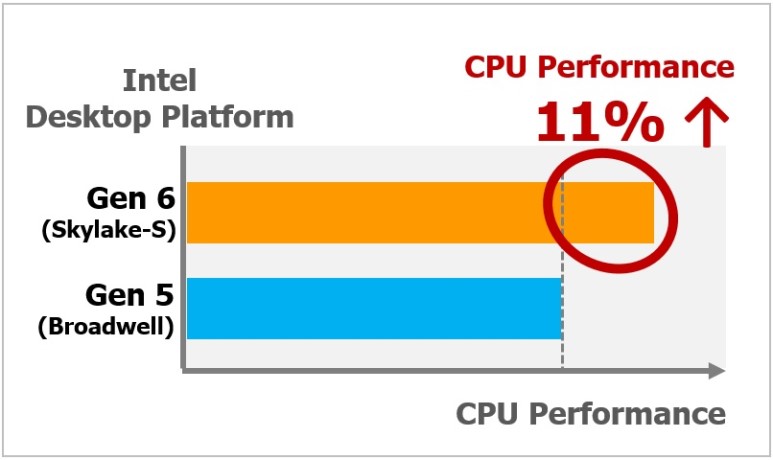

Max 11% CPU performance improved, 22% lower CPU power consumption

All-in-one Integration

4 2.5" Front-access SSD trays, up to 8TB capacity

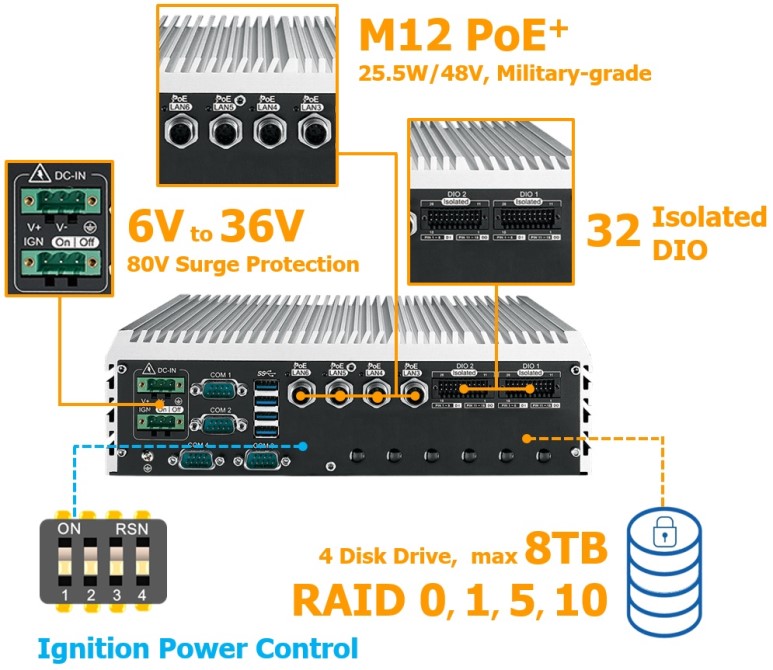

6 GigE LAN w/ 4 IEEE 802.3at (25.5W/48V) PoE+, Power On/Off Control

3 Mini PCI for PCIe/ USB 3.0/ SIM/ mSATA

Rugged Reliability

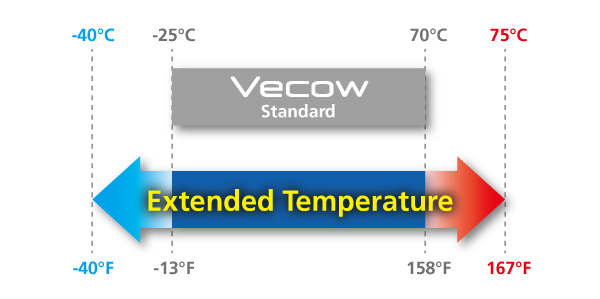

-40°C to 75°C Extended Temperature

All-in-one, fanless

M12 Connections

EN50155, EN50121-3-2

Smart Circuit Protection

Specifications

System
Processor	Quad Core Intel® Xeon®/Core™ i7/i5/i3 Processor (Kaby Lake-S/Skylake-S)
Chipset	Intel® C236
BIOS	AMI
SIO	IT8786E
Memory	2 DDR4 2400/2133 MHz SO-DIMM, up to 64GB (ECC/Non-ECC)

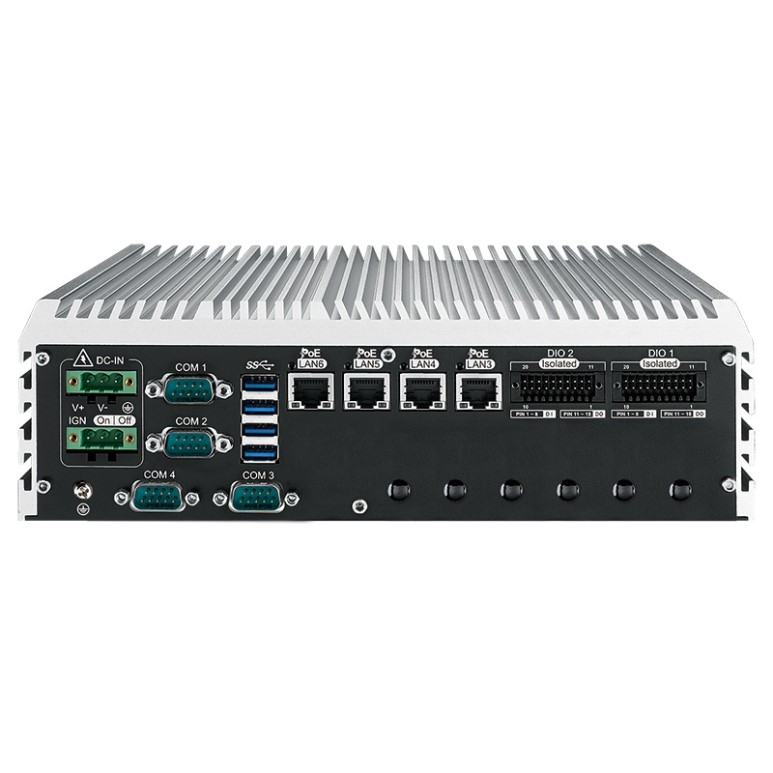

I/O Interface
Serial	4 COM RS-232/422/485 (ESD 8KV)
USB	- 8 USB 3.0 (External) - 1 USB 2.0 (Internal)
Isolated DIO	32 Isolated DIO : 16 DI, 16 DO
LED	Power, HDD, Wireless, PoE
SIM Card	3 SIM Card Socket (External)
CAN Bus	2-port CAN 2.0 A/B
Expansion
Mini PCIe	3 Full-size for PCIe/USB/External SIM Card/mSATA
Graphics
Graphics Processor	Intel® HD Graphics P630/630/P530/530
Interface	- DVI-I : Up to 1920 x1200 @ 60 Hz - DVI-D : Up to 1920 x1200 @ 60Hz - DisplayPort : Up to 4096 x 2304 @ 60Hz
Storage
SATA	4 SATA III (6Gbps) support S/W RAID 0, 1, 5, 10
mSATA	3 SATA III (Mini PCIe Type, 6Gbps)
Storage Device	- 1 CFast Socket, Push-in/Push-out Ejector - 4 Front-access 2.5" SSD/HDD Tray
Audio
Audio Codec	Realtek ALC892, 5.1 Channel HD Audio
Audio Interface	1 Mic-in, 1 Line-out
Ethernet
LAN 1	Intel® I219LM GigE LAN supports iAMT 11.0
LAN 2	Intel® I210 GigE LAN
PoE (M12)
LAN 3	GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 4	GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 5	GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 6	GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210 * 4 M12 Connectors (IVH-9200M)
Power
Power Input	6V to 36V, DC-in
Power Interface	3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control	16 Mode (Internal)
Remote Switch	3-pin Terminal Block
Surge Protection	Up to 80V/1ms Transient Power
Others
TPM	Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer	Reset : 1 to 255 sec./min. per step
Smart Management	Wake on LAN, PXE supported
HW Monitor	Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Software Support
OS	Windows 10, Windows 8.1, Windows 7, Linux
Mechanical
Dimension (W x L x H)	260mm x 215mm x 79mm (10.2” x 8.5” x 3.1”)
Weight	4.5 kg (9.92 lb)
Mounting	- Wallmount by mounting bracket - DIN Rail Mount (Optional) - 2U Rackmount (Optional)
Environment
Operating Temperature	35W TDP CPU : E3-1268L v5, i7-6700TE, i5-6500TE, i3-6100TE : 40°C to 75°C (-40°F to 167°F) 65W TDP CPU : i7 6700, i5-6500, i3-6100 : -40°C to 55°C (-40°F to 131°F) 80W TDP CPU : E3-1275 v5, E3-1225 v5 : -40°C to 50°C (-40°F to 122°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	5% to 95% Humidity, non-condensing
Relative Humidity	95% at 75°C
Shock	- IEC 60068-2-27 - SSD : 50G @ wallmount, Half-sine, 11ms
Vibration	- IEC 60068-2-64 - SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC	CE, FCC, EN50155, EN50121-3-2
