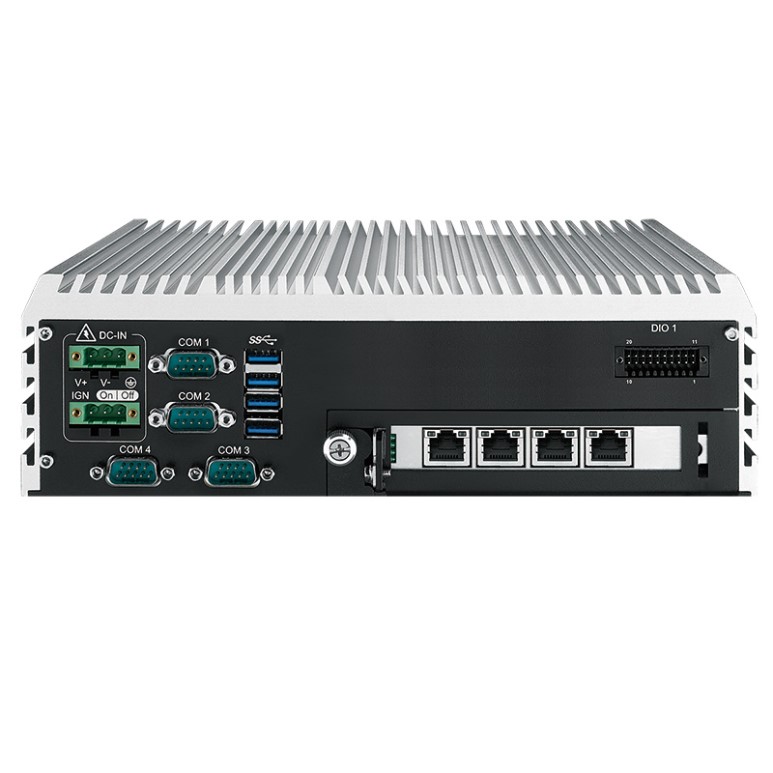

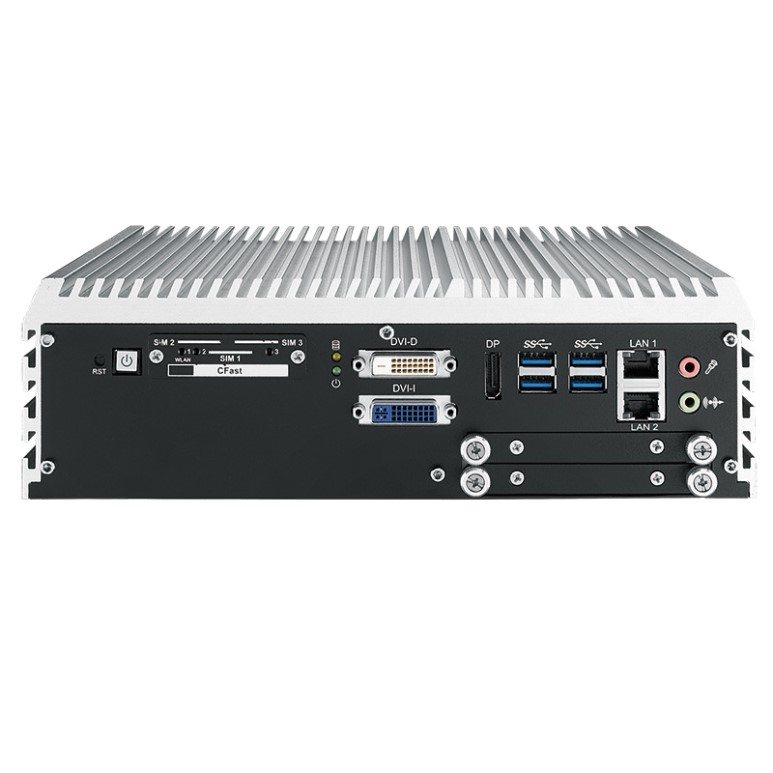

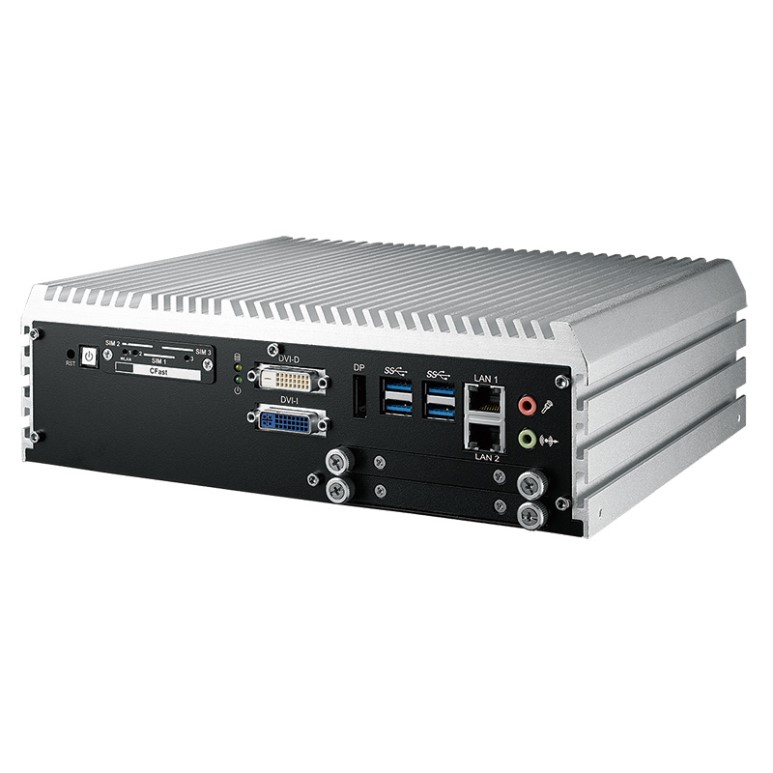

ECS-9160/Quad Core Intel® Xeon®/Core™ i7/i5/i3 (Skylake/Kaby Lake) Fanless LAN Switch System

산업용보드 > 1U Rackmount

제품문의 02-3016-2464 http://www.wjubc.co.kr

Features

LGA 1151 Socket supports Quad Core Intel® Xeon®/Core™ i7/i5/i3 Processor (Kaby Lake-S/Skylake-S) with C236 Chipset

Fanless, -40°C to 75°C Operating Temperature

4 GigE LAN Switch with 4 IEEE 802.3at PoE+

Supports hardware LAN Bypass mode

2 Independent GigE LAN, iAMT 11.0 supported

3 Front-access SIM Card Socket for 3G/4G/LTE/WiFi/GPRS/UMTS

Expansion : 3 Mini PCIe/mSATA, 1 M.2

Storage : 2 2.5" SSD Tray, 1 CFast, 2 SATA III

16 GPIO, 8 USB 3.0, 4 COM

6V to 36V DC-in with 80V Surge Protection

Configurable Ignition Power Control

DVI-I, DVI-D and DisplayPort display interface, up to 4K displays

Specifications

System
Processor	Quad Core Intel® Xeon®/Core™ i7/i5/i3 Processor (Kaby Lake-S/Skylake-S)
Chipset	Intel® C236
BIOS	AMI
SIO	IT8786E
Memory	2 DDR4 2400/2133 MHz SO-DIMM, up to 64GB
I/O Interface
Serial	4 COM RS-232/422/485
USB	- 8 USB 3.0 (External) - 1 USB 2.0 (Internal)
DIO	16 GPIO
LED	Power, HDD, Wireless, PoE
SIM Card	3 SIM Card Socket (External)
Expansion
Mini PCIe	3 Full-size for PCIe/USB/External SIM Card/mSATA
M.2	1 M.2 Socket (Key ID : M)
Graphics
Graphics Processor	Intel® HD Graphics P630/630/P530/530
Interface	- DVI-I : Up to 1920 x1200 @ 60 Hz - DVI-D : Up to 1920 x1200 @ 60Hz - DisplayPort : Up to 4096 x 2304 @ 60Hz
Storage
SATA	2 SATA III (6Gbps) support S/W RAID 0, 1
mSATA	3 SATA III (Mini PCIe Type, 6Gbps)
Storage Device	- 1 CFast Socket, Push-in/Push-out Ejector - 2 Front-access 2.5" SSD/HDD Tray
Audio
Audio Codec	Realtek ALC892, 5.1 Channel HD Audio
Audio Interface	1 Mic-in, 1 Line-out
Ethernet
LAN 1	Intel® I219LM GigE LAN supports iAMT 11.0
LAN 2	Intel® I210 GigE LAN
LAN Switch
LAN 3	GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210, supporting LAN bypass mode
LAN 4	GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210, supporting LAN bypass mode
LAN 5	GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210, supporting LAN bypass mode
LAN 6	GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210, supporting LAN bypass mode
Power
Power Input	6V to 36V, DC-in
Power Interface	3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control	16 Mode (Internal)
Remote Switch	3-pin Terminal Block
Surge Protection	Up to 80V/1ms Transient Power
Others
TPM	Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer	Reset : 1 to 255 sec./min. per step
Smart Management	Wake on LAN, PXE supported
HW Monitor	Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Software Support
OS	Windows 10, Windows 8.1, Windows 7, Linux
Mechanical
Dimension (W x L x H)	260mm x 215mm x 79mm (10.2” x 8.5” x 3.1”)
Weight	4.2 kg (9.26 lb)
Mounting	- Wallmount by mounting bracket - DIN Rail Mount - 2U Rackmount (Optional)
Environment
Operating Temperature	35W TDP CPU : - Core™ i7, i5, i3 : -40°C to 75°C (-40°F to 167°F) - Xeon® E3-1268L v5 : -40°C to 70°C (-40°F to 158°F) 65W TDP CPU : Core™ i7, i5, i3 : -40°C to 55°C (-40°F to 131°F) 80W TDP CPU : Xeon® E3-1275 v6, E3-1275 v5, E3-1225 v5 : -40°C to 45°C (-40°F to 113°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	5% to 95% Humidity, non-condensing
Relative Humidity	95% at 75°C
Shock	- IEC 60068-2-27 - SSD : 50G @ wallmount, Half-sine, 11ms
Vibration	- IEC 60068-2-64 - SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC	E13, CE, FCC, EN50155, EN50121-3-2
