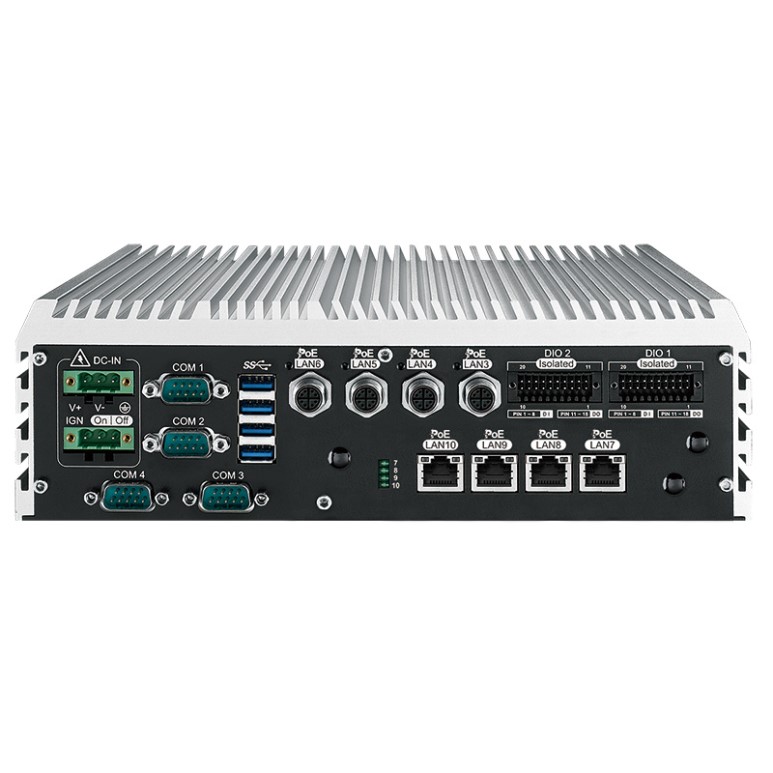

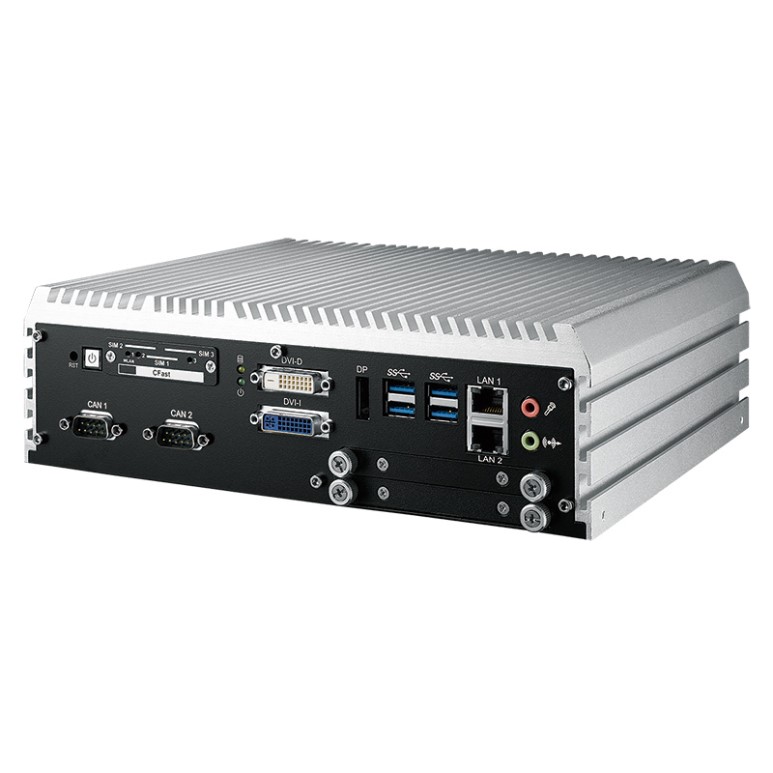

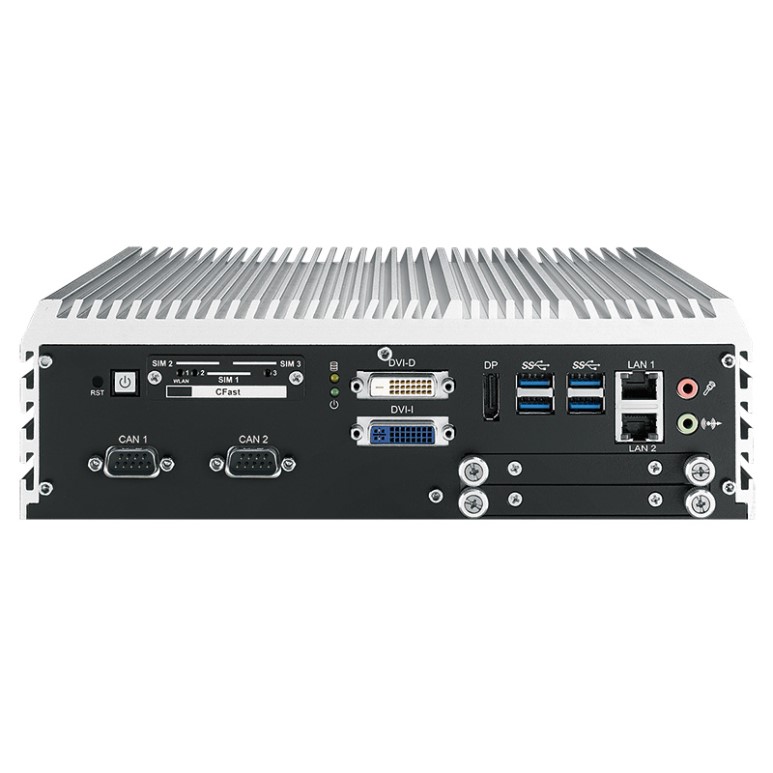

ECS-9200(M12)/Workstation-grade Intel® Xeon/Core i7/i5/i3(Kaby Lake/Skylake)Fanless Embedded System

산업용보드 > 1U Rackmount

제품문의 02-3016-2464 http://www.wjubc.co.kr

Features

LGA 1151 Socket supports Quad Core Intel® Xeon®/Core™ i7/i5/i3 Processor (Kaby Lake-S/Skylake-S) with C236 Chipset

2 DDR4 2133MHz SO-DIMM, up to 32GB (ECC/Non-ECC)

Fanless, -40°C to 75°C Operating Temperature

10 Independent GigE LAN support up to 8 M12 IEEE 802.3at PoE+, dual LAN Bypass, iAMT 11.0

Rugged X-coded M12 interface supports up to 10Gbps data transmission

2 Front-access 2.5" SSD/HDD Tray support up to 4TB capacity & RAID 0, 1

3 Front-access SIM Card Socket for 3G/4G/LTE/WiFi/GPRS/UMTS

Storage : 2 SSD Tray, 1 CFast, 2 SATA III

2-port CAN Bus, 3 Mini PCIe/mSATA, 1 M.2

DVI-I, DVI-D and DisplayPort display interfaces, up to 4K displays

32 Isolated DIO, 8 USB 3.0, 4 COM

6V to 36V DC-in with 80V Surge Protection

Configurable Ignition Power Control

Specifications

System
Processor	Quad Core Intel® Xeon®/Core™ i7/i5/i3 Processor (Skylake-S/Kaby Lake-S)
Chipset	Intel® C236
BIOS	AMI
SIO	IT8786E
Memory	2 DDR4 2400MHz SO-DIMM, up to 64GB (ECC/Non-ECC)
I/O Interface
Serial	4 COM RS-232/422/485 (ESD 8KV)
USB	- 8 USB 3.0 (External) - 1 USB 2.0 (Internal)
Isolated DIO	32 Isolated DIO : 16 DI, 16 DO
LED	Power, HDD, Wireless, PoE
SIM Card	3 External SIM Card Socket (1 for CAN Bus, Optional)
CAN Bus	2-port CAN Bus 2.0 A/B
Expansion
Mini PCIe	3 Full-size for PCIe/USB/External SIM Card/mSATA
M.2	1 M.2 Socket (Key ID : M)
Graphics
Graphics Processor	Intel® HD Graphics P630/630/P530/530
Interface	- DVI-I : Up to 1920 x1200 @ 60 Hz - DVI-D : Up to 1920 x1200 @ 60Hz - DisplayPort : Up to 4096 x 2304 @ 60Hz
Storage
SATA	2 SATA III (6Gbps) support S/W RAID 0, 1
mSATA	3 SATA III (Mini PCIe Type, 6Gbps)
Storage Device	- 1 CFast Socket, Push-in/Push-out Ejector - 2 Front-access 2.5" SSD/HDD Tray
Audio
Audio Codec	Realtek ALC892, 5.1 Channel HD Audio
Audio Interface	1 Mic-in, 1 Line-out
Ethernet
LAN 1	Intel® I219LM GigE LAN supports iAMT 11.0
LAN 2	Intel® I210 GigE LAN
PoE (X-coded/A-coded M12)
LAN 3	GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210, X-coded/A-coded M12 Connector
LAN 4	GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210, X-coded/A-coded M12 Connector
LAN 5	GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210, X-coded/A-coded M12 Connector
LAN 6	GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210, X-coded/A-coded M12 Connector
PoE/LAN Bypass (M12)
LAN 7	ECS-9208M : GigE IEEE 802.3at (25.5W/48V) PoE+ with Power On/Off Control/LAN Bypass mode by Intel® I350, A-coded M12 Connector ECS-9244/9280 : GigE IEEE 802.3at (25.5W/48V) PoE+ with Power On/Off Control/LAN Bypass mode by Intel® I350
LAN 8	ECS-9208M : GigE IEEE 802.3at (25.5W/48V) PoE+ with Power On/Off Control/LAN Bypass mode by Intel® I350, A-coded M12 Connector ECS-9244/9280 : GigE IEEE 802.3at (25.5W/48V) PoE+ with Power On/Off Control/LAN Bypass mode by Intel® I350
LAN 9	ECS-9208M : GigE IEEE 802.3at (25.5W/48V) PoE+ with Power On/Off Control/LAN Bypass mode by Intel® I350, A-coded M12 Connector ECS-9244/9280 : GigE IEEE 802.3at (25.5W/48V) PoE+ with Power On/Off Control/LAN Bypass mode by Intel® I350
LAN 10	ECS-9208M : GigE IEEE 802.3at (25.5W/48V) PoE+ with Power On/Off Control/LAN Bypass mode by Intel® I350, A-coded M12 Connector ECS-9244/9280 : GigE IEEE 802.3at (25.5W/48V) PoE+ with Power On/Off Control/LAN Bypass mode by Intel® I350
Power
Power Input	6V to 36V, DC-in
Power Interface	3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control	16 Mode (Internal)
Remote Switch	3-pin Terminal Block
Surge Protection	Up to 80V/1ms Transient Power
Others
TPM	Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer	Reset : 1 to 255 sec./min. per step
Smart Management	Wake on LAN, PXE supported
HW Monitor	Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Software Support
OS	Windows 10, Windows 8.1, Windows 7, Linux
Mechanical
Dimension (W x L x H)	260mm x 215mm x 79mm (10.2” x 8.5” x 3.1”)
Weight	4.3 kg (9.48 lb)
Mounting	- Wallmount by mounting bracket - DIN Rail Mount (Optional) - 2U Rackmount (Optional)
Environment
Operating Temperature	35W TDP CPU : - Core™ i7, i5, i3 : -40°C to 75°C (-40°F to 167°F) - Xeon® E3-1268L v5 : -40°C to 70°C (-40°F to 158°F) 65W TDP CPU : - Core™ i7, i5, i3 : -40°C to 55°C (-40°F to 131°F) 80W TDP CPU : - Xeon® E3-1275 v5, E3-1225 v5 : -40°C to 45°C (-40°F to 113°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	5% to 95% Humidity, non-condensing
Relative Humidity	95% at 75°C
Shock	- IEC 60068-2-27 - SSD : 50G @ wallmount, Half-sine, 11ms
Vibration	- IEC 60068-2-64 - SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC	E13, CE, FCC, EN50155, EN50121-3-2
