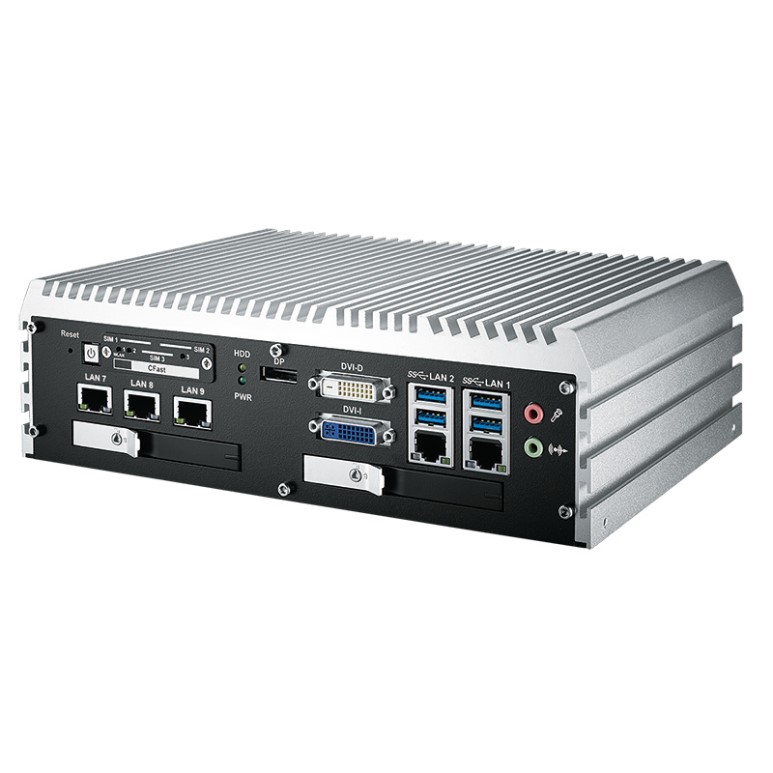

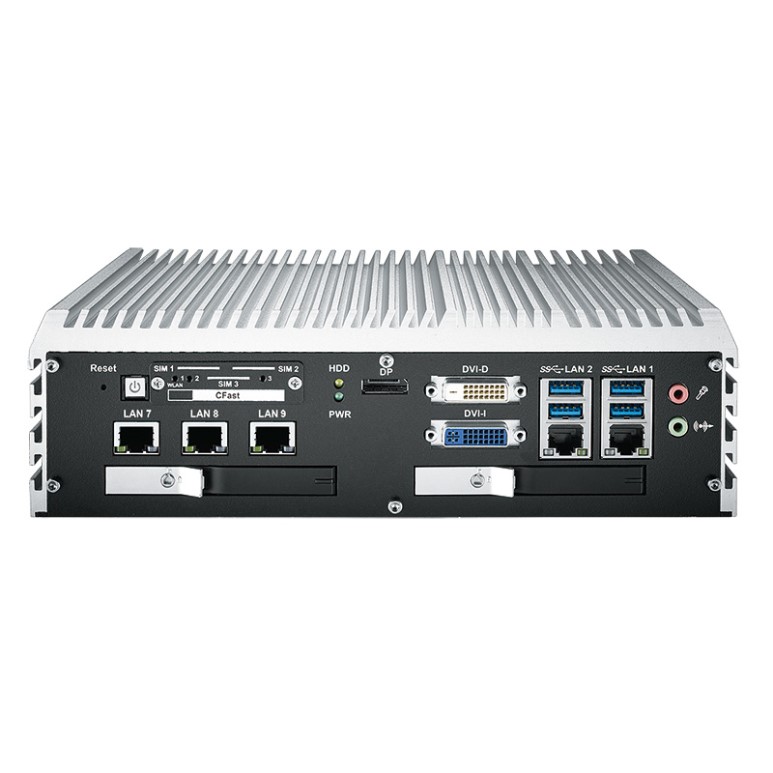

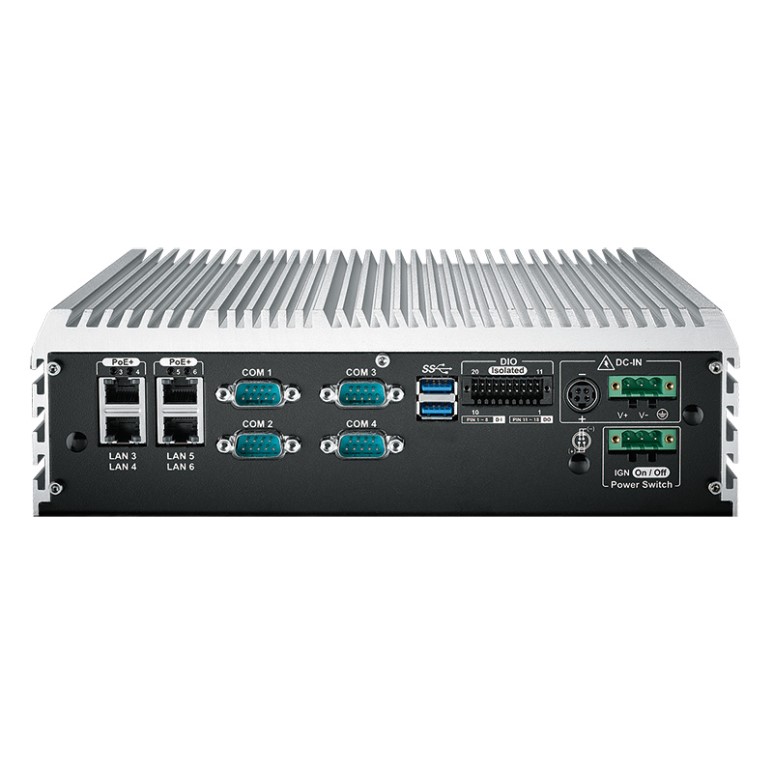

ECS-9000/Workstation-grade Intel® Xeon®/Core™ i7/i5/i3 (Kaby Lake/Skylake) Fanless Embedded System

산업용보드 > 1U Rackmount

제품문의 02-3016-2464 http://www.wjubc.co.kr

Features

LGA 1151 Socket supports 7th Generation Intel® Xeon®/Core™ i7/i5/i3 processor (Kaby Lake-S/Skylake-S)

Fanless, -40°C to 75°C Operating Temperature

9 Independent GigE LAN with 4 IEEE 802.3at PoE+, iAMT 11.0 supported

3 Front-access SIM Card Socket for 3G/4G/LTE/WiFi/GPRS/UMTS

16 Isolated DIO

2 Front-access 2.5" SSD/HDD Tray

6V to 36V DC-in with 80V Surge Protection

Configurable Ignition Power Control

6 USB 3.0, 4 COM, 3 Mini PCIe

Onboard DVI-I, DVI-D and DisplayPort display interface, up to 4K display

Optional supports 2-port SFP LAN/10 GigE RJ45/Fiber LAN

Specifications

System
Processor	Intel® Xeon®/Core™ i7/i5/i3 processor (Kaby Lake-S/Skylake-S)
Chipset	Intel® C236
BIOS	AMI
SIO	IT8786E
Memory	2 DDR4 2133MHz SO-DIMM, up to 64GB
I/O Interface
Serial	4 COM RS-232/422/485
USB	- 6 USB 3.0 (External) - 1 USB 3.0 (Internal)
Isolated DIO	16 Isolated DIO : 8 DI, 8 DO
LED	Power, HDD, PoE
SIM Card	3 SIM Card Socket (External)
Expansion
Mini PCIe	3 Mini PCIe Socket : - 2 Full-size Mini PCIe for PCIe/USB/External SIM Card/ mSATA - 1 Half-size Mini PCIe for PCIe/USB 3.0/External SIM Card
SUMIT A, B	2 SUMIT Slot (Optional)
Graphics
Graphics Processor	Intel® HD Graphics P630/630/P530/530
Interface	- DVI-I : Up to 1920 x 1200 @ 60Hz - DVI-D : Up to 1920 x 1200 @ 60Hz - DisplayPort : Up to 4096 x 2304 @ 60Hz
Storage
SATA	2 SATA III (6Gbps)
mSATA	2 SATA III (Mini PCIe Type, 6Gbps)
SATA DOM	1 SATA II (3Gbps)
Storage Device	- 1 CFast Socket, Push-in/Push-out Ejector ECS-9000-9R, PoER, 6FR, 4R, 2R : - 2 Front-access 2.5" SSD/HDD Tray ECS-9000-9GD. PoE, 6F, 4G, 2G : - 2 2.5" SSD/HDD Bracket (Internal)
Audio
Audio Codec	Realtek ALC892, 5.1 Channel HD Audio
Audio Interface	1 Mic-in, 1 Line-out
Ethernet
LAN 1	Intel® I219LM GigE LAN supports iAMT 11.0
LAN 2	Intel® I210 GigE LAN
LAN 7	Intel® 82574L GigE LAN
LAN 8	Intel® 82574L GigE LAN
LAN 9	Intel® 82574L GigE LAN
PoE
LAN 3	GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 4	GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 5	GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 6	GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
Power
Power Input	6V to 36V, DC-in
Power Interface	- 3-pin Terminal Block : V+, V-, Frame Ground - Mini-DIN 4-pin
Ignition Control	16 Mode (Internal)
Remote Switch	3-pin Terminal Block : On, Off, IGN
Surge Protection	Up to 80V/1ms Transient Power
Others
TPM	Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer	Reset : 1 to 255 sec./min. per step
Smart Management	Wake on LAN, PXE supported
HW Monitor	Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Software Support
OS	Windows 10, Windows 8.1, Windows 7, Linux
Mechanical
Dimension (W x L x H)	260mm x 175mm x 79mm (10.2" x 6.9" x 3.1")
Weight	3.8 kg (8.38 lb)
Mounting	- Wallmount by mounting bracket - DIN Rail Mount
Environment
Operating Temperature	35W TDP CPU : ? Core™ i7, i5, i3 : -40°C to 75°C (-40°F to 167°F) ? Xeon® E3-1268L v5 : -40°C to 70°C (-40°F to 158°F) 65W TDP CPU : Core™ i7, i5, i3 : -40°C to 55°C (-40°F to 131°F) 80W TDP CPU : Xeon® E3-1275 v6, E3-1275 v5, E3-1225 v5 : -40°C to 45°C (-40°F to 113°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	5% to 95% Humidity, non-condensing
Relative Humidity	95% at 70°C
Shock	- IEC 60068-2-27 - SSD : 50G @ wallmount, Half-sine, 11ms
Vibration	- IEC 60068-2-64 - SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC	E13, CE, FCC, EN50155, EN50121-3-2
