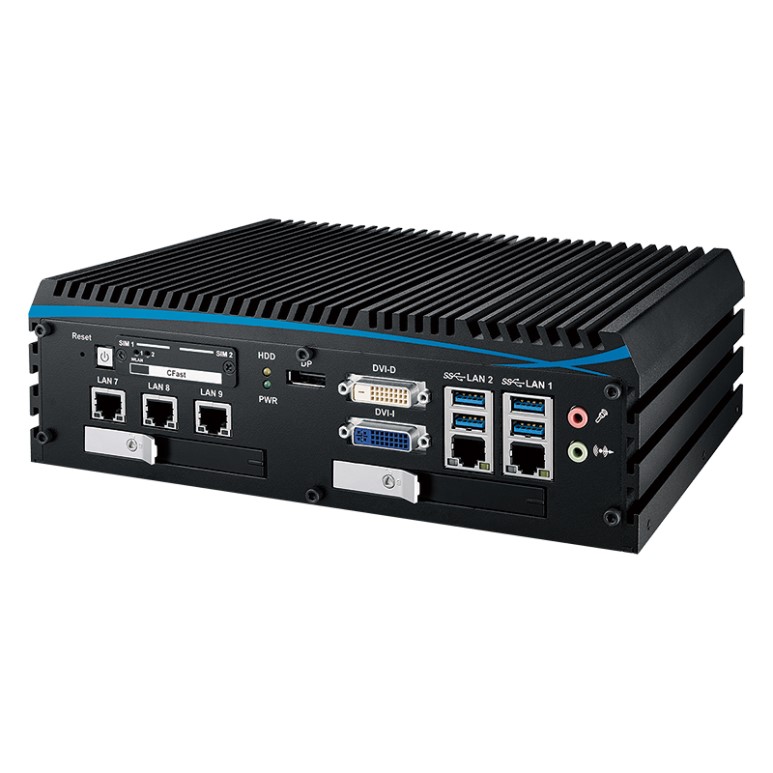

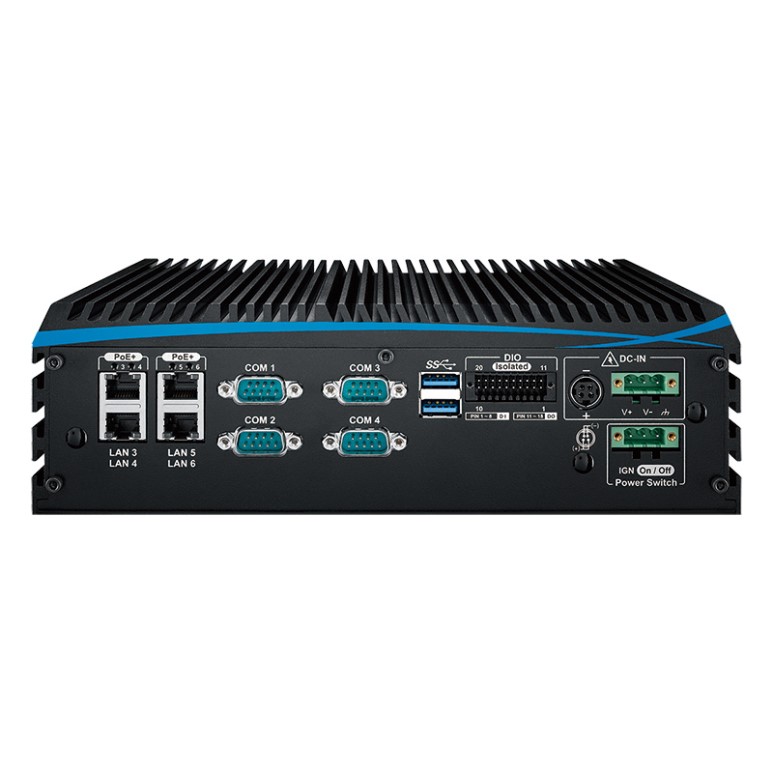

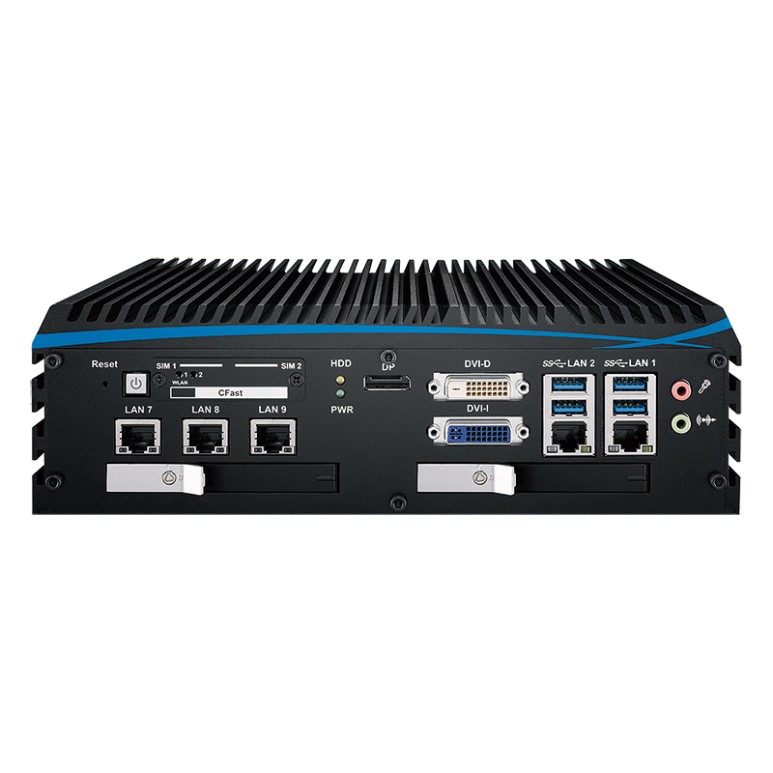

ECX-1000/Workstation-grade8th Generation Intel Xeon/Core i7/i5/i3(Coffee Lake)FanlessEmbedded System

산업용보드 > 1U Rackmount

제품문의 02-3016-2464 http://www.wjubc.co.kr

Features

6 Cores 8th Generation Intel® Xeon®/Core™ i7/i5/i3 (Coffee Lake-S) with Workstation-grade Intel® C246 chipset

Fanless, -40°C to 75°C Operating Temperature

9 Independent GigE LAN with 4 IEEE 802.3at PoE+

SIM Sockets for WiFi/4G/3G/LTE/GPRS/UMTS

2 2.5 SSD Tray, 2 SIM Socket, 1 CFast Socket, 2 M.2 Socket

6 USB 3.1, 4 COM RS-232/422/485, 16 Isolated DIO

6V to 36V DC Power Input with 80V Surge Protection

Expansion: SUMIT A, B, M.2, up to 5 Mini PCIe

Configurable Ignition Power Control

Optional supports multiple 10GigE RJ45/10GigE SFP+/GigE SFP LAN Configuration

Specifications

System
Processor	6 Cores Intel® Xeon®/Core™ i7/i5/i3 Processor (Coffee Lake-S)
Chipset	Intel® C246 chipset
BIOS	AMI
SIO	IT8786E
Memory	2 DDR4 2666MHz SO-DIMM, up to 64GB
I/O Interface
Serial	4 COM RS-232/422/485 (ESD 8KV)
USB	- 6 USB 3.1 (External) - 1 USB 2.0 (Internal)
Isolated DIO	16 Isolated DIO : 8 DI, 8 DO (Optional)
LED	Power, HDD, PoE, Wireless
SIM Card	2 External SIM Card Socket
Expansion
Mini PCIe	2 Full-size Mini PCIe Socket for PCIe/USB/External SIM Card/mSATA
M.2	1 M.2 Key E Socket
SUMIT A, B	2 SUMIT Slot (Optional)
Graphics
Graphics Processor	Intel® UHD Graphics P630/630
Interface	- DVI-I : Up to 1920 x 1200 @ 60Hz - DVI-D : Up to 1920 x 1080 @ 60Hz - DisplayPort : Up to 4096 x 2304 @ 60Hz
Storage
SATA	2 SATA III (6Gbps) support S/W RAID 0, 1
mSATA	2 SATA III (Mini PCIe Type, 6Gbps)
Storage Device	- 1 CFast Socket, Push-in/Push-out Ejector - 2 Front-access 2.5" SSD/HDD Tray - 1 M.2 Key M Socket
Audio
Audio Codec	Realtek ALC892, 5.1 Channel HD Audio
Audio Interface	1 Mic-in, 1 Line-out
Ethernet
LAN 1	Intel® I219LM GigE LAN supports iAMT 12.0
LAN 2	Intel® I210 GigE LAN
LAN 7	Intel® 82574L GigE LAN
LAN 8	Intel® 82574L GigE LAN
LAN 9	Intel® 82574L GigE LAN
PoE
LAN 3	GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 4	GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 5	GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 6	GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
SFP (ECX-1000-6FR/6F)
LAN 5	1000BASE SFP by Intel® I350
LAN 6	1000BASE SFP by Intel® I350
10G Ethernet (ECX-1055R/1055/1071R/1071)
LAN 7	- Intel® X550-AT2 10GigE LAN - Intel® X710-BM2 10GigE LAN supports IEEE 802.3 10GBASE-T SFP+
LAN 8	- Intel® X550-AT2 10GigE LAN - Intel® X710-BM2 10GigE LAN supports IEEE 802.3 10GBASE-T SFP+
Power
Power Input	6V to 36V, DC-in
Power Interface	3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control	16 Mode (Internal)
Remote Switch	3-pin Terminal Block
Surge Protection	Up to 80V/1ms Transient Power
Others
TPM	Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer	Reset : 1 to 255 sec./min. per step
Smart Management	Wake on LAN, PXE supported
HW Monitor	Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Software Support
OS	Windows 10, Linux
Mechanical
Dimension (W x L x H)	260mm x 175mm x 79mm (10.2" x 6.9" x 3.1")
Weight	3.8 kg (8.38 lb)
Mounting	- Wallmount by mounting bracket - DIN Rail Mount (Optional) - 2U Rackmount (Optional)
Environment
Operating Temperature	35W TDP CPU : -40°C to 75°C (-40°F to 167°F) 65W TDP CPU : -40°C to 55°C (-40°F to 131°F) 80W TDP CPU : -40°C to 45°C (-40°F to 113°F) 10G Series : -40°C to 55°C (-40°F to 131°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	5% to 95% Humidity, non-condensing
Relative Humidity	95% at 70°C
Shock	- IEC 60068-2-27 - SSD : 50G @ wallmount, Half-sine, 11ms
Vibration	- IEC 60068-2-64 - SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC	CE, FCC, EN50155, EN50121-3-2
