ABP-2045

산업용보드 > 1U Rackmount

제품문의 02-3016-2464 http://www.wjubc.co.kr

Features

Quad Core Intel® Atom™ E3845 Processor

Rugged, -25°C to 70°C Operation Temperature

Fanless and Compact Form Factor

Supports 9V to 28V DC Power Input

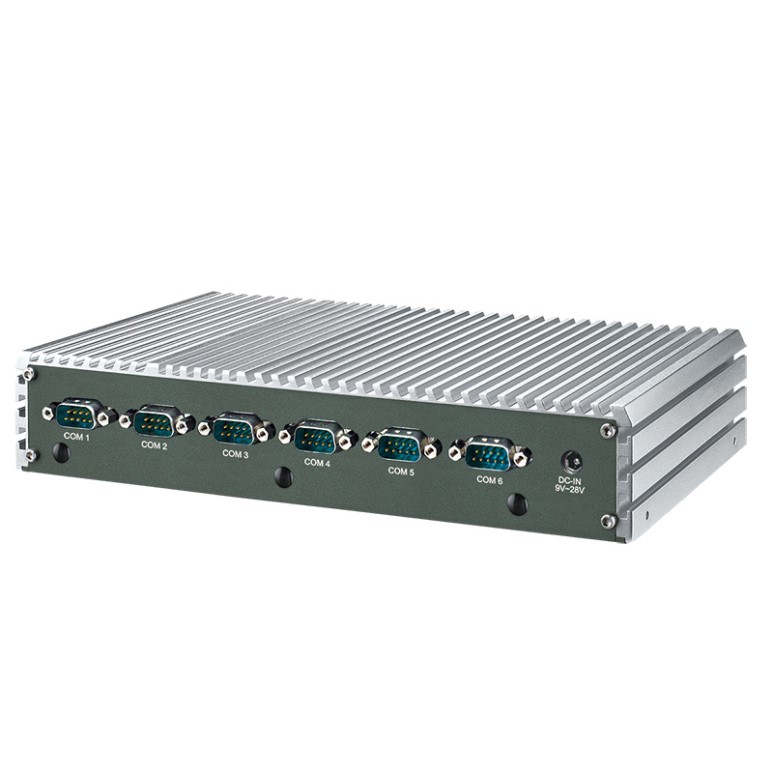

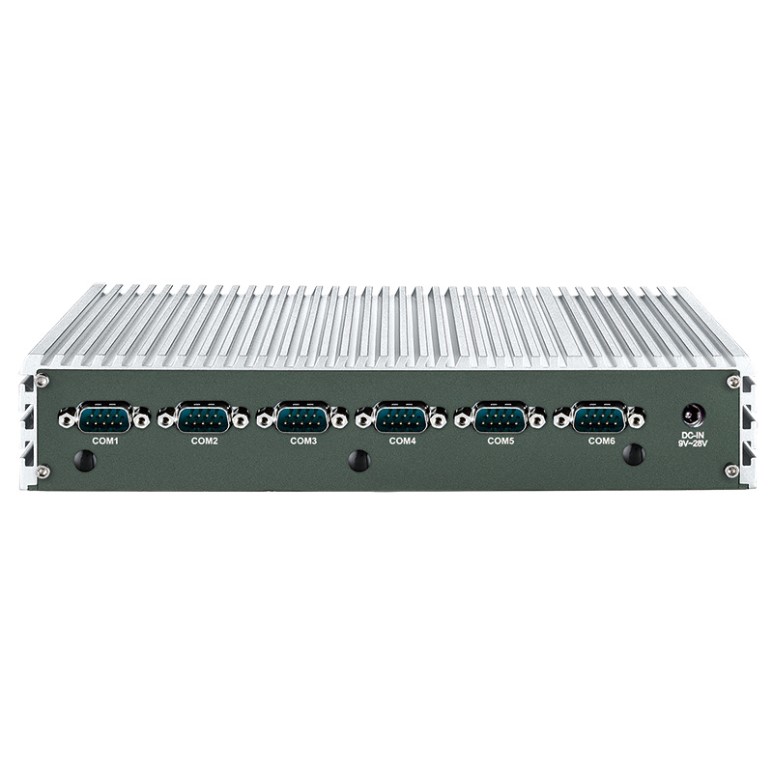

6 COM (2 RS-232 and 4 RS-232/422/485) with Auto Flow Control

3G/4G, GPS/GPRS, WiFi Support

Dual Display: VGA and 2 HDMI

CEC, Consumer Electronic Control

System
Processor	Quad Core Intel® Atom™ E3845 1.91GHz Pocessor (Valleyview)
Chipset	Intel® SoC (Bay Trail)
Memory	1 DDR3L 1333MHz SO-DIMM, up to 8GB
Video	Dual Display : ??- VGA : Up to 2560 x 1600 ??- HDMI 1 : Up to 1920 x 1080 ??- HDMI 2 : Up to 1920 x 1080 ??- LVDS : Dual channel 24-bit (Optional)
Audio	1 Mic-in, 1 Line-out
OS	Windows 10, Windows 8.1, Windows 7, WES7

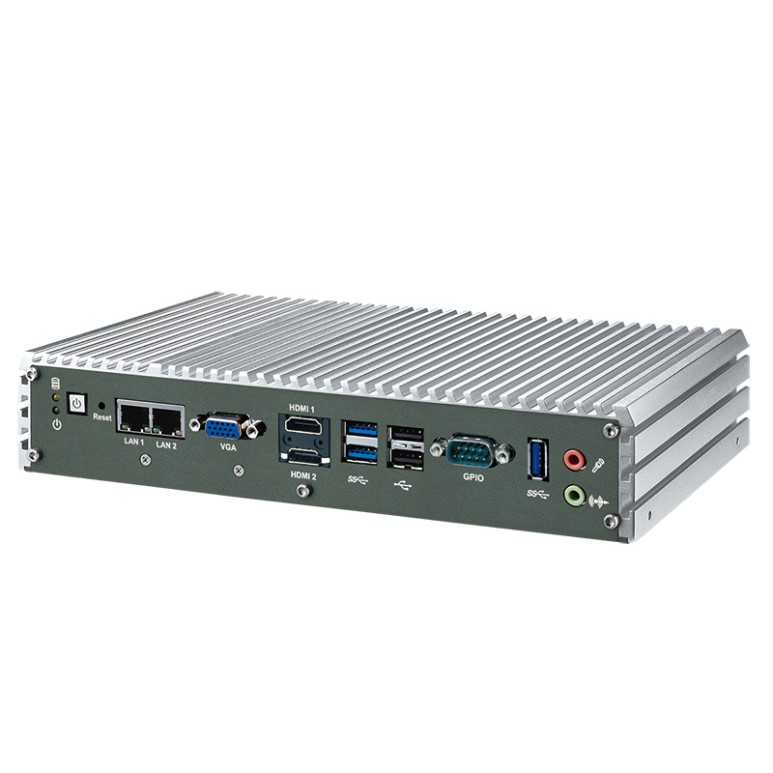

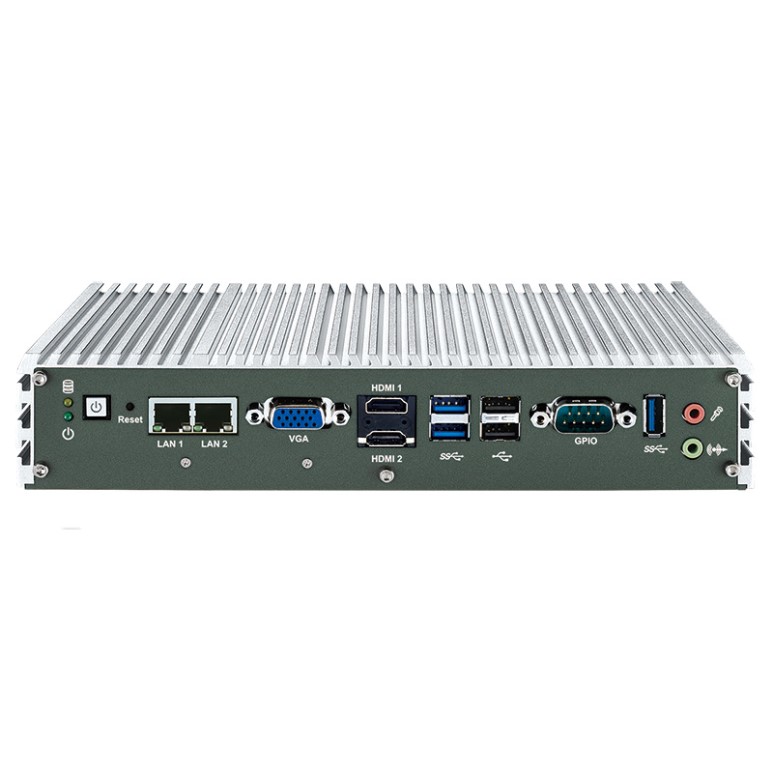

I/O Interface
Serial	6 External COM : - 4 COM RS-232/ 422/ 485 ??- 2 COM RS-232
LAN	2 Intel® 82574L GigE LAN
USB	3 USB 3.0, 2 USB 2.0
GPIO	8 GPIO
Mini PCIe	3 Mini PCIe Socket : ??- 1 Mini PCIe for PCIe/ USB/ SIM Card ??- 1 Mini PCIe for PCIe/ USB ??- 1 Mini PCIe for mSATA
Power
Power Input	9V to 28V DC-in Optional BOM : Onboard Power Input for PPC
Power Interface	DC Jack
Storage
SATA	1 SATA II (3Gbps)
mSATA	1 SATA II (Mini PCIe Type, 3Gbps)
Storage Device	1 2.5" SSD/ HDD Bracket (Internal)
Others
Watchdog Timer	Reset : 1 to 255 sec./min. per step
Smart Management	Wake on LAN, PXE supported
HW Monitor	Monitoring temperature, voltages. Auto throttling control when CPU overheats.
GPS	Onboard GPS Module (Optional)
Mechanical

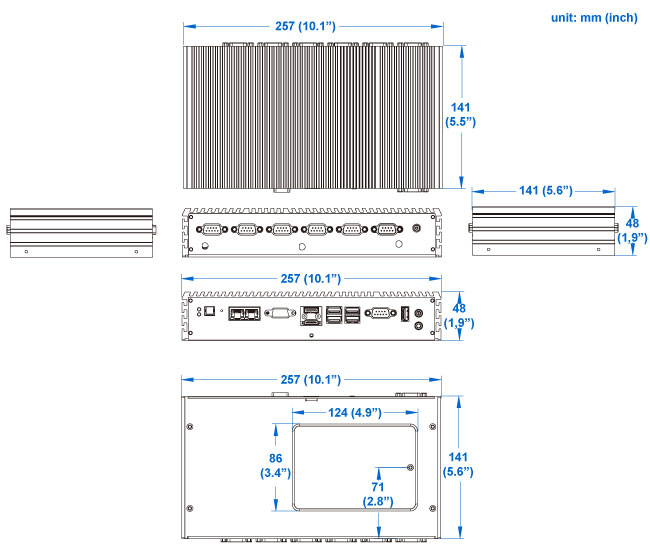

Dimension (W x L x H)	257mm x 141mm x 48mm (10.1” x 5.6” x 1.9”)
Weight	2.1 kg (4.6 lb)
Mounting	Wallmount by Mounting Bracket
Design	Compact
Environment
Operating Temperature	-25°C to 70°C (-13°F to 157°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	10% to 95% Humidity, non-condensing
Shock	??- IEC 60068-2-27 ??- SSD : 50G @ wallmount, Half-sine, 11ms
Vibration	??- IEC 60068-2-64 ??- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
Certification	CE, FCC, EN50155, EN50121-3-2
