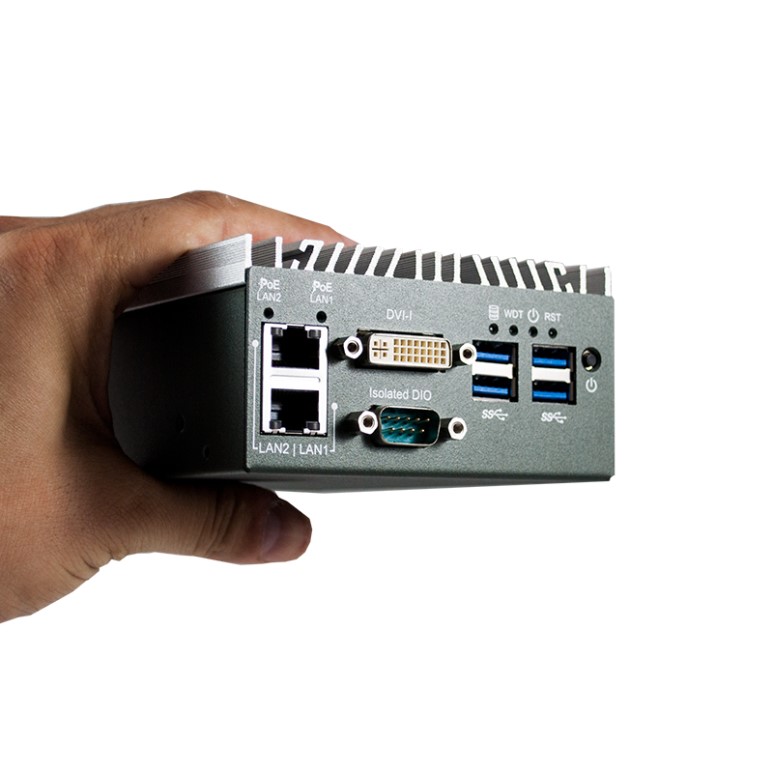

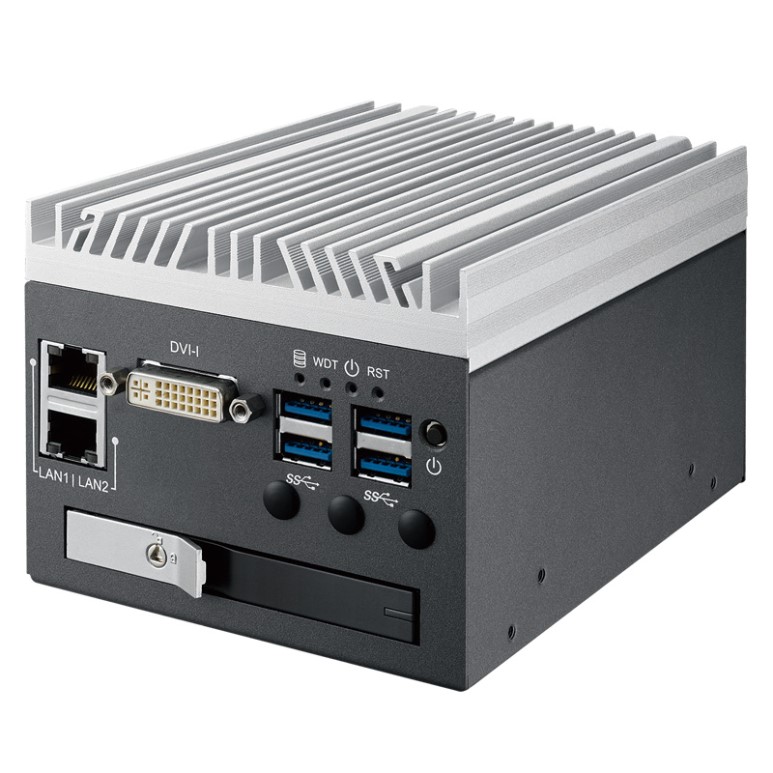

SPC-2145RS/Front-access SSD/HDD Tray, Fanless Embedded System

산업용보드 > 1U Rackmount

Features

Intel® Atom™ Quad Core E3845 1.91GHz Processor

Rugged, -25°C to 70°C Operating Temperature

Fanless and Ultra-compact

6V to 36V DC Power Input

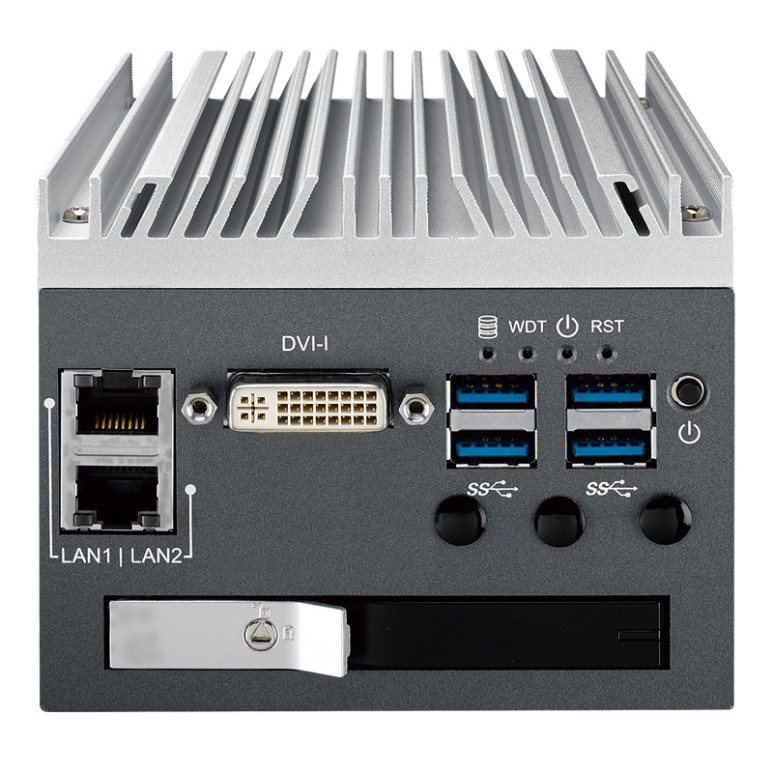

1 Front-access SSD/HDD Tray

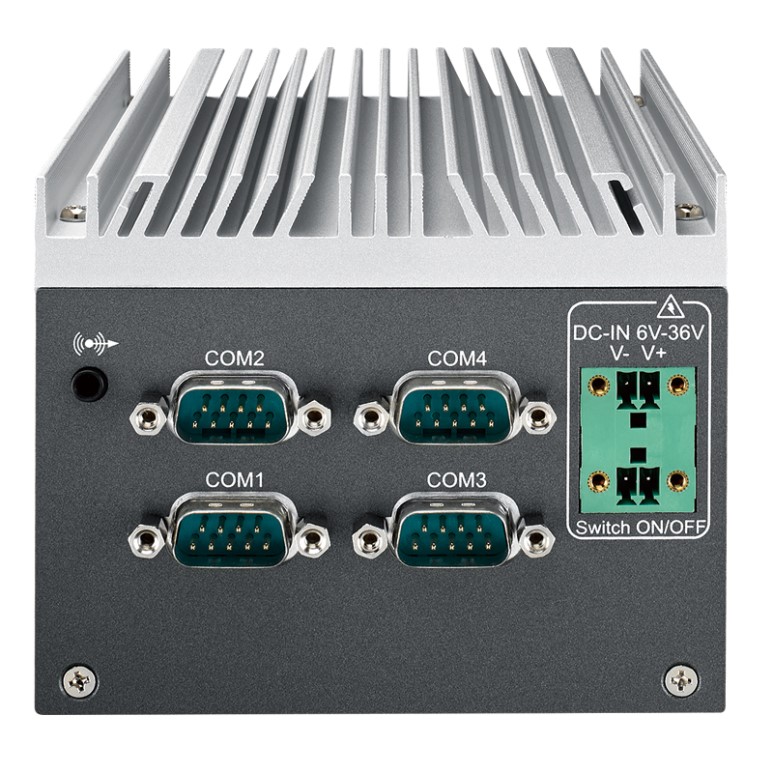

4 COM (RS-232/422/485) with Auto Flow Control

DVI-I for VGA/DVI/HDMI Video Output

4 USB 3.0

2 GbE LAN

Specifications

System
Processor	Intel® Atom™ Quad Core E3845 1.91GHz Processor
Chipset	Intel® SoC
Memory	1 DDR3L 1333 SO-DIMM, up to 8GB
Video	1 DVI-I for VGA/ DVI/ HDMI Video Output
Audio	1 Line-out
Software Support	Windows 10, Windows 8.1, Windows 7, WES7, Linux
I/O Interface
Serial	4 RS-232/ 422/ 485
Ethernet	2 Gigabit LAN by Intel® I210
USB	4 USB 3.0
LED	Power/ HDD/ WTD/ PoE
Mini PCIe	- 1 Mini PCIe Socket (PCIe + USB + SIM card socket) - 1 Mini PCIe Socket (PCIe + USB) optional with mSATA (Jumper Select)
Power Supply
Power Input	- Terminal Block; DC-IN 6V to 36V - 2-pin Remote Power On/Off Switch - Power Button
Adaptor	AC to DC, 60W (Optional)
Storage
SATA HDD	1 Front-access SSD/ HDD Tray (Optional)
mSATA	1 Mini PCIe Socket (PCIe + USB), optional with mSATA
Other
Watchdog Timer	Reset : 1 to 255 sec./min. per step
Mechanical
Dimension (W x L x H)	106mm x 150.4mm x 85.9mm (4.2” x 5.9” x 3.4”)
Weight	1.4 kg (3.1 lb)
Mounting	- Wallmount by mounting bracket - DIN-Rail Mounting Kit (Optional)
Design	- Ultra-compact; 3.5" Form Factor - Top cover Heat Sink; Fanless Design
Environment
Operating Temperature	-25°C to 70°C (-13°F to 157°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	5% to 95% Humidity, Non-condensing
Shock	- IEC 60068-2-27 - SSD : 50G @ Wallmount, Half sine, 11ms
Vibration	- IEC 60068-2-64 - SSD : 5 Grms @ 5Hz to 500Hz, 3 Axis
EMC	CE, FCC, EN 50155, EN 50121-3-2
