System

Processor

Intel¢ç Atom¢â Quad Core E3845 1.91GHz Processor

Chipset

Intel¢ç SoC

Memory

1 DDR3L 1333 SO-DIMM, up to 8GB

Video

1 DVI-I for VGA/ DVI/ HDMI Video Output

Audio

1 Line-out

Software Support

Windows 10, Windows 8.1, Windows 7, WES7, Linux

I/O Interface

Serial

4 RS-232/ 422/ 485

Ethernet

2 Gigabit LAN by Intel¢ç I210

USB

4 USB 3.0

DIO

8 Isolated DIO (4 DI, 4 DO)

LED

Power/ HDD/ WTD/ PoE

Mini PCIe

- 1 Mini PCIe Socket (PCIe + USB + SIM card socket)

- 1 Mini PCIe Socket (PCIe + USB) optional with mSATA (Jumper Select)

Power Supply

Power Input

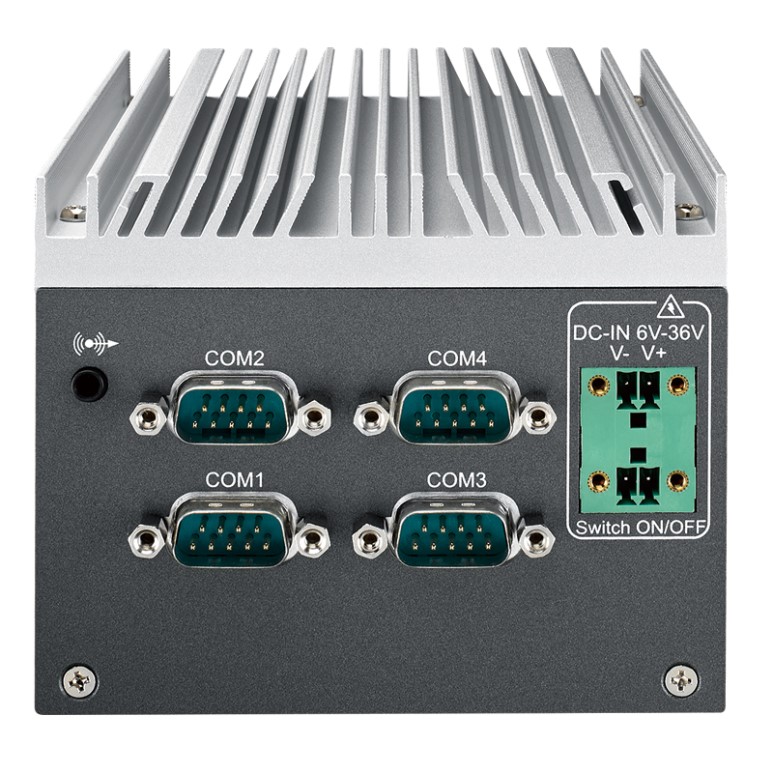

- Terminal Block; DC-IN 6V to 36V

- 2-pin Remote Power On/Off Switch

- Power Button

Adaptor

AC to DC, 60W (Optional)

Storage

SATA HDD

1 Front-access SSD/ HDD Tray

mSATA

1 Mini PCIe Socket (PCIe + USB), optional with mSATA

Other

Watchdog Timer

Reset : 1 to 255 sec./min. per step

Mechanical

Dimension (W x L x H)

106mm x 150.4mm x 85.9mm (4.2¡± x 5.9¡± x 3.4¡±)

Weight

1.4 kg (3.1 lb)

Mounting

- Wallmount by mounting bracket

- DIN-Rail Mounting Kit (Optional)

Design

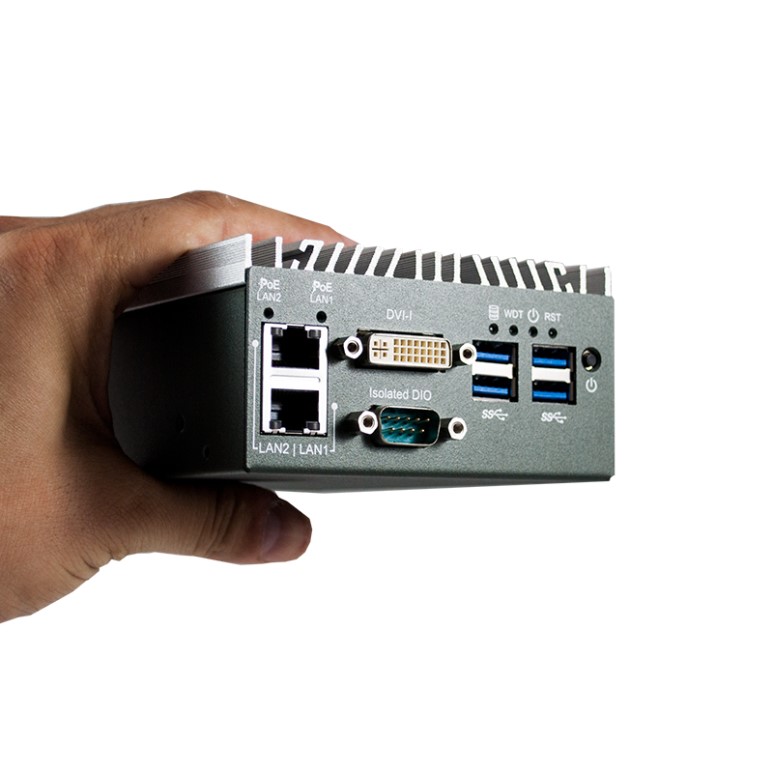

- Ultra-compact; 3.5" Form Factor

- Top cover Heat Sink; Fanless Design

Environment

Operating Temperature

-25¡ÆC to 70¡ÆC (-13¡ÆF to 157¡ÆF)

Storage Temperature

-40¡ÆC to 85¡ÆC (-40¡ÆF to 185¡ÆF)

Humidity

5% to 95% Humidity, Non-condensing

Shock

- IEC 60068-2-27

- SSD : 50G @ Wallmount, Half sine, 11ms

Vibration

- IEC 60068-2-64

- SSD : 5 Grms @ 5Hz to 500Hz, 3 Axis

EMC

CE, FCC, EN 50155, EN 50121-3-2
