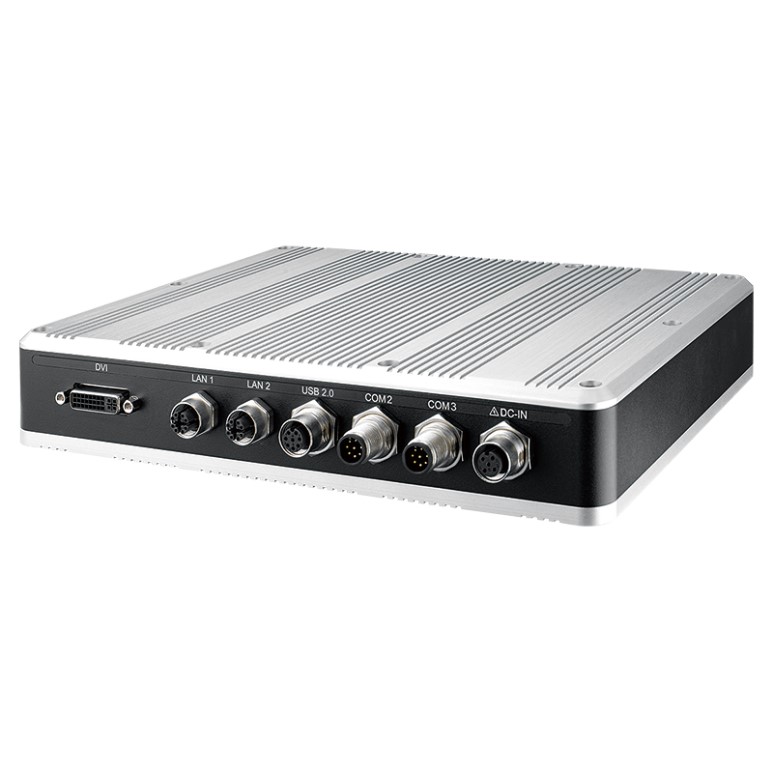

RES-1000(M12)/6th Intel Core i7/i5/i3 U-series SoC (Skylake-U) IP67 compliant Rugged Embedded System

산업용보드 > 1U Rackmount

Features

Compact & slim design, IP67 protection

6th Generation Intel® Core™ i7/i5/i3 U-series SoC (Skylake-U)

1 DDR4 2133MHz memory, up to 16GB

Intel® HD Graphics 520 supports DirectX 12, OpenGL 4.5 and OpenCL 2.0

Rugged, Fanless, -30°C to 70°C operating temperature

9V to 36V DC Power Input with M12 waterproof connector

Dual X-coded M12 GigE LAN, iAMT 11.0 supported

2 M12 COM RS-232/422/485

1 M12 connector for 2-port USB 2.0

One-stop customized design and manufacturing services

Specifications

System
Processor	Intel® Core™ i7/i5/i3/Celeron® U-series Processor (Skylake-U)
Chipset	Intel® SoC (Skylake)
BIOS	AMI
SIO	IT8786E
Memory	1 DDR4 2133MHz SO-DIMM, up to 16GB
OS	Windows 10, Windows 8.1, Windows 7, Linux

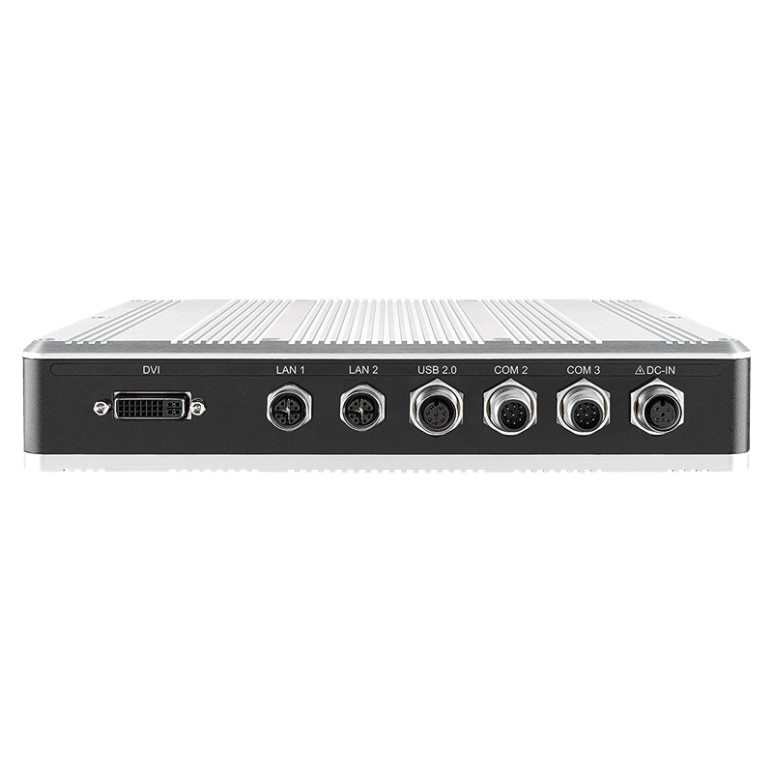

I/O Interface
Serial	2 COM RS-232/422/485, A-coded M12 Connector
USB	1 supports 2-port USB 2.0, A-coded M12 Connector
LED	Power, HDD
Graphics
Processor	Intel® HD Graphics 520
Interface	IP67 Waterproof DVI-D Connector, up to 1920 x 1200 @60Hz
Storage
SATA	1 SATA III (6Gbps)
mSATA	1 SATA III (Mini PCIe Type, 6Gbps)
Storage Device	- 1 mSATA Socket - 1 Internal 2.5" SSD/HDD Bracket (Optional)
Ethernet
LAN 1	Intel® I219LM GigE LAN supports iAMT 11.0, X-coded M12 Connector
LAN 2	Intel® I210 GigE LAN, X-coded M12 Connector
Power
Power Input	9V to 36V, DC-in
Power Interface	A-coded M12 Connector

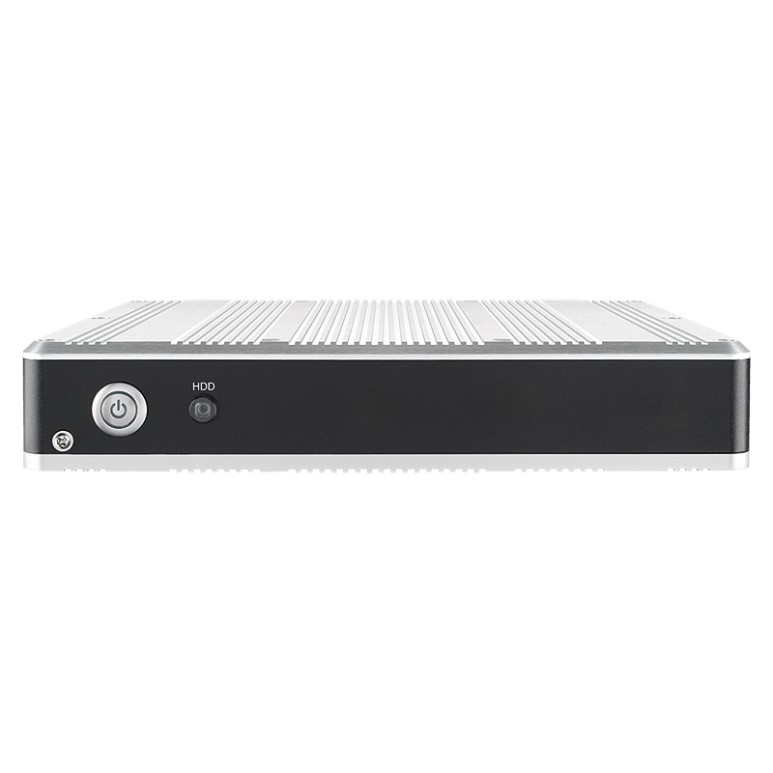

Power Switch	IP67 Waterproof Power Button
Others
Watchdog Timer	Reset : 1 to 255 sec./min. per step
Smart Management	Wake on LAN, PXE supported
HW Monitor	Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical
Dimension (W x L x H)	250mm x 180mm x 44mm (9.8" x 7.1" x 1.7")
Weight	2.3 kg (5.07 lb)
Mounting	- Wallmount by mounting bracket - VESA Mount
Environment
Operating Temperature	-30°C to 70°C (-22°F to 158°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	5% to 95% Humidity, non-condensing
Relative Humidity	95% @ 70°C
Shock	- IEC 60068-2-27 - SSD : 50G @ wallmount, Half-sine, 11ms
Vibration	- IEC 60068-2-64 - SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC	CE, FCC, EN50155, EN50121-3-2
