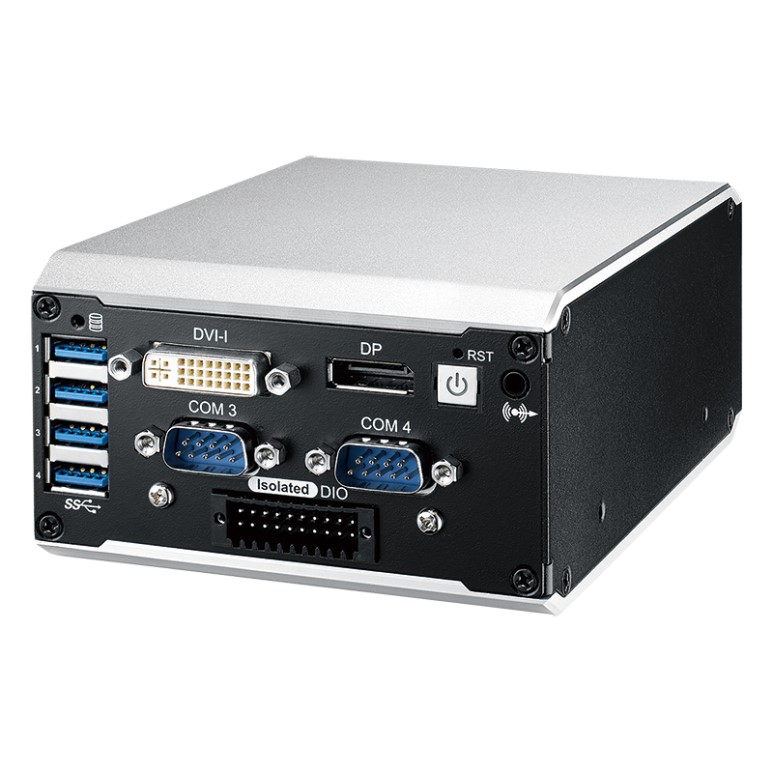

SPC-4600/Intel Atom® x7-E3950 SoC (Apollo Lake-I) Ultra-compact Fanless PoE+ Embedded Box PC

산업용보드 > 1U Rackmount

Features

Quad Core Intel Atom® x7-E3950 SoC (Apollo Lake-I)

Fanless -40°C to 85°C operating temperature

DVI-I and DisplayPort dual display support 4K resolution

DDR3L 1866MHz memory supports up to 8GB

2 GigE PoE+ LAN support IEEE 802.3at and IEEE 1588 (PTP)

16 Isolated DIO, 4 USB 3.0, 1 external SIM socket

2 Mini PCIe sockets, 1 SATA III

4 COM RS-232/422/485

Supports 9V to 36V wide range DC Power Input

Configuration Ignition Power Control

TPM 2.0 supported

Specifications

System
Processor	Intel Atom® x7-E3950 processor (Apollo Lake-I)
BIOS	AMI
SIO	IT8786E
Memory	1 DDR3L 1866MHz SO-DIMM, up to 8GB
OS	Windows 10, Linux
I/O Interface

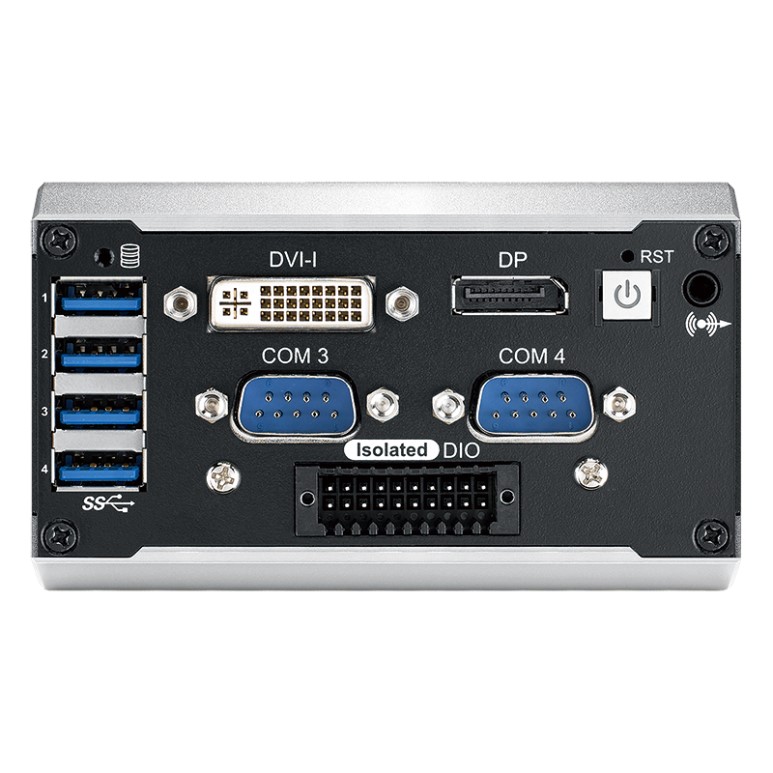

Serial	4 COM RS-232/422/485
USB	4 USB 3.0 (external)
DIO	16 Isolated DIO: 8 DI, 8 DO
LED	Power, HDD, wireless, PoE
SIM card	1 SIM socket (external)
Expansion
Mini PCIe	2 Mini PCIe sockets: - 1 Mini PCIe for PCIe/USB/SIM card - 1 Mini PCIe for PCIe/USB/optional mSATA
Graphics
Processor	Intel® HD graphics 505
Interface	- DVI-I: Up to 3840 x 2160 @60Hz - DP: Up to 4096 x 2160 @60Hz
Storage
SATA	1 SATA III (6Gbps)
mSATA	1 SATA III (Mini PCIe type, 6Gbps)
Storage Device	1 2.5" SSD/HDD bracket (internal)
Audio
Audio Codec	Realtek ALC892, 5.1 Channel HD Audio
Audio Interface	1 Line-out
Ethernet
LAN 1	GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210, IEEE 1588 supported
LAN 2	GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210, IEEE 1588 supported
Power
Power Input	9V to 36V DC power input

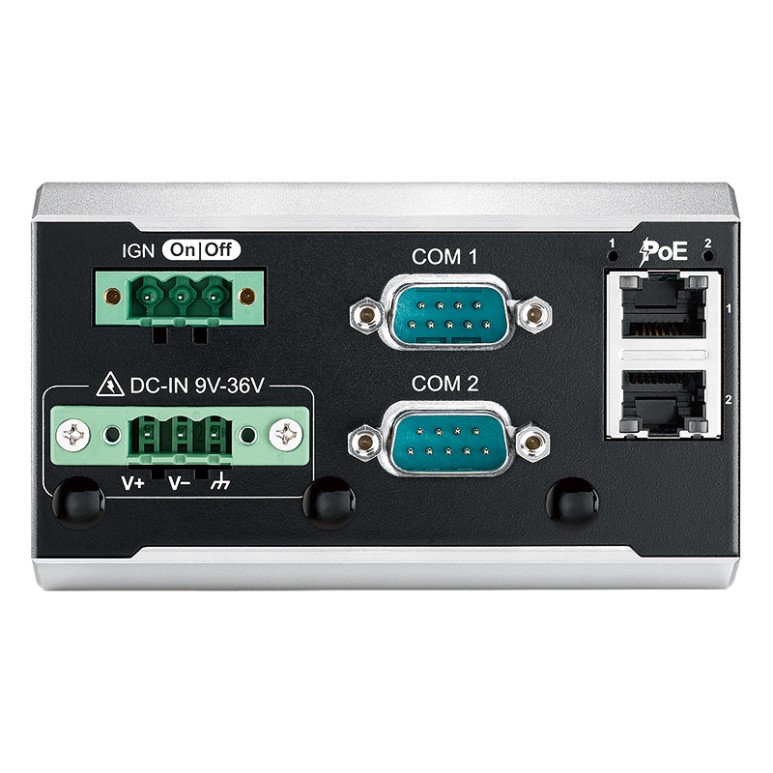

Power Interface	3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control	16 Mode (internal)
Remote Switch	3-pin Terminal Block : On, Off, IGN
Others
TPM	Optional Infineon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer	Reset : 1 to 255 sec./min. per step
HW Monitor	Monitoring temperature, voltages. Auto throttling control when CPU overheats
Mechanical
Dimension	106mm x 150mm x 63mm (4.17" x 5.91" x 2.48")
Weight	1.2 kg (2.65 Ib)
Mounting	- Wallmount by mounting bracket - DIN Rail Mount (optional) - 2U Rackmount (optional)
Environment
Operating Temperature	-40°C to 85°C (-40°F to 185°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	5% to 95% Humidity, non-condensing
Relative Humidity	95% @ 85°C
EMC	CE, FCC, EN50155, EN50121-3-2
