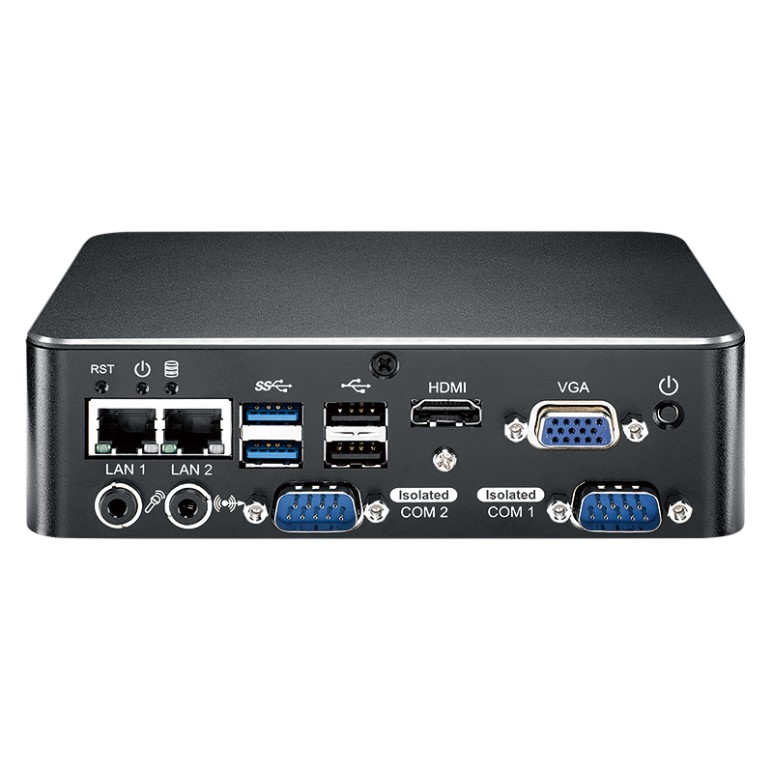

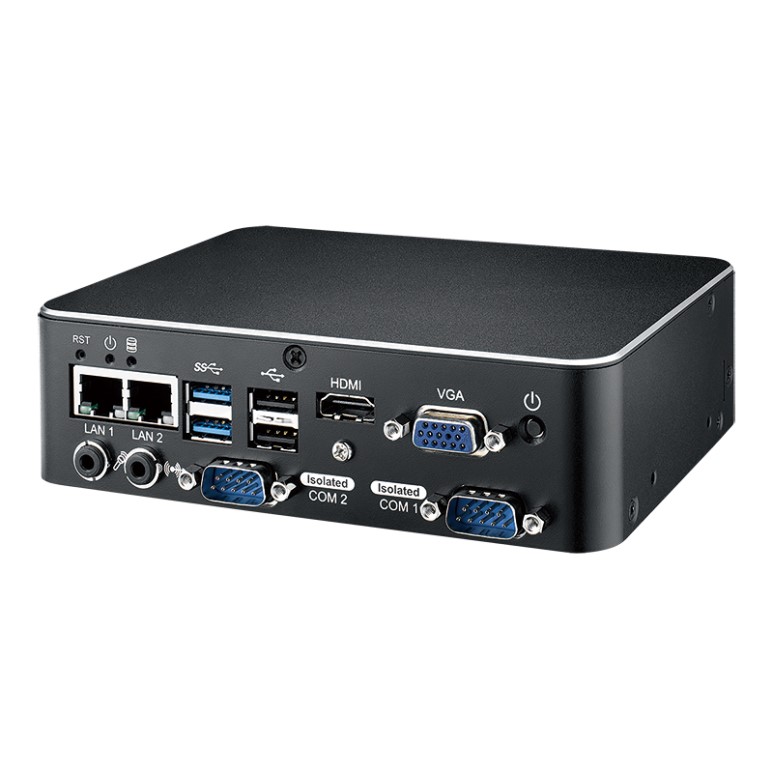

SPC-4010/Intel Atom® x7-E3950 SoC (Apollo Lake-I) Ultra-compact Fanless Embedded Box PC

산업용보드 > 1U Rackmount

Features

Quad Core Intel Atom® x7-E3950 SoC (Apollo Lake-I) supports lower power consumption

Fanless, -40°C to 85°C operating temperature

Supports Lockable HDMI and VGA Dual Display, up to 4K resolution

DDR3L 1866MHz memory supports up to 8GB

2 GigE LAN support IEEE 1588 (PTP)

2 Isolated COM RS-232/422/485

4 USB, 1 SIM socket

2 Mini PCIe sockets, 1 SATA III

supports 12V DC Power Input

TPM 2.0 supported

Specifications

System
Processor	Intel Atom® x7-E3950 processor (Apollo Lake-I)
BIOS	AMI
SIO	IT8786E
Memory	1 DDR3L 1866MHz SO-DIMM, up to 8GB
OS	Windows 10, Linux
I/O Interface
Serial	2 Isolated COM RS-232/422/485
USB	- 2 USB 3.0 (External) - 4 USB 2.0 (2 External, 2 Internal)
LED	Power, HDD, wireless
SIM card	1 Internal SIM socket
Expansion
Mini PCIe	2 Mini PCIe sockets: - 1 Mini PCIe for PCIe/USB/SIM card - 1 Mini PCIe for PCIe/USB/Optional mSATA
Graphics
Processor	Intel® HD graphics 505
Interface	- HDMI : Up to 3840 x 2160 @30Hz - VGA : Up to 1920 x 1440 @60Hz
Storage
SATA	1 SATA III (6Gbps)
mSATA	1 SATA III (Mini PCIe type, 6Gbps)
Storage Device	1 2.5" SSD/HDD bracket (Internal)
Audio
Audio Codec	Realtek ALC892, 5.1 Channel HD Audio
Audio Interface	1 Mic-in, 1 Line-out
Ethernet
LAN 1	Intel® I210 GigE LAN supports IEEE 1588
LAN 2	Intel® I210 GigE LAN supports IEEE 1588
Power
Power Input	Single 12V DC power input

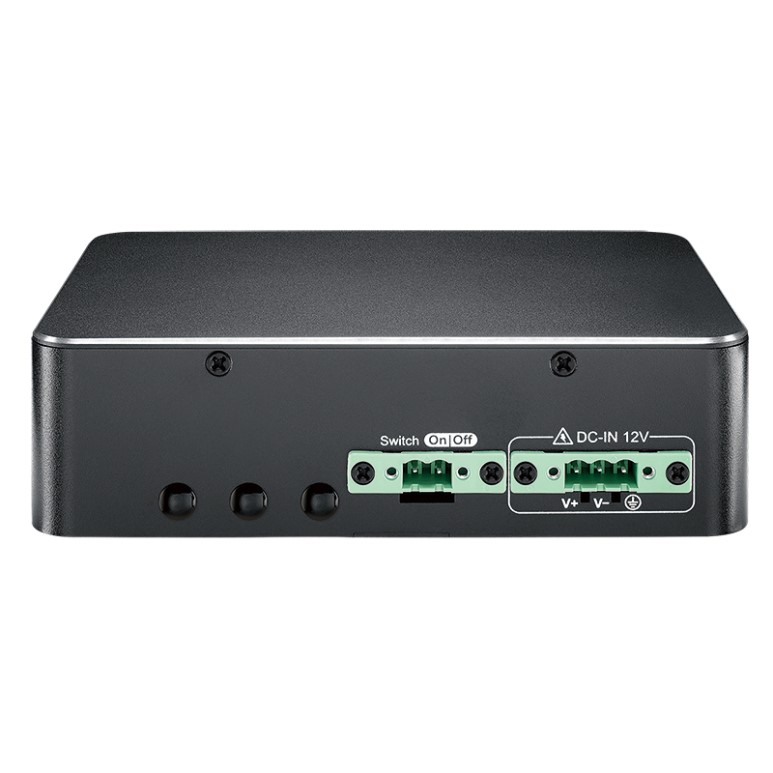

Power Interface	3-pin Terminal Block : V+, V-, Frame Ground
Remote Switch	2-pin Terminal Block
Others
TPM	Optional Infineon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer	Reset : 1 to 255 sec./min. per step
HW Monitor	Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical
Dimension	155mm x 111mm x 44mm (6.1" x 4.4" x 1.7")
Weight	0.8 kg (1.84 lb)
Mounting	- Wallmount by mounting bracket - DIN Rail mount (Optional) - 2U Rackmount (Optional)
Environment
Operating Temperature	-40°C to 85°C (-40°F to 185°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	5% to 95% Humidity, non-condensing
Relative Humidity	95% @ 85°C
EMC	CE, FCC, EN50155, EN50121-3-2
