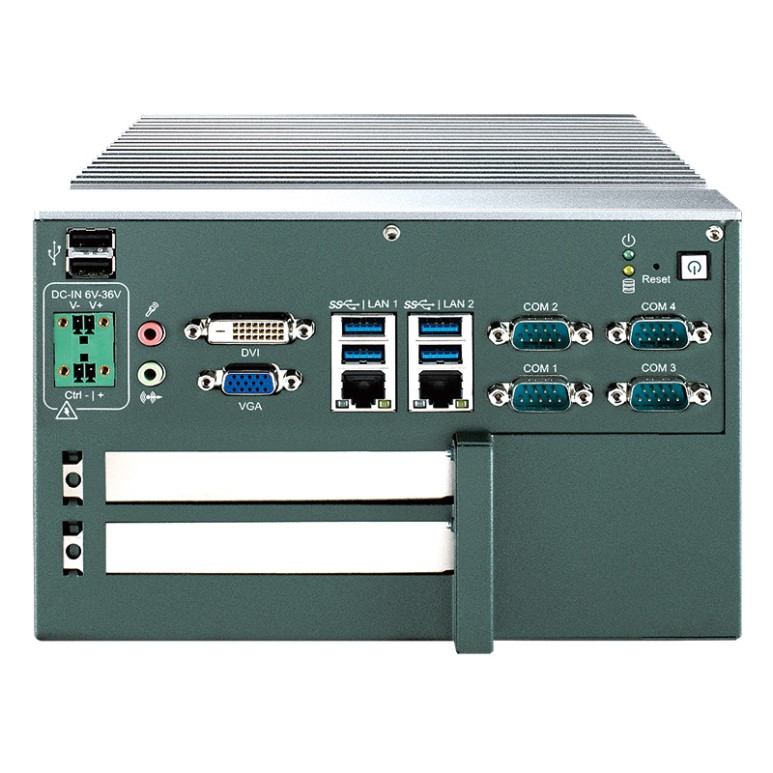

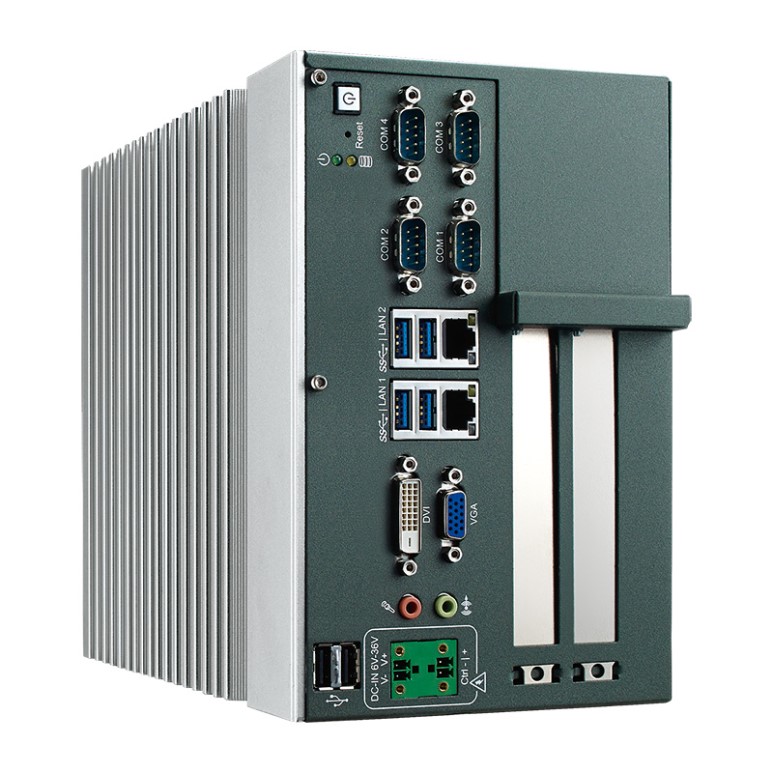

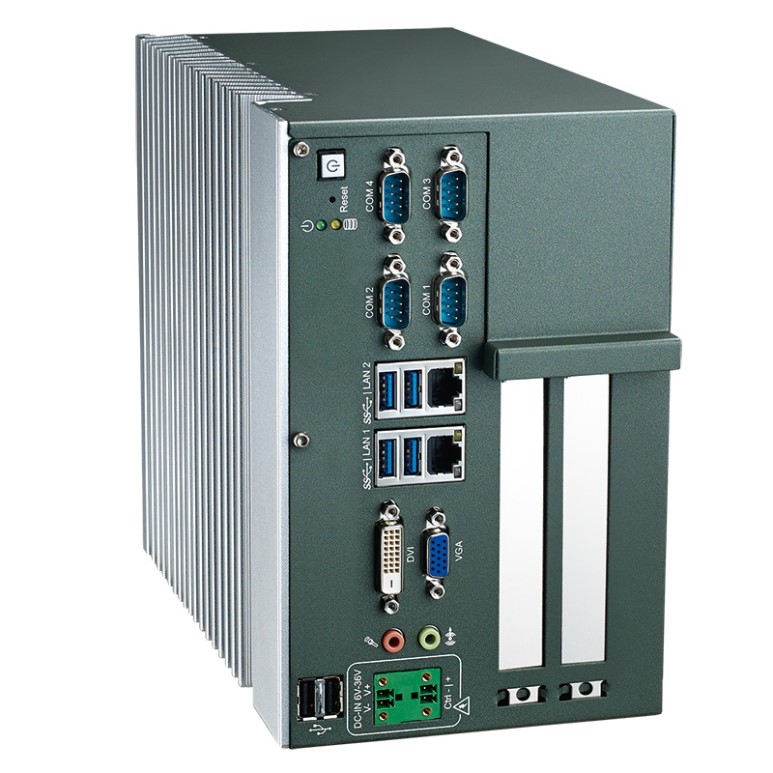

RCS-2002 / Fan-less Robust Computing System

산업용보드 > 1U Rackmount

Features

Intel® Bay Trial-I E3845 Quad-core processor

2 PCI Expansion Slot

Fan-less, -25°C to 70°C Operation Temperature

2 GbE LAN, 4 USB 3.0 + 2 USB 2.0

4 COM (2 RS-232 and 2 RS-232/422/485) with Auto Flow Control

Dual Display: DVI-D, VGA

2 SATA II (3Gbps); 1 for HDD / SSD and 1 for CFast

System
Processor	Intel® Atom™ Quad-Core Valleyview (Bay Trail) Processor (E3845 1.91GHz)
Chipset	Valleyview SoC
Video	1 DDR3L 1333 SO-DIMM 8GB Max., 1 DB 15 VGA, 1 DVI-D
Audio	1 Mic-In, 1 Line-Out
Software Support	Windows 10, Windows 8.1, Windows 7, WES7, Linux & RTOS
I/O Interface
Serial Interface	4 COM Ports(2 RS-232, 2 RS-232/422/485)
LAN	2 Intel® GbE WG82574L
USB	4 USB 3.0 + 2 USB 2.0
LED	Power/HDD
GPIO	16 GPIO
Expansion
PCI	2 PCI
Mini PCIe	1x miniPCIe socket (PCIe +USB+ SIM card socket) 1x miniPCIe socket (PCIe +USB)
Power Supply
Power Input	2-pin terminal block for DC-IN ATX: 2-Pin Remote Power On/Off Switch
Power Input voltage	DC-IN 6~36V
Power Output	on-board 12V (for Panel PC)
Power Adaptor	AC to DC +24V / 2.5A 60W Max. (Optional)
Protection	On-board LT4356 for high voltage surge protection
Storage
SATA	1 SATA II (3Gbps) for SSD/HDD
mSATA	1 CFast (or 1 mSATA by request)
Other
Watchdog Timer	Reset: 1 to 255 sec./min. Per Step
GPS	On-Board GPS Module (Optional)
Mechanical
Chassis Construction	Aluminum Housing
Size (W x D x H)	210mm x 252mm x 137mm (8.3” x 9” x 5.4”)
Weight	3.5Kg
Mounting	Wall-mount by Mounting Bracket
Environment
Operating Temperature	-25°C to 70°C (-13°F to 157°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	10% to 95% Humidity, Non-condensing
Relative Humidity	95% at 70°C
Vibration	Operating, 5Grms @5~500 Hz w/SSD, according to IEC60068-2-64
Shock	Operating, 20 Grms, Half-sine 11 ms Duration w/ SSD, According to IEC60068-2-27
EMC	CE/FCC Class A
