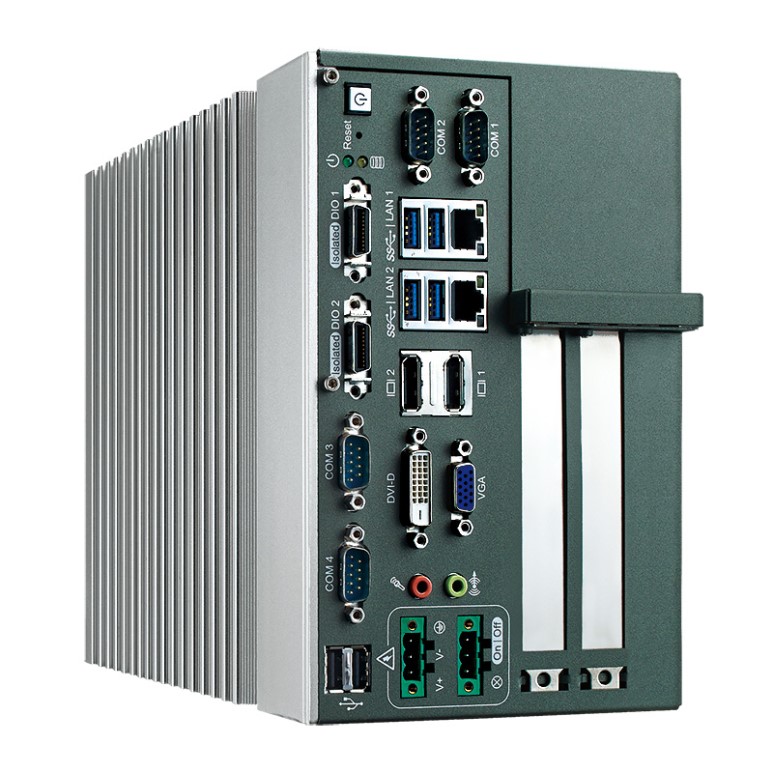

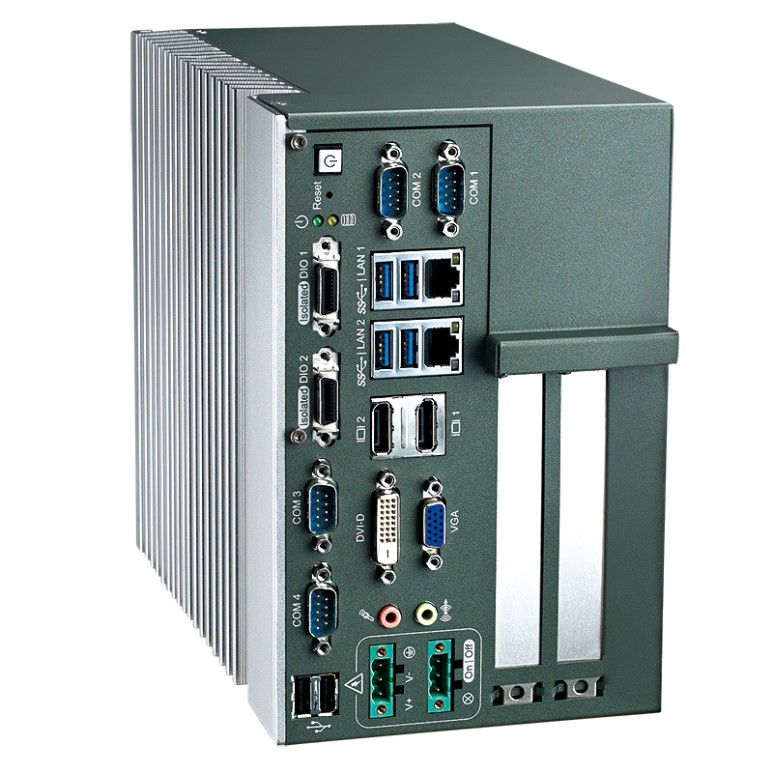

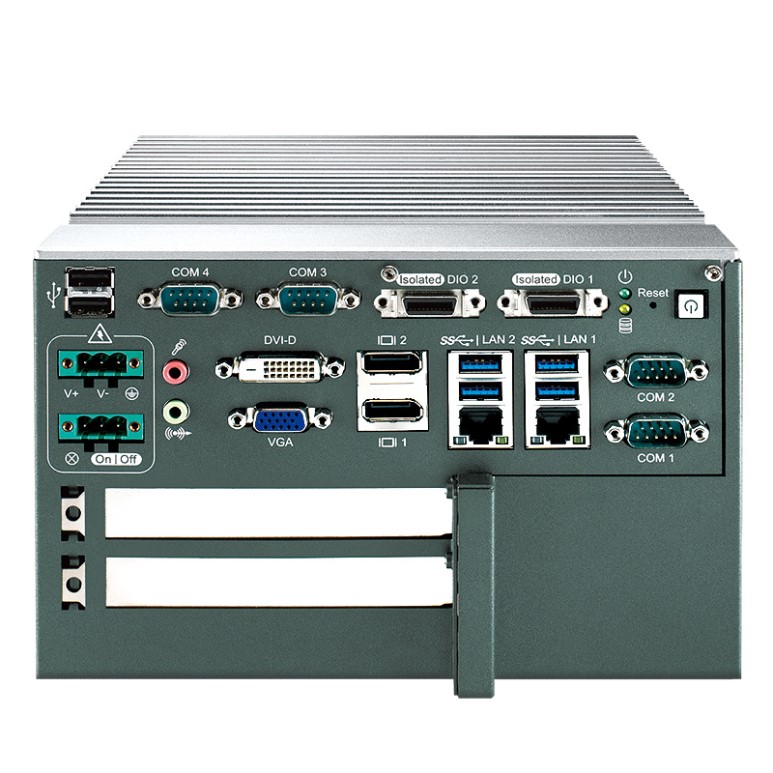

RCS-7211/High Performance, Rugged, Extended Temp, Fan-less Rubost Computing System

산업용보드 > 1U Rackmount

Features

3rd Gen Intel® Core™ i7/ i5/ i3 Ivy Bridge Mobile Processor

1 PCI Slot

1 PCI Express x16 Slot

32 Isolated DIO : 16 DI, 16 DO

Fanless, -25°C to 70°C Operating Temperature

QM77 System Chipset

2 GbE LAN, 4 COM, 4 USB 3.0, 4 USB 2.0

3G/ 4G/ WiFi/ GPS supported

Support 2 SO-DIMM DDR3 or DDR3L, up to 16GB

5 Display Support: 2 DP, DVI-D, VGA, LVDS; 3 Independent Displays

2 SATA III (6Gbps) 2.5” SSD/ HDD

Intel® AMT 8.0 Support

System
Processor	3rd Generation Intel® Quad Core™ i7/ i5/ i3 Ivy Bridge Processors (6M Cache, up to 3.30 GHz)
Chipset	Intel® QM77
BIOS	AMI
SIO	IT8783F
Memory	DDR3 1066/ 1333/ 1600 MHz, DDR3L 1066/ 1333 MHz, up to 16GB 2 204-pin SO-DIMM Socket
I/O Ports
Serial	3 COM RS-232, 1 COM RS-232/ 422/ 485
USB	4 USB 3.0, 2 USB 2.0, 2 Internal USB 2.0
Isolated DIO	16 DI, 16 DO
LED	Power, SDD, WDT
GPIO	16 GPIO
Expansion
PCI	1 PCI, 1 PCIe x16
Mini PCIe	- 1 Mini PCIe Socket (PCIe/ USB/ SIM Card Socket) - 1 Mini PCIe Socket (PCIe/ USB), compatible with mSATA
Graphics
Chipset	Intel® HD 4000
Display Memory	Shared Memory, up to 1.7GB
Interface	VGA : DB-15, up to 1920 x 1200 DVI-D : Up to 1920 x 1200 DisplayPort 1 : Up to 2560 x 1600 DisplayPort 2 : Up to 1920 x 1200 LVDS : Dual Channel 24-bit, up to 1920 x 1200
Storage
SATA	2 SATA III 6Gbps, 2 SATA II 3Gbps
mSATA	1 mSATA (Mini PCIe Type, SATA II 3Gbps)
Storage Expansion	CFast Slot, External Hot-swap, Push-in/ Push-out Ejector
Audio
Audio Codec	Realtek ALC892, 5.1 Channel HD Audio
Audio Interface	Line-out, Mic-in, Front Audio Header
Ethernet
LAN 1	Intel® 82579LM Gigabit LAN, Wake on LAN, PXE Support
LAN 2	Intel® 82574L Gigabit LAN, Wake on LAN, PXE Support
Power
Power Input	3-pin Terminal Block for DC-in：V+, V-, Frame Ground ATX : 2-pin Remote Power On/ Off Switch
Power Input Voltage	DC-in 6V to 36V
Power Adapter	AC to DC +24V/ 5A 120W Max. (Optional)
Protection	Onboard LT4356 for Power Input High Voltage Surge Protection
Other
Trusted Platform Module (TPM)	Optional Infineon SLB9635 supports TPM 1.2, LPC Interface
Watchdog Timer	Reset : 1 to 255 sec/ min Per Step
HW Monitor	Temperature/ Voltages Auto Throttling Control When CPU Overheats
Mechanical
Chassis Construction	Aluminum Housing

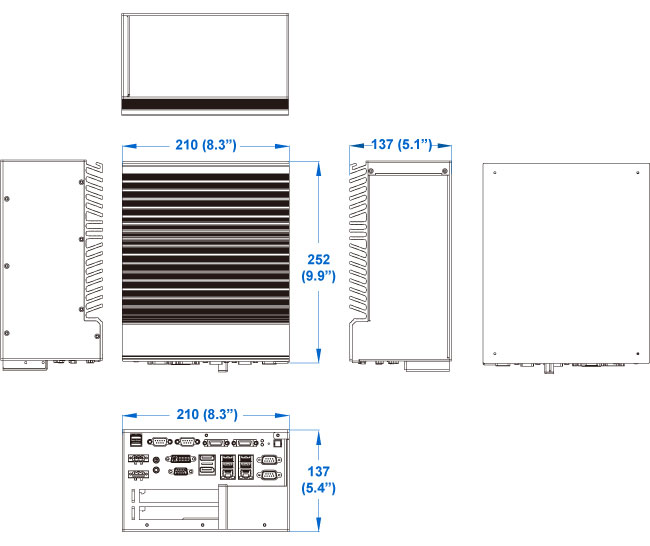

Size (W x D x H)	137mm x 252mm x 210mm (5.4” x 9.9” x 8.3”)
Weight	3.5 kg (7.7 lb)
Mounting	Wallmount by Mounting Bracket
Environment
Operating Temperature	-25°C to 70°C (-13°F to 158°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	10% to 95% Humidity, non-condensing
Relative Humidity	95% at 70°C
Vibration	Random : 5Grms @5Hz to 500Hz according to IEC 60068-2-64 Sinusoidal : 5Grms @5Hz to 500Hz according to IEC 60068-2-64
Shock	Operating, 50Grms, Half-sine 11ms Duration (w/ SSD, according to IEC 60068-2-27)
EMC	CE, FCC
