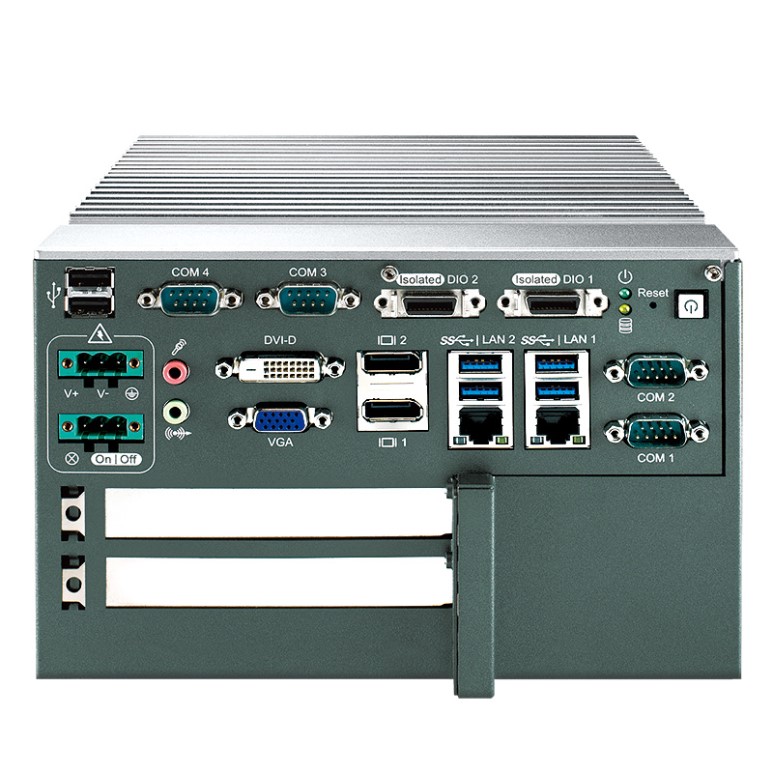

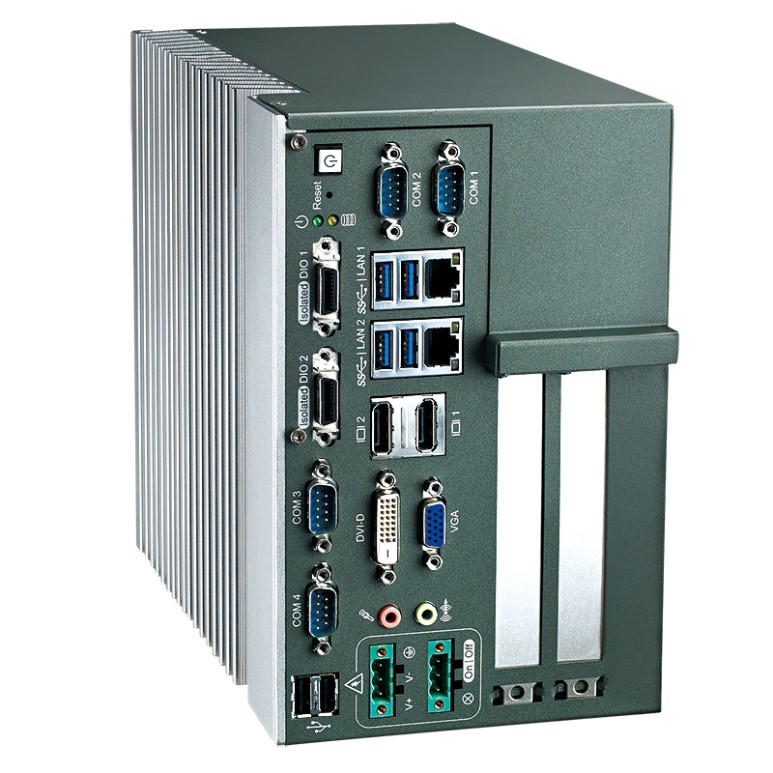

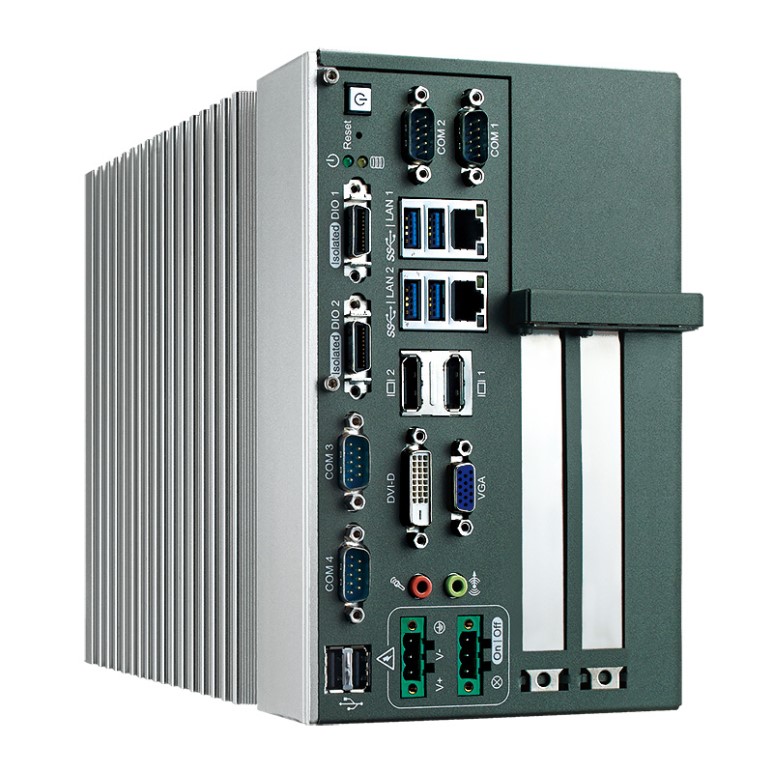

RCS-7220A/Intel® Core™ i7/ i5/ i3 Fanless Robust Computing System

산업용보드 > 1U Rackmount

Features

3rd Gen Intel® Core™ i7/ i5/ i3 Ivy Bridge Mobile Processor

Intel® QM77 Chipset

Supports 2 SO-DIMM DDR3 or DDR3L, up to 16GB

Supports VGA/ DVI-D/ Dual DisplayPort/ LVDS interface, up to 3 independent displays

Fanless, -25°C to 70°C Operating Temperature

2 Gigabit LAN, iAMT 8.0 supported

32 Isolated DIO, 16 GPIO

2 PCIe x8 Slot

4 COM, 4 USB 3.0, 4 USB 2.0

SIM Card Socket for 3G/ 4G/ LTE/ WiFi/ GPRS/ UMTS

2 SATA III 2.5" SSD/ HDD

1 CFast Socket

System
Processor	3rd Generation Intel® Quad Core™ i7/ i5/ i3 Ivy Bridge Processors (6M Cache, up to 3.30 GHz)
Chipset	Intel® QM77
BIOS	AMI
SIO	IT8783F
Memory	2 DDR3 1066/ 1333/ 1600 MHz or DDR3L 1066/ 1333 MHz SO-DIMM, up to 16GB
I/O Interface
Serial	3 COM RS-232, 1 COM RS-232/ 422/ 485
USB	4 USB 3.0, 2 USB 2.0, 2 Internal USB 2.0
Isolated DIO	32 Isolated DIO : 16 DI, 16 DO
LED	Power, HDD
GPIO	16 GPIO (Internal)
Expansion
PCI	2 PCIe x8 Slot
Mini PCIe	2 Mini PCIe Socket : - 1 Mini PCIe for PCIe/ USB/ Internal SIM Card - 1 Mini PCIe for PCIe/ USB/ mSATA
Graphics
Chipset	Intel® HD 4000
Display Memory	Shared Memory, up to 1.7GB
Interface	VGA : DB-15, up to 1920 x 1200 DVI-D : Up to 1920 x 1200 DisplayPort 1 : Up to 2560 x 1600 DisplayPort 2 : Up to 1920 x 1200 LVDS : Dual Channel 24-bit, up to 1920 x 1200
Storage
SATA	- 2 SATA III (6Gbps) - 2 SATA II (3Gbps)
mSATA	1 mSATA (Mini PCIe Type, SATA II 3Gbps)
Storage Device	- 1 CFast Socket, Push-in/ Push-out Ejector (Internal) - 2 2.5" SSD/ HDD Bracket (Internal)
Audio
Audio Codec	Realtek ALC892, 5.1 Channel HD Audio
Audio Interface	1 Mic-in, 1 Line-out
Ethernet
LAN 1	Intel® 82579LM Gigabit LAN supports iAMT 8.0
LAN 2	Intel® 82574L Gigabit LAN
Power
Power Input	6V to 36V, DC-in
Power Interface	3-pin Terminal Block : V+, V-, Frame Ground
Remote Switch	3-pin Terminal Block
Surge Protection	Up to 80V/1ms Transient Power
Others
Trusted Platform Module (TPM)	Optional Infineon SLB9635 supports TPM 1.2, LPC Interface
Watchdog Timer	Reset : 1 to 255 sec./min. per step
Smart Management	Wake on LAN, PXE supported
HW Monitor	Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical

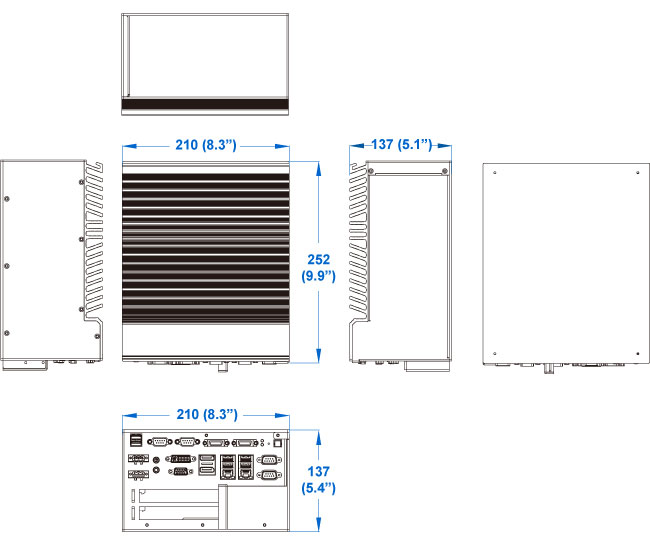

Dimensions (W x L x H)	137mm x 252mm x 210mm (5.4” x 9.9” x 8.3”)
Weight	3.5 kg (7.7 lb)
Mounting	Wallmount by Mounting Bracket
Environment
Operating Temperature	-25°C to 70°C (-13°F to 158°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	10% to 95% Humidity, non-condensing
Relative Humidity	95% at 70°C
Vibration	- IEC 60068-2-64 - SSD : 5Grms, 5Hz to 500Hz, 3 Axis
Shock	- IEC 60068-2-27 - SSD : 50G @ wallmount, Half-sine, 11ms
EMC	CE, FCC
