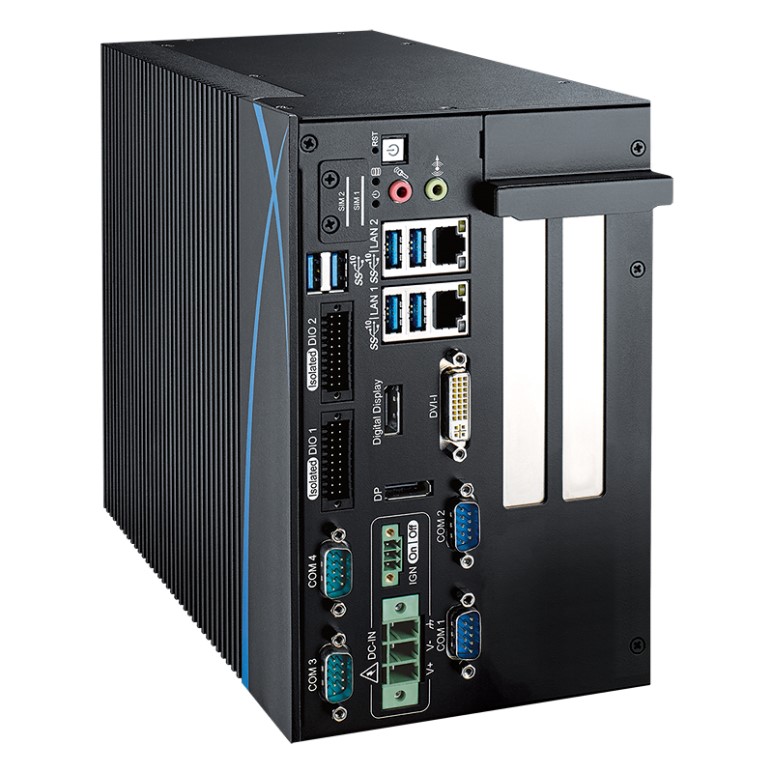

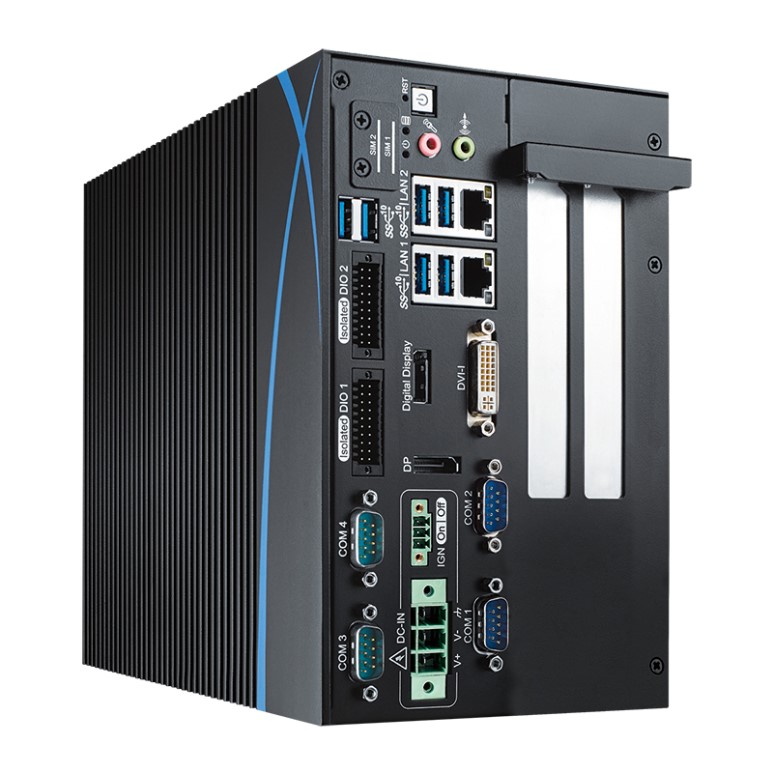

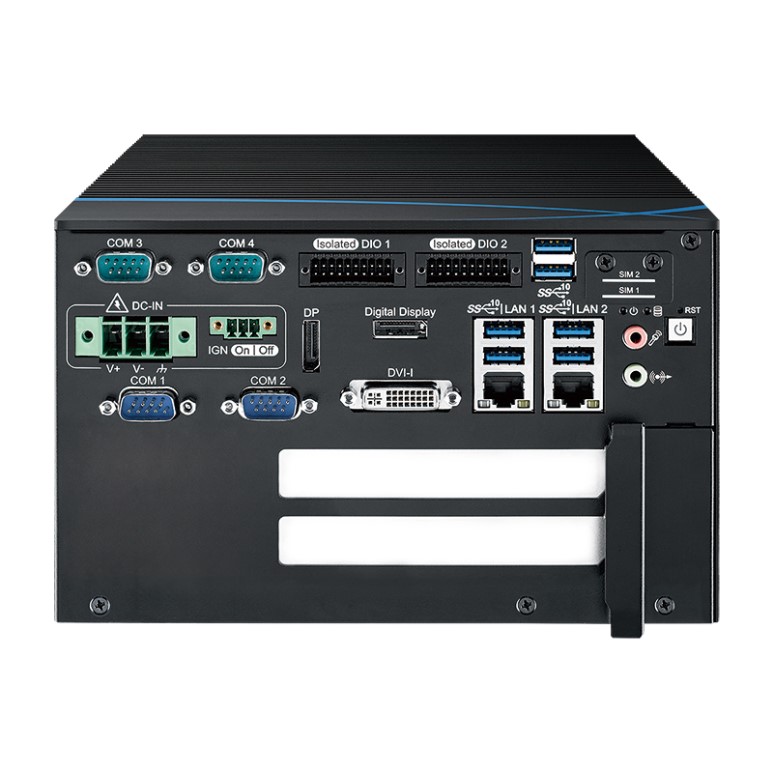

RCX-1200/Workstation-grade Intel® Xeon®/Core™ i7/i5/i3 (Coffee Lake) Fanless

산업용보드 > 1U Rackmount

Features

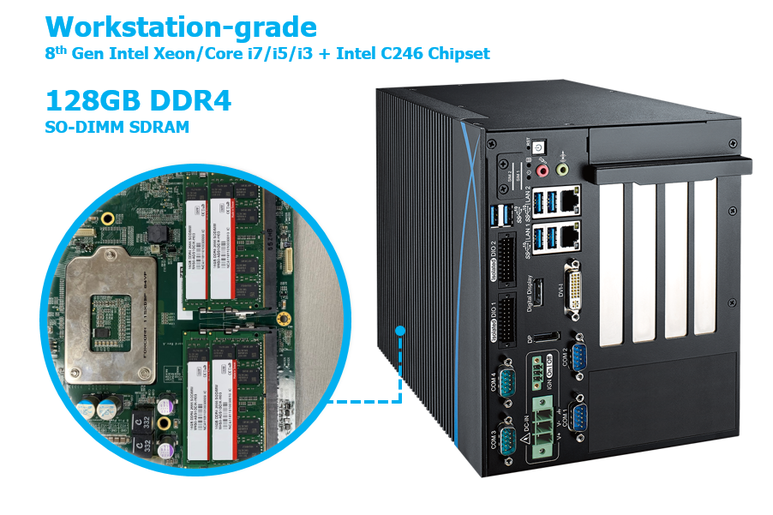

6 cores 8th generation Intel® Xeon®/Core™ i7/i5/i3 (Coffee Lake-S) processor with workstation-grade Intel® C246 chipset

4 DDR4 2666MHz memory, up to 128GB (ECC/Non-ECC)

6 ports external USB 3.1 Gen 2 support up to 10Gbps data transfer

Rugged & Fanless design, -40°C to 75°C operating temperature

Multiple DVI-I and DisplayPort display interface, up to 3 independent HD displays

2 independent GigE LAN, iAMT 12.0 supported

2 external SIM sockets for WiFi/4G/3G/LTE/GPRS/UMTS

2 PCIe/PCI slots, max 300W Power Budget for independent graphics operation

32 Isolated DIO, 4 COM RS-232/422/485

2 M.2 sockets : 1 M.2 Key M, 1 M.2 Key E

6V to 36V DC Power Input with 80V Surge Protection

Configurable Ignition Power Control

Versatile Configurations

Triple independent displays : DVI, HDMI & DisplayPort, max 4K resolution

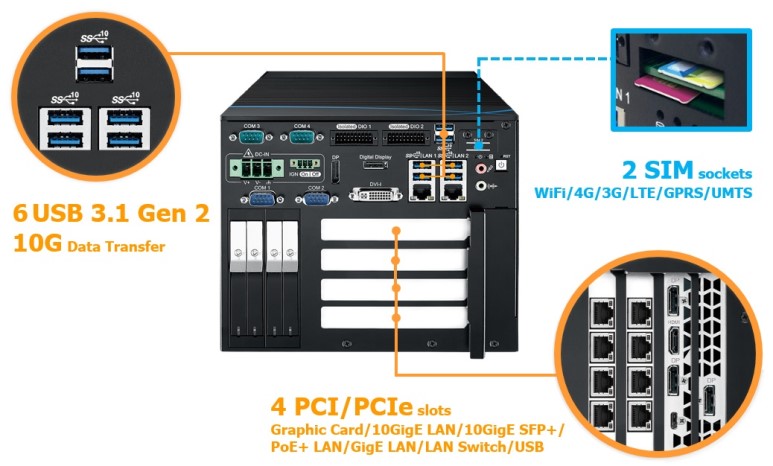

Dual independent GigE LAN, 6 external 10G USB 3.1 Gen 2

2 SIM sockets for multiple WiFi/4G/3G/LTE/GPRS/UMTS

32 Isolated DIO, 4 COM RS-232/422/485

Stoage : 4 front-access 2.5" SSD trays, 1 M.2

Expansion : 4 PCI/PCIe slots, 2 Mini PCIe/mSATA, 1 M.2

Optimized Integration

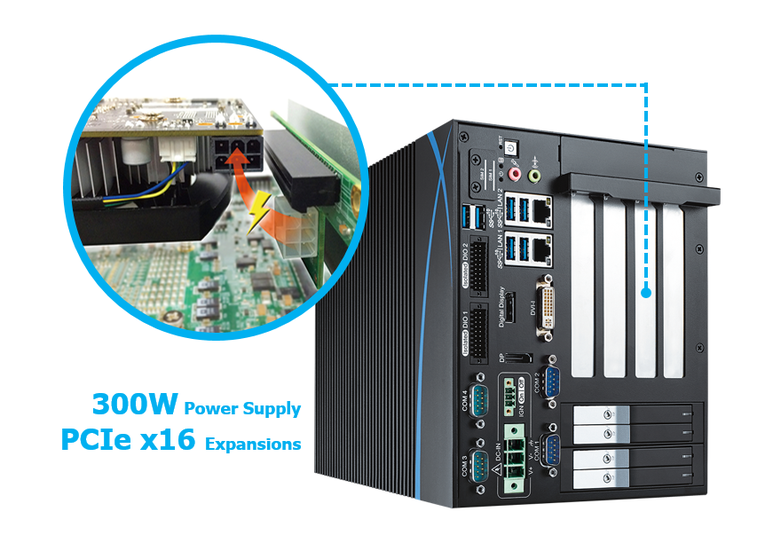

Max 300W power budget for PCIe x16 expansion

Wide range power input with Surge Protection

Programmable Ignition Power Control

Smart Circuit Protection

Smart Manageability : iAMT 12.0, TPM 2.0, PXE, Wake on LAN, Remote Power Switch

User-friendly Installation & Maintenance

Trusted Reliability

RAID 0, 1, 5, 10 Data Protection

Fanless -40°C to 75°C operation

6V to 36V DC-in with 80V Surge Protection

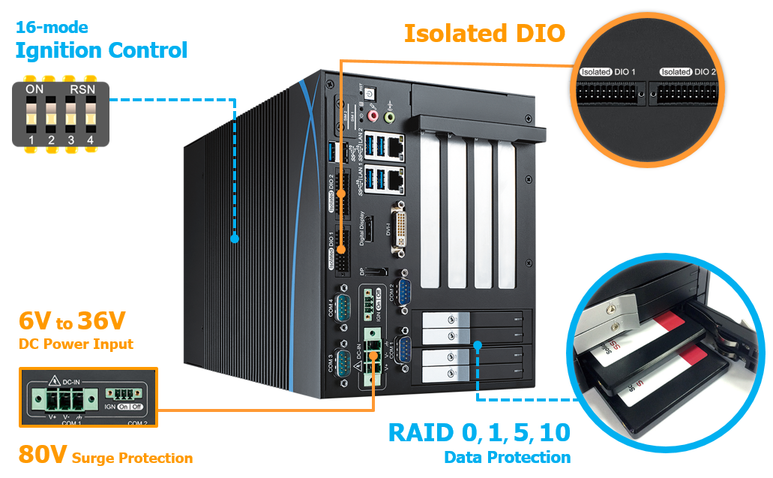

16-mode Ignition Power Control

Always-on non-stop wireless data transfer

Anti-shock, Anti-vibration

EN50155 & EN50121-3-2 compliant

Specifications

System
Processor	6 cores Intel® Xeon®/Core™ i7/i5/i3 processor (Coffee Lake-S)
Chipset	Intel® C246 chipset
BIOS	AMI
SIO	IT8786E
Memory	4 DDR4 2666MHz SO-DIMM, up to 128GB
I/O Interface
Serial	4 COM RS-232/422/485 (ESD 8KV)
USB	- 6 USB 3.1 Gen 2 (External) - 1 USB 2.0 (Internal)
Isolated DIO	32 Isolated DIO : 16 DI, 16 DO
LED	Power, HDD, wireless
SIM Card	2 external SIM sockets
Expansion
Mini PCIe	2 Full-size Mini PCIe sockets for PCIe/USB/external SIM/mSATA
PCI/PCIe	2 PCI/PCIe expansion slots
M.2	1 M.2 Key E socket
Graphics
Graphics Processor	Intel® UHD graphics P630/630
Interface	- 1 DVI-I : Up to 1920 x 1080 @60Hz - 2 DisplayPort : Up to 4096 x 2304 @60Hz
Storage
SATA	4 SATA III (6Gbps) support S/W RAID 0, 1
mSATA	2 SATA III (Mini PCIe type, 6Gbps)
Storage Device	- 1 M.2 Key M socket - 2 2.5" SSD/HDD brackets
Audio
Audio Codec	Realtek ALC892, 5.1 Channel HD Audio
Audio Interface	1 Mic-in, 1 Line-out
Ethernet
LAN 1	Intel® I219LM GigE LAN supports iAMT 12.0
LAN 2	Intel® I210 GigE LAN
Power
Power Input	6V to 36V, DC-in
Power Interface	3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control	16 mode (Internal)
Remote Switch	3-pin Terminal Block
Surge Protection	Up to 80V/1ms Transient Power
Others
TPM	Optional Infineon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer	Reset : 1 to 255 sec./min. per step
Smart Management	Wake on LAN, PXE supported
HW Monitor	Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Software Support
OS	Windows 10, Linux
Mechanical
Dimension	250.4mm x 210.0mm x 131.4mm (9.86" x 8.27" x 5.17")
Weight	4.3 kg (9.5 lb)
Mounting	Wallmount by mounting bracket
Environment
Operating Temperature	35W TDP CPU : -40°C to 75°C (-40°F to 167°F) 65W TDP CPU : -40°C to 55°C (-40°F to 131°F) 80W TDP CPU : -40°C to 45°C (-40°F to 113°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	5% to 95% Humidity, non-condensing
Relative Humidity	95% at 75°C
Shock	- IEC 60068-2-27 - SSD : 50G @ wallmount, Half-sine, 11ms
Vibration	- IEC 60068-2-64 - SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC	CE, FCC, EN50155, EN50121-3-2
