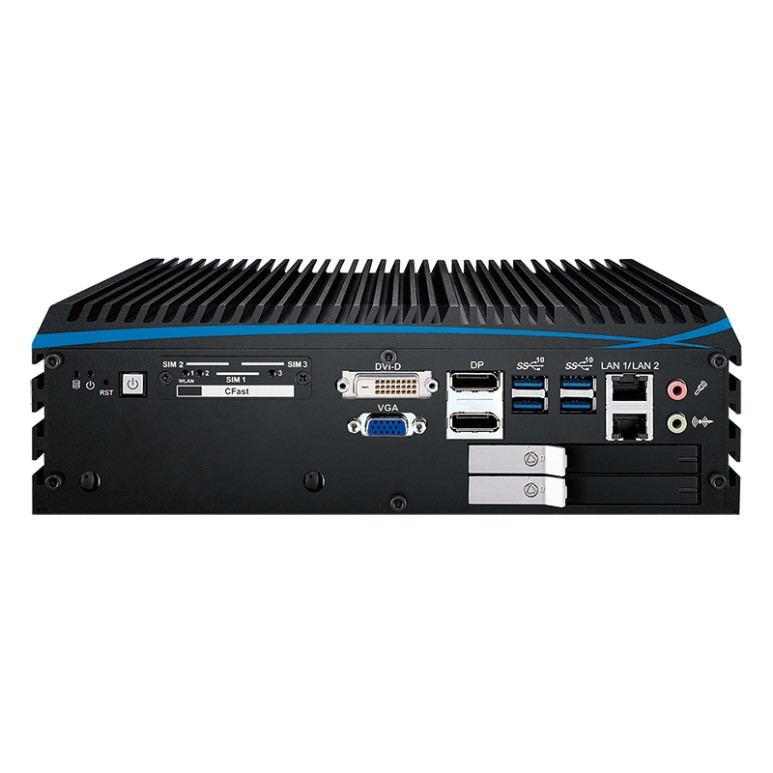

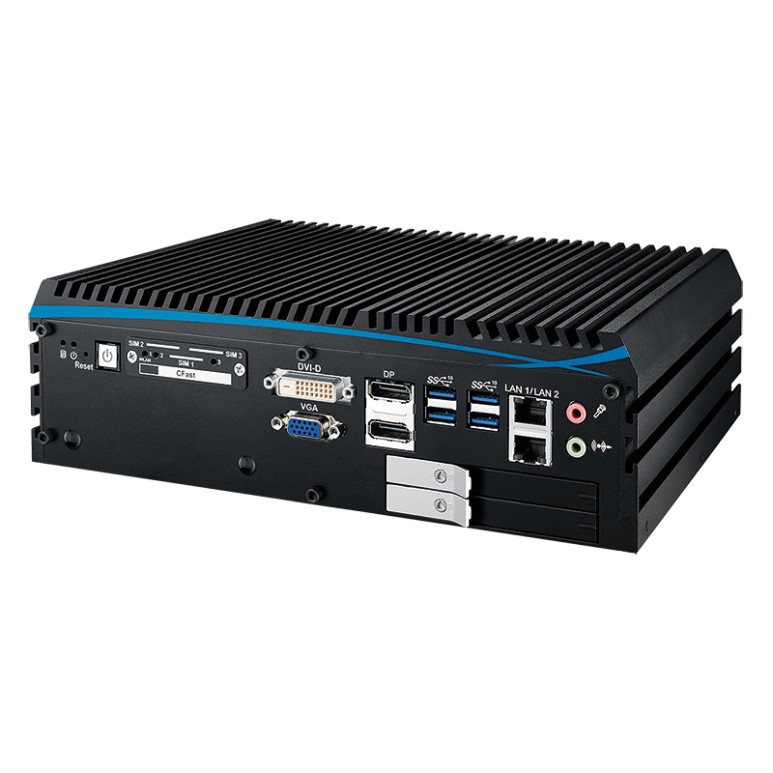

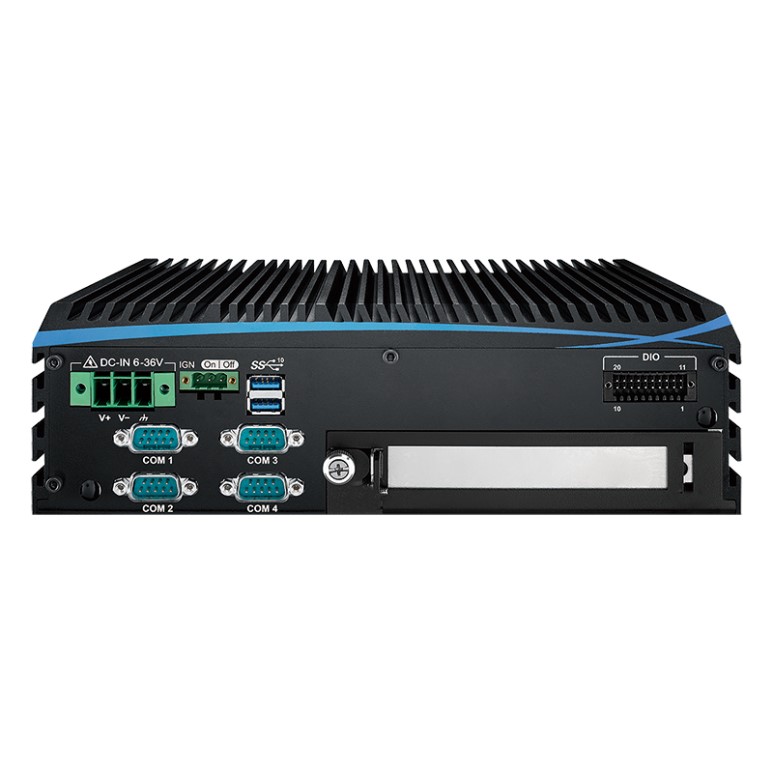

| ECX-1101/Intel® Xeon®/Core™ i7/i5/i3 processor (Coffee Lake) Expandable Fanless Embedded System | 산업용보드 > 1U Rackmount | 0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

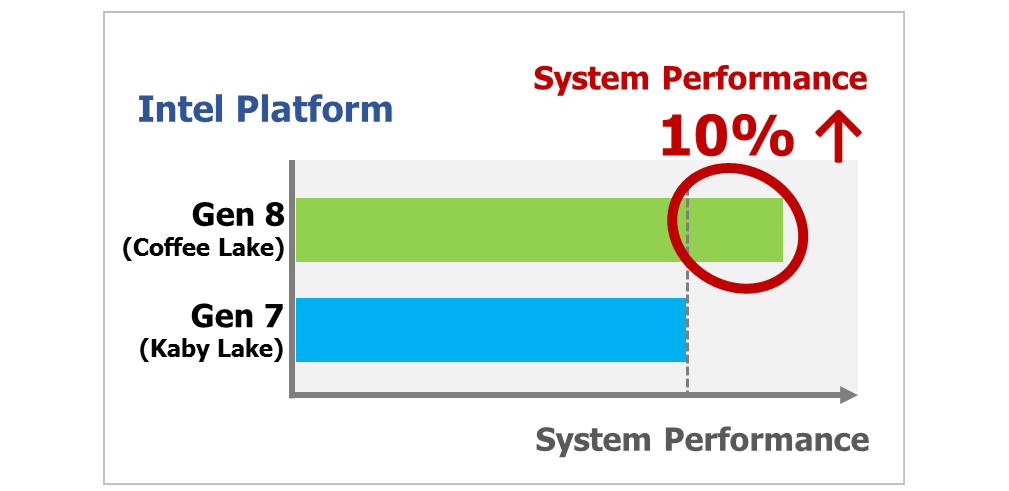

    Feature Highlights Worksation-grade Performance 8th Generation Intel® Coffee Lake workstation platform 6 cores Intel® Xeon®/Core i7/i5/i3 processor running with Intel® C246 chipsetl More than 10% system performance enhanced Integrated USB 3.1 supports up to 10Gbps data transfer

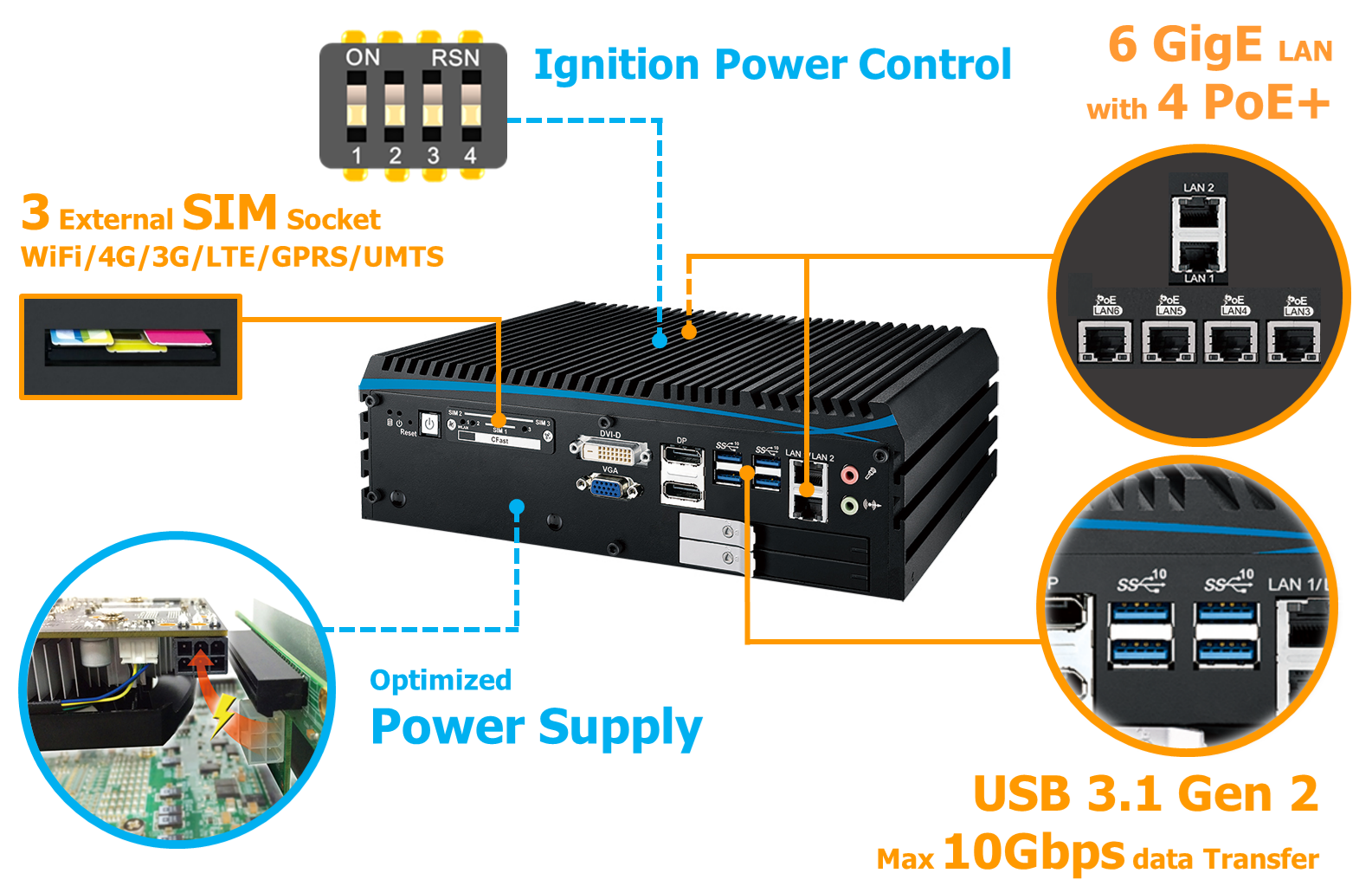

System-oriented Integration Wide range power input with Surge Protection Programmable Ignition Power Control Smart Circuit Protection RAID Data Protection Max 200W power budget for PCIe x16 expansion Smart Manageability : iAMT 12.0, TPM 2.0, PXE, Wake on LAN, Remote Power Switch

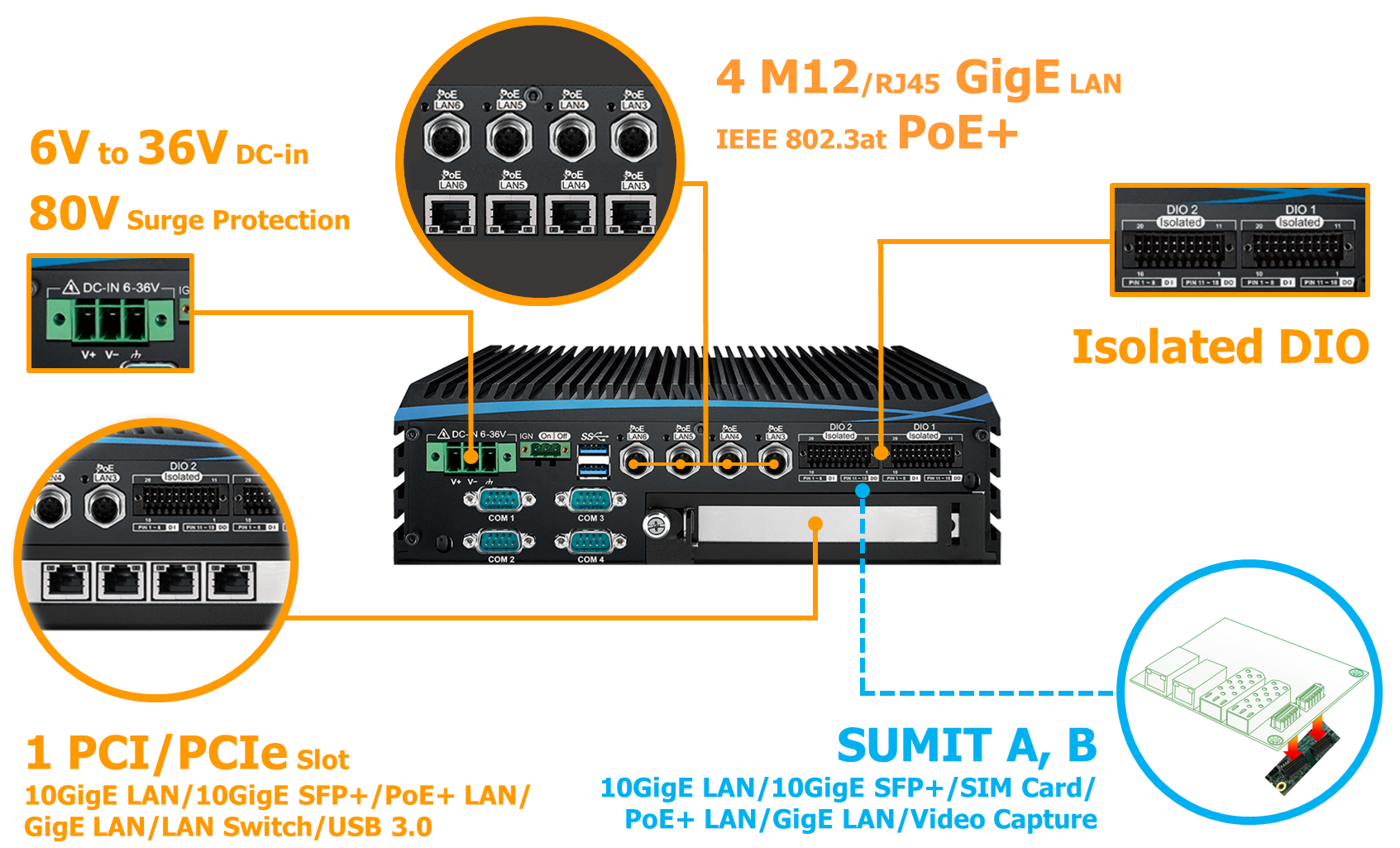

Flexible Configuration 6 Independent GigE LAN with 4 IEEE 802.3at PoE+ 3 SIM sockets for WiFi/4G/3G/LTE/GPRS/UMTS 6 external USB 3.1 supports up to 4 ports 10Gbps USB data transfer Storage : 2 2.5” SSD trays, 1 CFast Socket, 2 M.2 sockets Expansion : 1 PCI/PCIe slots, 2 Mini PCIe/mSATA, 1 M.2, optional SUMIT A, B

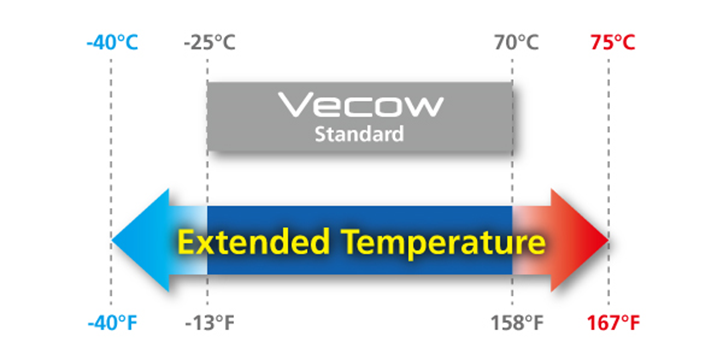

Trusted Reliability Multiple rugged M12 PoE+ connections Fanless -40°C to 75°C Operation 6V to 36V DC-in with 80V Surge Protection Ignition Power Control Anti-shock, Anti-vibration EN50155 & EN50121 compliant
Specifications
