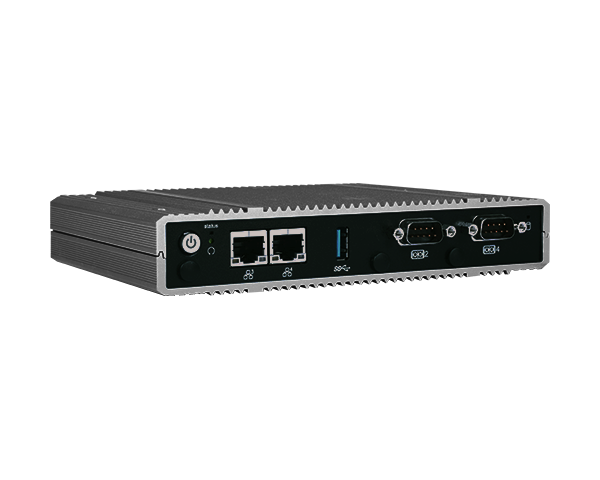

| EC700-BT3054/Fanless Embedded System, Intel Atom® E3800, DDR3L, 2 Mini PCIe, 1 DVI-I or 1 VGA | 산업용보드 > 1U Rackmount | 0 |
|---|---|---|
 Intel Atom® Processor E3800 4GB/2GB DDR3L onboard 1x 2.5" SATA drive bay 4x Gigabit LAN ports Supports 3G/4G and GPRS application 15-Year CPU Life Cycle Support ? System Processor Intel Atom® E3845, Quad Core, 2M Cache, 1.91GHz, 10W Intel Atom® J1900, Quad Core, 2M Cache, 2GHz (2.41GHz), 10W 22nm Process Technology Memory 4GB Memory Onboard (E3845) 2GB Memory Onboard (J1900) Single Channel DDR3L 1333MHz (E3845) Single Channel DDR3L 1066MHz (J1900 Graphics Controller Intel® HD Graphics Display 1 x VGA/DVI-I (DVI-I available upon request) DVI: resolution up to 1920x1080 @ 60Hz VGA: 24-bit, resolution up to 2560x1600 @ 60Hz Dual Displays 1 x VGA/DVI-I Storage External/Internal 1 x 2.5" SATA 2.0 Drive Bay 4GB/8GB/16GB/32GB eMMC Onboard (available upon request) Expansion Interface 1 x Full-size Mini PCIe (PCIe/USB/3G/GPRS) 1 x Full-size Mini PCIe (SATA) 1 x SIM 1 x microSD Ethernet Controller 4 x Intel® I210AT PCIe (10/100/1000Mbps) LED Indicators 1 x HDD LED 1 x Status LED Front I/O Ethernet 2 x GbE (RJ-45) Serial 2 x RS-232/422/485 (DB-9) (one supports 8-bit DIO) USB 1 x USB 3.0 (type A) Buttons 1 x Power Button 1 x Reset Button Wi-Fi Antenna 3 x Wi-Fi Module Antenna Hole Rear I/O Ethernet 2 x GbE (RJ-45) Serial 1 x RS232/422/485 (DB-9) USB 4 x USB 2.0 (type A) Display 1 x VGA (DB-15) or 1 x DVI-I Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Power Type Wide Range 9~36V Connector DC Jack OS Support OS Support Windows 7, WES 7, Windows 8.1, WES 8 Ubuntu 14.04LTS Environment Operating Temperature E3845: -20°C~60°C (SSD/mSATA), 0°C~50°C (HDD) J1900: 0°C~60°C (SSD/mSATA), 0°C~50°C (HDD) Storage Temperature -20°C~85°C Mechanism Construction Aluminum + Metal Aluminum Mounting Wall/VESA/DIN Rail mount Dimensions (W x H x D) 180mm x 33mm x 121.2mm (W x H x D) Weight 800 g Standards and Certifications Shock Operating: 5G Non-operating: 10G Vibration Operating: sine 5~500Hz, 1G Non-operating: sine 10~500Hz, 3G Certifications CE, FCC Class B, RoHS Packing List Packing List 1 EC700-BT3054 system unit 6 mounting screws for Mini PCIe module 1 Quick Installation Guide 1 CD disk includes: Drivers / Manual
