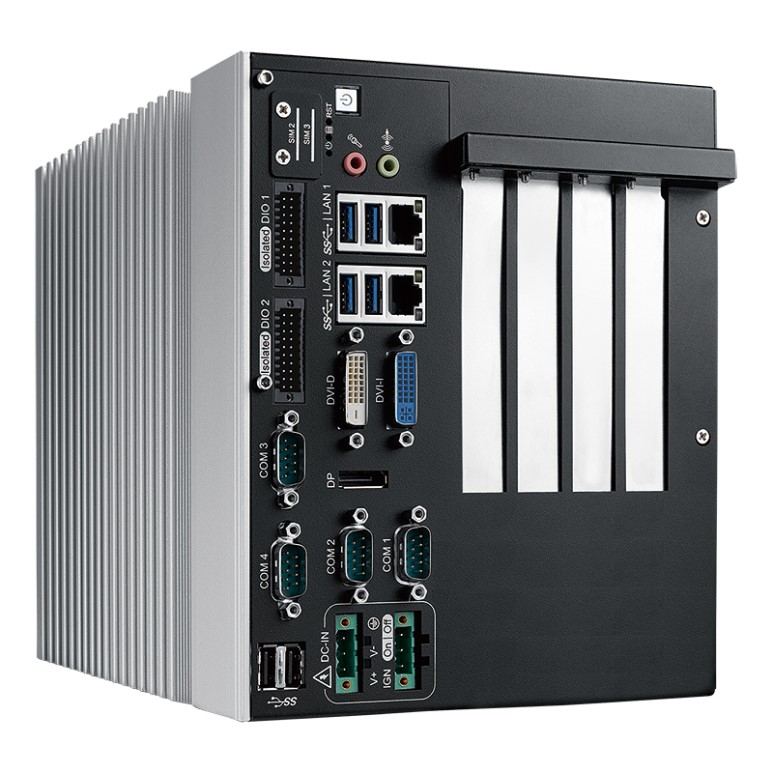

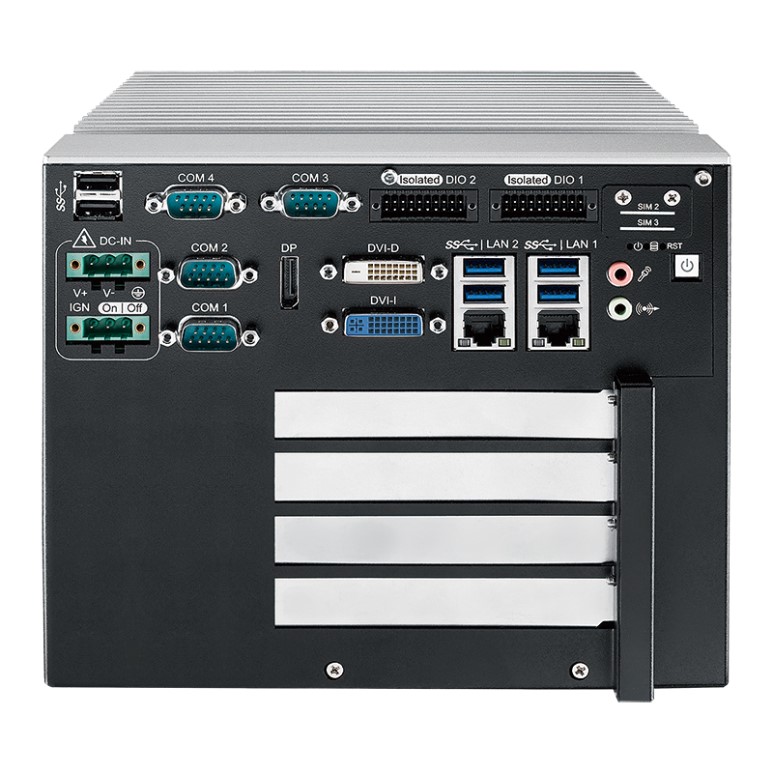

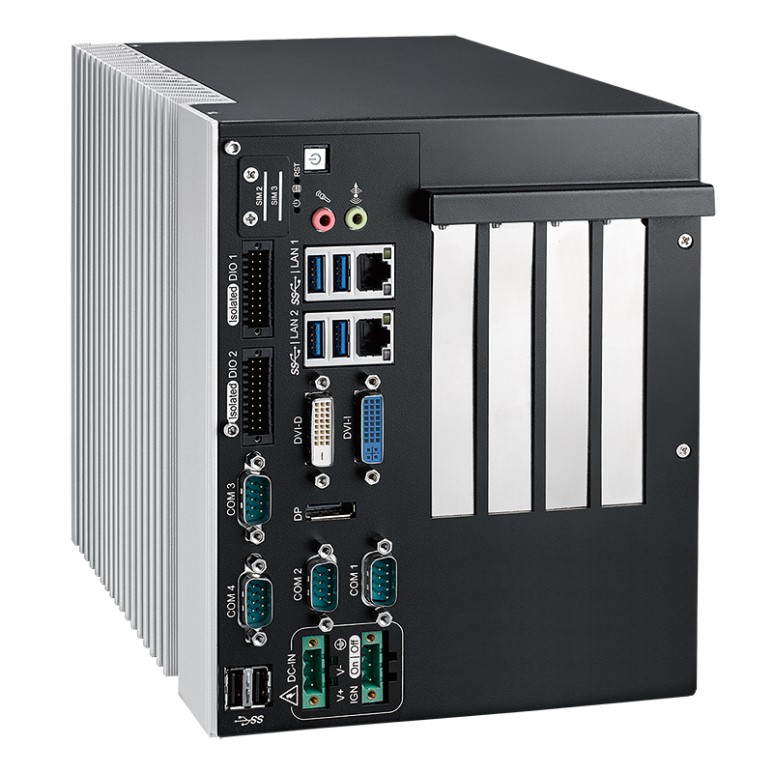

RCS-9404/Workstation-grade 7th Generation Intel® Xeon®/Core™ i7/i5/i3 Fanless System

산업용보드 > 1U Rackmount

Features

LGA 1151 Socket supports workstation-grade 7th generation Intel® Xeon®/Core™ i7/i5/i3 Processor (Kaby Lake) with C236

Max 250W Power Budget for PCI/PCIe expansions

Onboard DVI-I, DVI-D and DisplayPort display interface, up to 3 independent HD displays

2 DDR4 2133MHz Memory, up to 32GB (ECC/Non-ECC)

Fanless, -40°C to 75°C Operating Temperature

6V to 36V DC-in with 80V Surge Protection

Configurable Ignition Power Control

2 Independnet Gigabit LAN supports iAMT 11.0

3 SIM Card Socket for 3G/4G/LTE/WiFi/GPRS/UMTS

4 2.5" SSD/ HDD support software RAID 0, 1, 5, 10

Front-access : 2 SIM, 1 CFast, 6 USB 3.0, 4 COM

4 PCI

7 USB 3.0, 4 COM, 3 Mini PCIe

32 Isolated DIO

Specifications

System
Processor	Quad Core Intel® Xeon®/Core™ i7/i5/i3 Processor (Kaby Lake-S/Skylake-S)
Chipset	Intel® C236
BIOS	AMI
SIO	IT8786E
Memory	2 DDR4 2133MHz SO-DIMM, up to 32GB (ECC/Non-ECC)
I/O Interface
Serial	4 COM RS-232/422/485
USB	- 7 USB 3.0 (6 External, 1 Internal) - 2 USB 2.0 (Internal)
Isolated DIO	32 Isolated DIO : 16 DI, 16 DO
LED	Power, HDD
SIM Card	3 SIM Card Socket (2 External, 1 Internal)
Expansion
Mini PCIe	3 Mini PCIe Socket : - 2 Full-size Mini PCIe for PCIe/USB/External SIM Card - 1 Full-size Mini PCIe for PCIe/USB/Internal SIM Card/mSATA
PCI	4 PCI Slot
Graphics
Graphics Processor	Intel® HD Graphics 630/530
Interface	- DVI-I : Up to 1920 x 1200 @ 60Hz - DVI-D : Up to 1920 x 1200 @ 60Hz - DisplayPort : Up to 4096 x 2304 @ 60Hz
Storage
SATA	4 SATA III (6Gbps) support S/W RAID 0, 1, 5, 10
mSATA	1 SATA III (Mini PCIe Type, 6Gbps)
Storage Device	- 1 CFast Socket (Internal) - 4 Internal 2.5" SSD/ HDD Bracket
Audio
Audio Codec	Realtek ALC892, 5.1 Channel HD Audio
Audio Interface	1 Mic-in, 1 Line-out
Ethernet
LAN 1	Intel® I219LM Gigabit LAN supports iAMT 11.0
LAN 2	Intel® I210 Gigabit LAN
Power
Power Input	6V to 36V, DC-in
Power Interface	3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control	16 Mode (Internal)
Remote Switch	3-pin Terminal Block
Surge Protection	Up to 80V/1ms Transient Power
Others
TPM	Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer	Reset : 1 to 255 sec./min. per step
Smart Management	Wake on LAN, PXE supported
HW Monitor	Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Software Support
OS	Windows 10, Windows 8.1, Windows 7, Linux
Mechanical
Dimension (W x L x H)	172mm x 250mm x 210mm (6.8" x 9.8" x 8.3")
Weight	RCS-9000H : 5 kg (11 lb) RCS-9000 : 3.8 kg (8.4 lb)
Mounting	Wallmount by mounting bracket
Environment
Operating Temperature	35W TDP CPU : - Core™ i7, i5, i3 : -40°C to 75°C (-40°F to 167°F) - Xeon® E3-1268L v5 : -40°C to 70°C (-40°F to 158°F) 65W TDP CPU : Core™ i7, i5, i3 : -40°C to 55°C (-40°F to 131°F) 80W TDP CPU : Xeon® E3-1275 v6, E3-1275 v5, E3-1225 v5 : -40°C to 45°C (-40°F to 113°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	5% to 95% Humidity, non-condensing
Relative Humidity	95% at 70°C
Shock	- IEC 60068-2-27 - SSD : 50G @ wallmount, Half-sine, 11ms
Vibration	- IEC 60068-2-64 - SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC	CE, FCC, EN50155, EN50121-3-2
