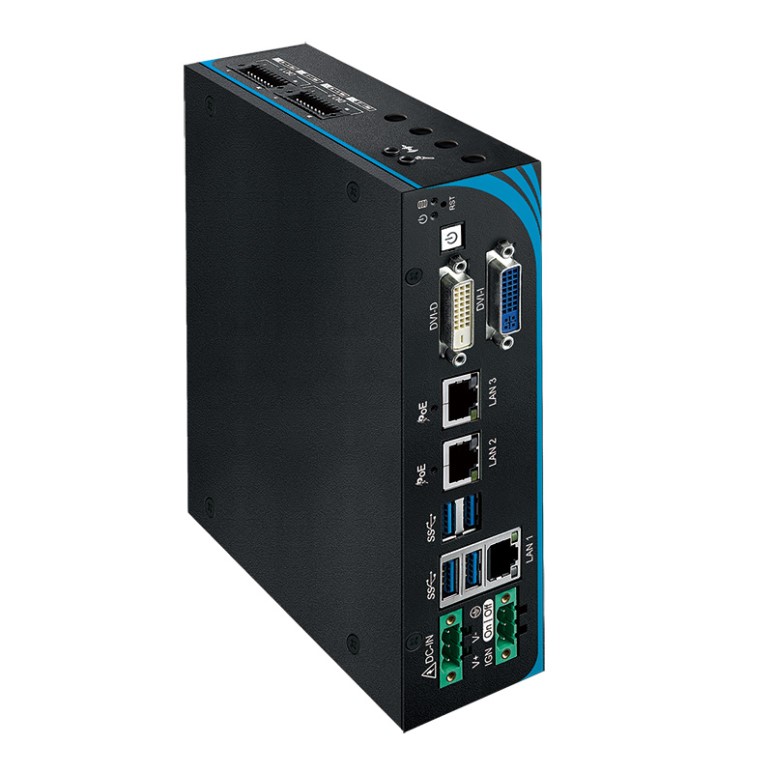

ARS-2000L/7th Generation Intel Core i7/i5/i3 U-series SoC(Kaby Lake/Skylake) Compact Embedded Box PC

산업용보드 > 1U Rackmount

Features

7th Generation Intel® Core™ i7/i5/i3 U-series SoC (Kaby Lake-U/Skylake-U)

Ultra-compact, Fanless -40°C to 70°C Operation

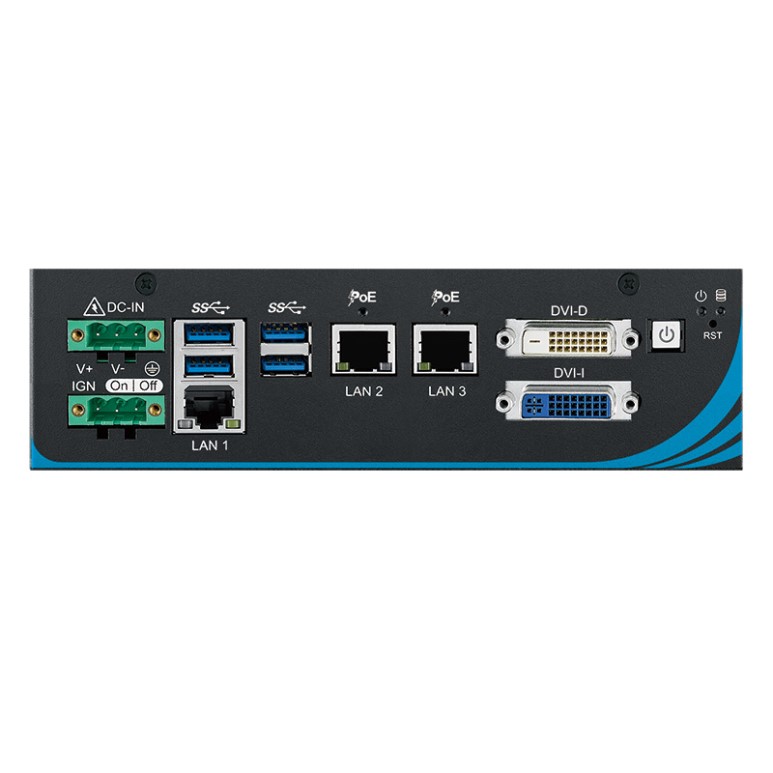

3 Independent GigE LAN with 2 IEEE 802.3at PoE+

Mounting : DIN Rail, Wallmount

4 USB 3.0, 2 SATA III, 2 Mini PCIe

Supports DVI-I and DVI-D dual HD displays

External SIM Socket for WiFi/3G/4G/LTE/GPRS/UMTS

6V to 36V DC-in with 80V Surge Protection

2 COM RS-232/422/485 with 1 Isolated COM

32 GPIO, Ignition Power Control

Specifications

System
Processor	Intel® Core™ i7/i5/i3 U-series Processor (Kaby Lake-U/Skylake-U)
Chipset	Intel® SoC
BIOS	AMI
SIO	IT8786E
Memory	2 DDR4 2133MHz SO-DIMM, up to 32GB
OS	Windows 10, Windows 8.1, Windows 7, Linux (Windows 8.1 & 7 are not available for Kaby Lake)
I/O Interface

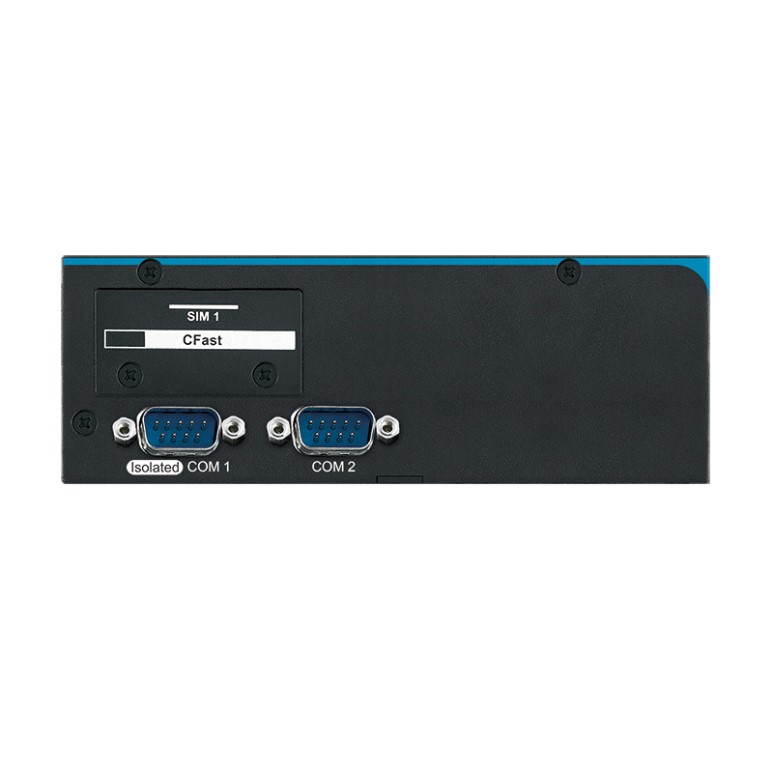

Serial	- 1 Isolated COM RS-232/422/485 (2.5kV Isolation) - 1 COM RS-232/422/485
USB	4 USB 3.0 (External)

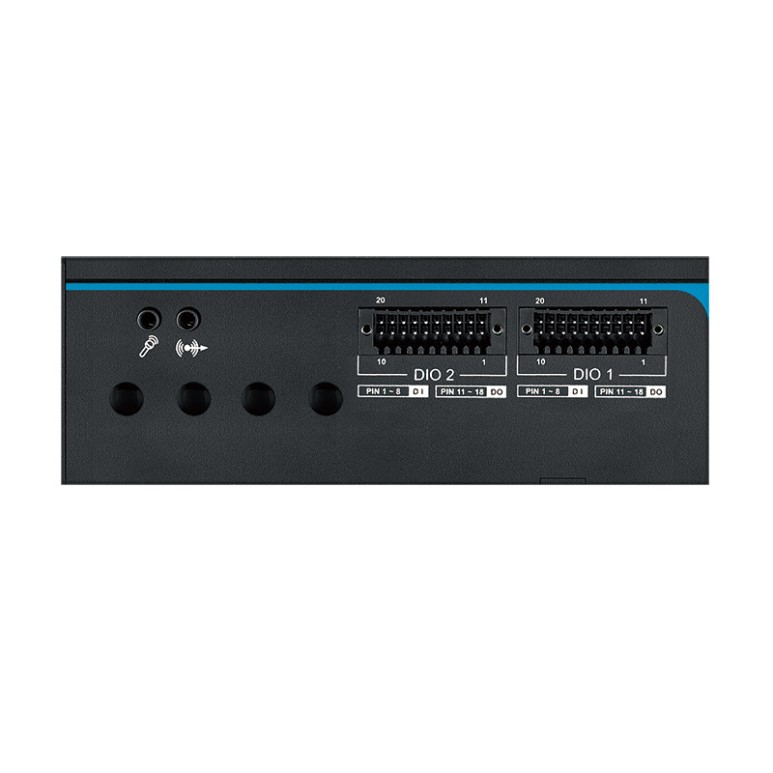

GPIO	32 GPIO
LED	Power, HDD, PoE, Wireless
SIM Card	1 SIM Card Socket (External)
Expansion
Mini PCIe	2 Mini PCIe Socket : - 1 Full-size for PCIe/USB/External SIM Card/mSATA - 1 Full-size for PCIe/USB/mSATA
Graphics
Processor	Intel® HD Graphics 620/520
Interface	- DVI-I : Up to 1920 x 1200 @ 60Hz - DVI-D : Up to 1920 x 1200 @ 60Hz
Storage
SATA	2 SATA III support S/W RAID 0, 1 : - 1 SATA III (6Gbps) - 1 SATA III co-lay with Mini PCIe (6Gbps)
mSATA	1 SATA III co-lay with SATA (Mini PCIe Type, 6Gbps)
Storage Device	- 1 CFast Socket, Push-in/Push-out Ejector - 2 2.5" SSD/HDD Bracket (Internal)
Audio
Audio Codec	Realtek ALC892, 5.1 Channel HD Audio
Audio Interface	1 Mic-in, 1 Line-out
Ethernet
LAN 1	Intel® I219LM GigE LAN supports iAMT 11.0
PoE
LAN 2	GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210 with Power On/Off Control
LAN 3	GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210 with Power On/Off Control
Power
Power Input	6V to 36V, DC-in
Power Interface	3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control	16 Mode (Internal)
Remote Switch	3-pin terminal block : On, Off, IGN
Surge Protection	Up to 80V/1ms Transient Power
Others
TPM	Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer	Reset : 1 to 255 sec./min. per step
Smart Management	Wake on LAN, PXE supported
HW Monitor	Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical
Dimension (W x L x H)	186mm x 147mm x 54mm (7.3” x 5.8” x 2.1”)
Weight	1.8 kg (3.97 lb)
Mounting	- Wallmount by mounting bracket (8.6" x 5.8") - Wallmount Kit (optional, 9.7" x 2.0") - DIN Rail Mount (optional)
Environment
Operating Temperature	-40°C to 70°C (-40°F to 158°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	5% to 95% Humidity, non-condensing
Relative Humidity	95% @ 70°C
Shock	- IEC 60068-2-27 - SSD : 50G @ wallmount, Half-sine, 11ms
Vibration	- IEC 60068-2-64 - SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC	CE, FCC, EN50155, EN50121-3-2
