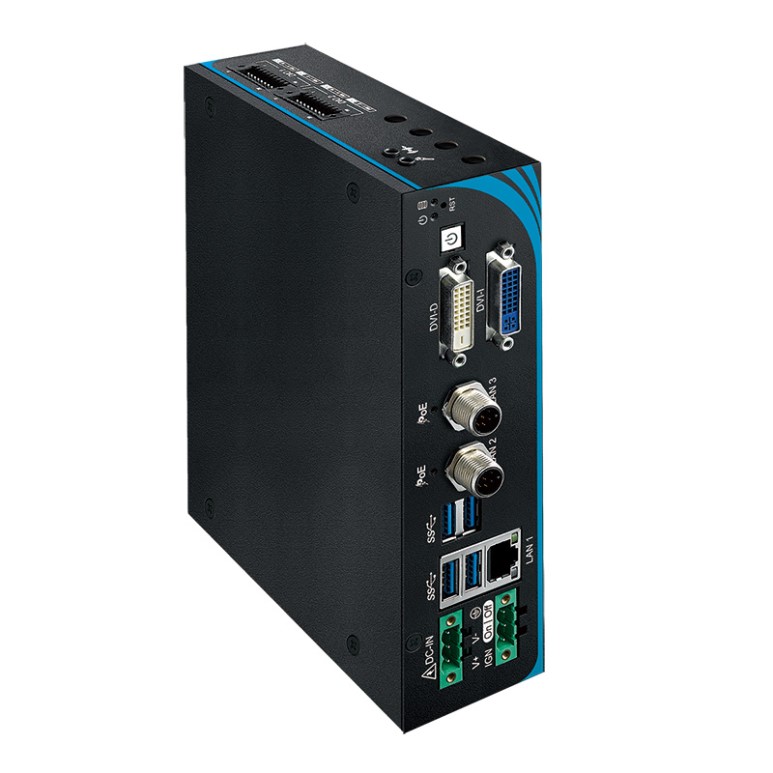

| ARS-2000ML(M12)/7th Generation Intel Core i7/i5/i3 U-series SoC Compact Embedded Box PC | 산업용보드 > 1U Rackmount | 0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

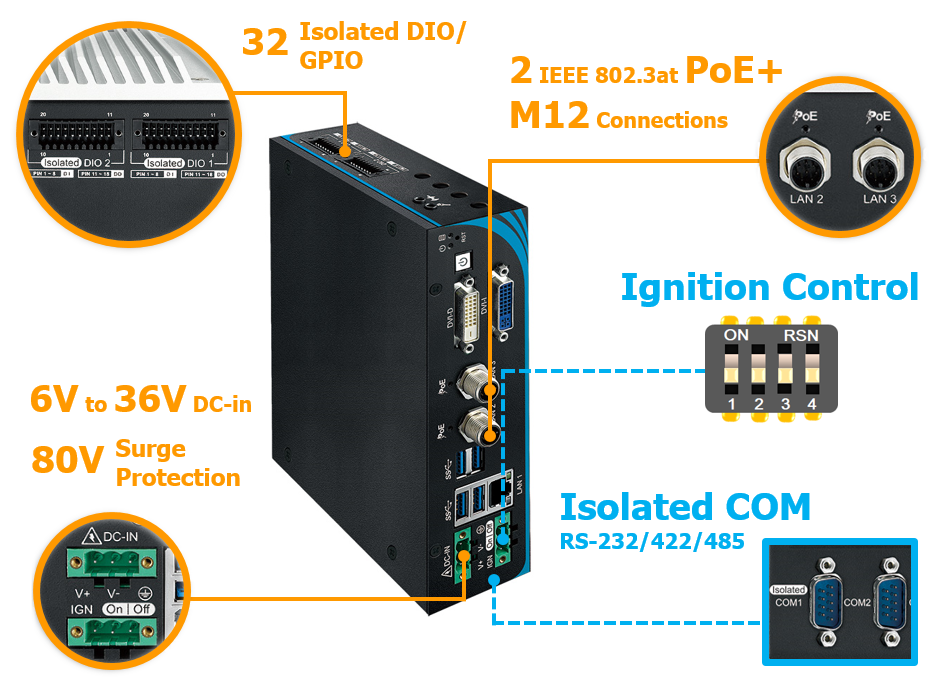

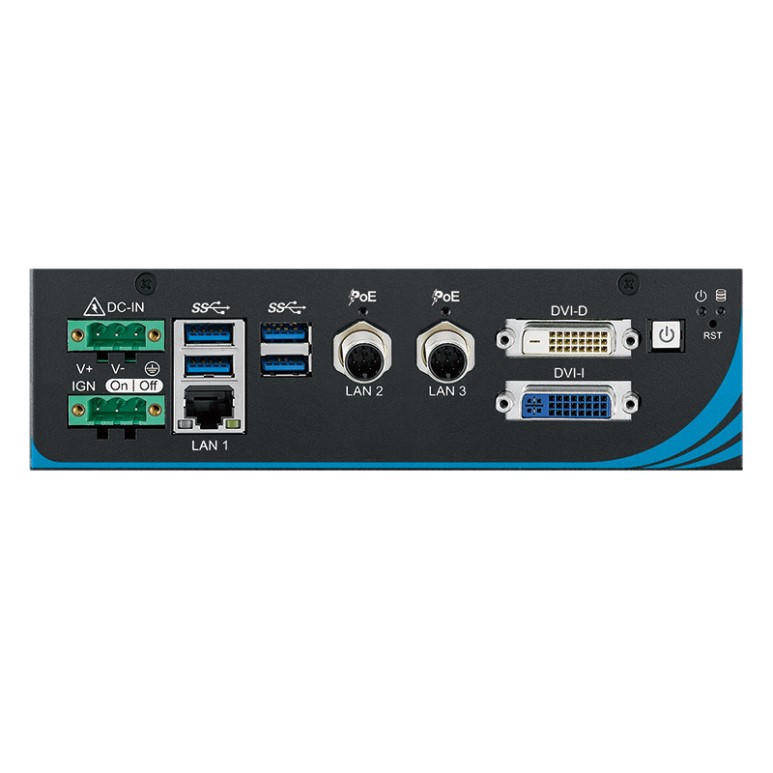

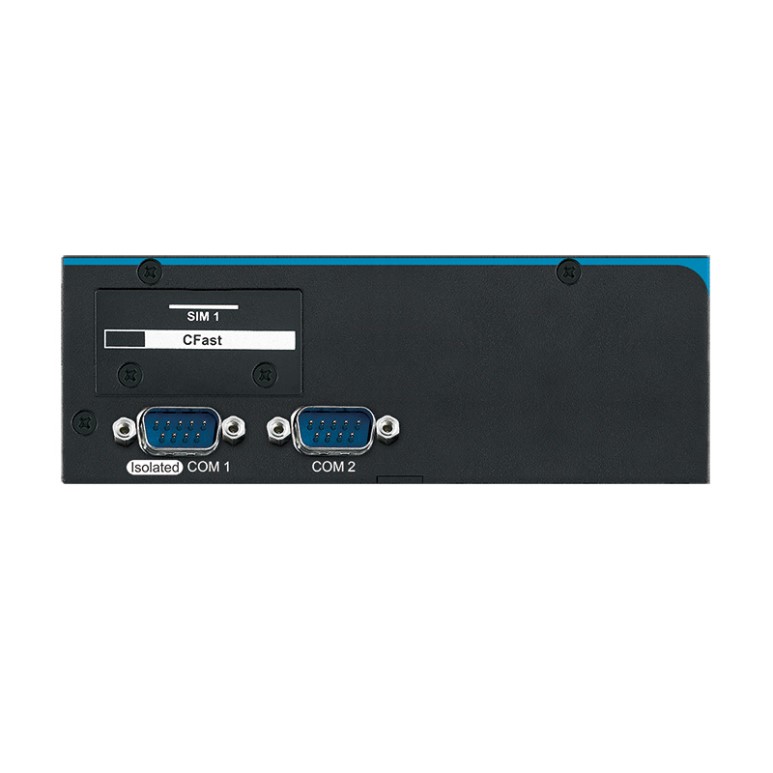

    Features 7th Generation Intel® Core™ i7/i5/i3 U-series SoC (Kaby Lake-U/Skylake-U) Ultra-compact, Rugged, Fanless -40°C to 70°C Operation 3 Independent GigE LAN with 2 M12 IEEE 802.3at PoE+ Mounting : DIN Rail, Wallmount 4 USB 3.0, 2 SATA III, 2 Mini PCIe Supports DVI-I and DVI-D dual HD displays External SIM Socket for WiFi/3G/4G/LTE/GPRS/UMTS 6V to 36V DC-in with 80V Surge Protection 2 COM RS-232/422/485 with 1 Isolated COM 32 GPIO, Ignition Power Control

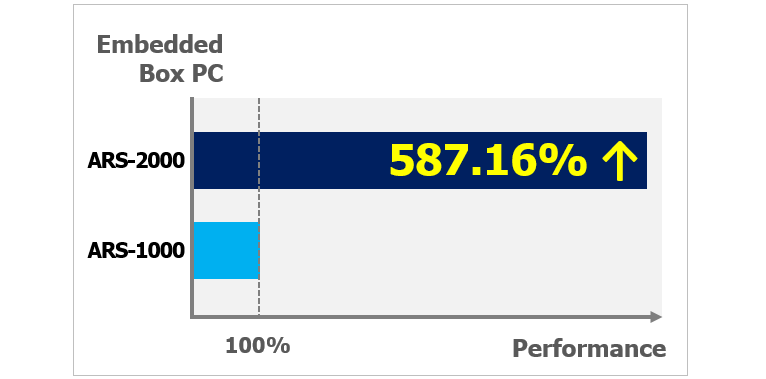

Feature Highlights Outstanding Performance Intel® Core™ i7/i5/i3 SoC (Kaby Lake-U/Skylake-U) Intel® HD Graphics HD620, max 4K Resolution SoC solution, lower power consumption Max 587.16% performance enhanced

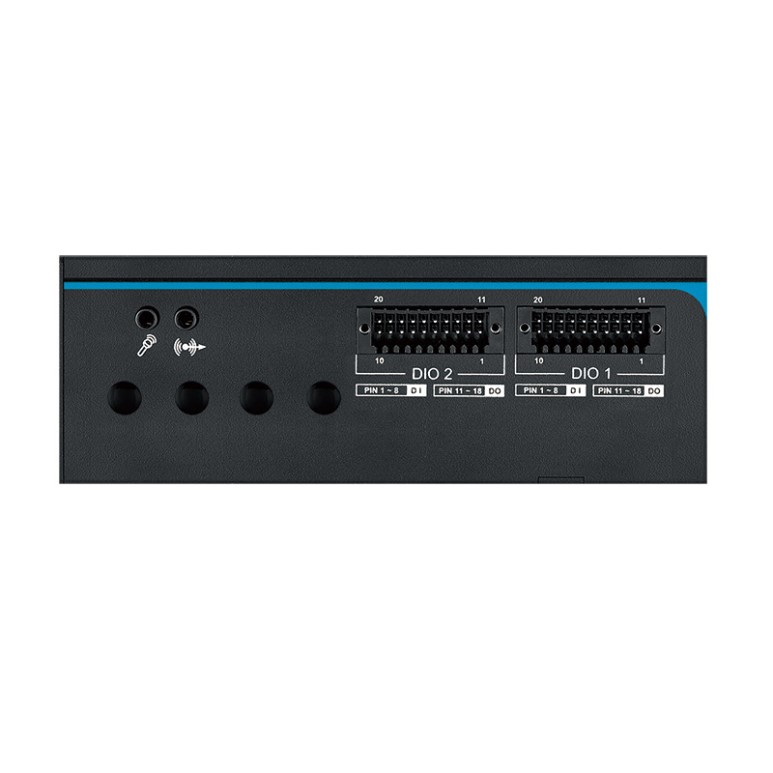

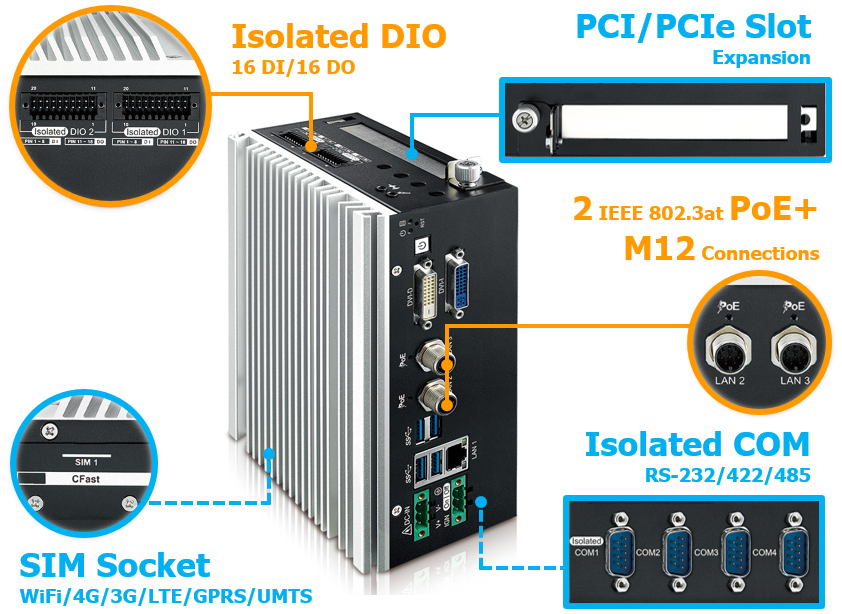

Compact Integratoion High-performance DIN Rail mount : Fanless + Intel® Core™ i7 Dual HD displays : DVI-I and DVI-D 3-port GigE LAN with 2 M12 IEEE 802.3at PoE+ Externa SIM socket for WiFi, 4G, 3G, LTE, GPRS, or UMTS Supports 2 2.5" SSD, up to 8TB capacity 32 Isolated DIO, 4 USB 3.0 4 COM RS-232/422/485 with 1 Isolated COM Flexible Expansion : PCI/PCIe, 2 Mini PCIe

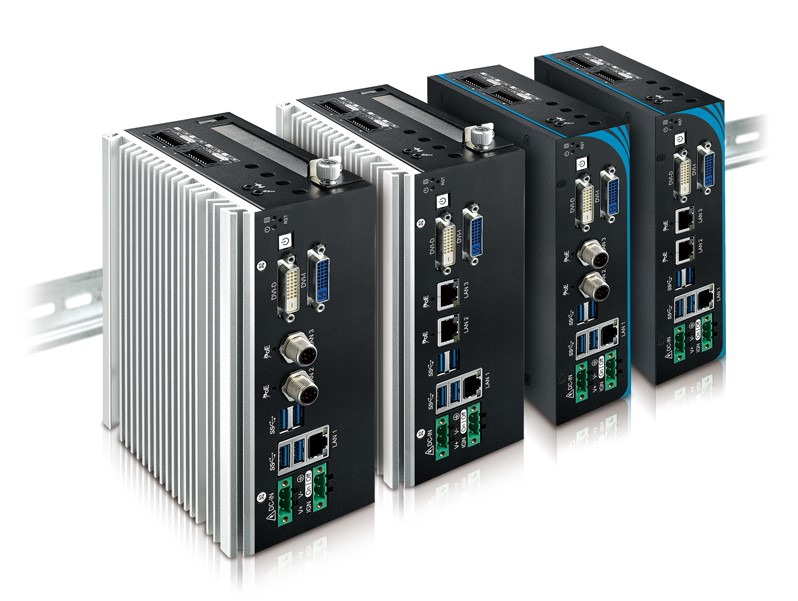

Flexible Configuration PCI/PCIe Expansion for additional graphics card, 10 GigE LAN, 10 GigE SFP+, PoE+ LAN, GigE LAN, LAN Bypass, or USB 3.0 2 Mini PCIe for PCIe, USB, SIM Socket, or mSATA System ready for Faster Time-to-Market : ARS-2000M, ARS-2000, ARS-2000ML, or ARS-2000L
Rugged Reliability Fanless -40°C to 85°C operation Rugged M12 Connections Isolated COM RS-232/422/485 80V Surge Protection Configurable Ignition Power Control CE, FCC, EN50155, EN50121-3-2 compliant Anti-shock, Anti-vibration iAMT 11.0, TPM 2.0, vPro
Specifications
