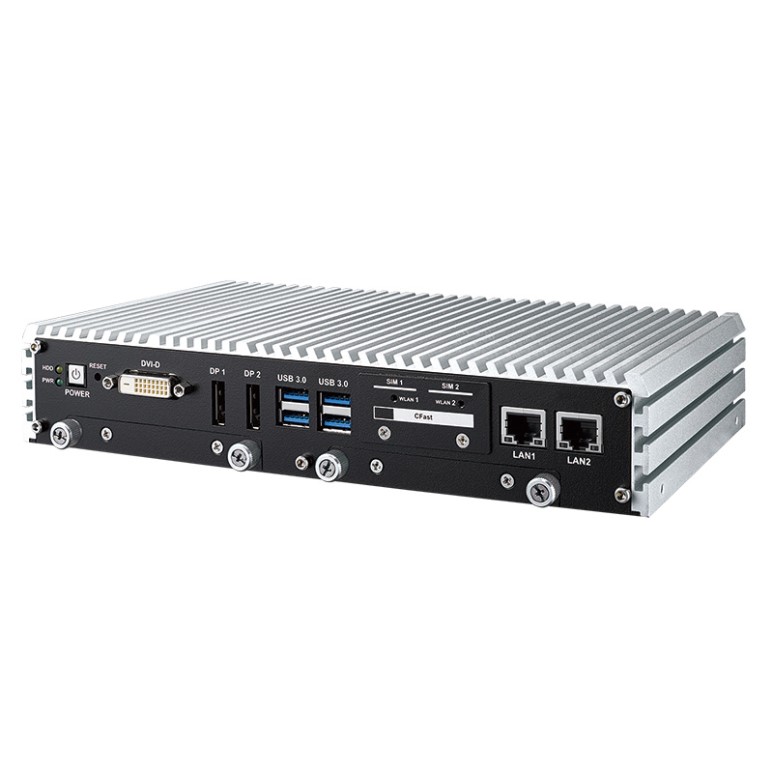

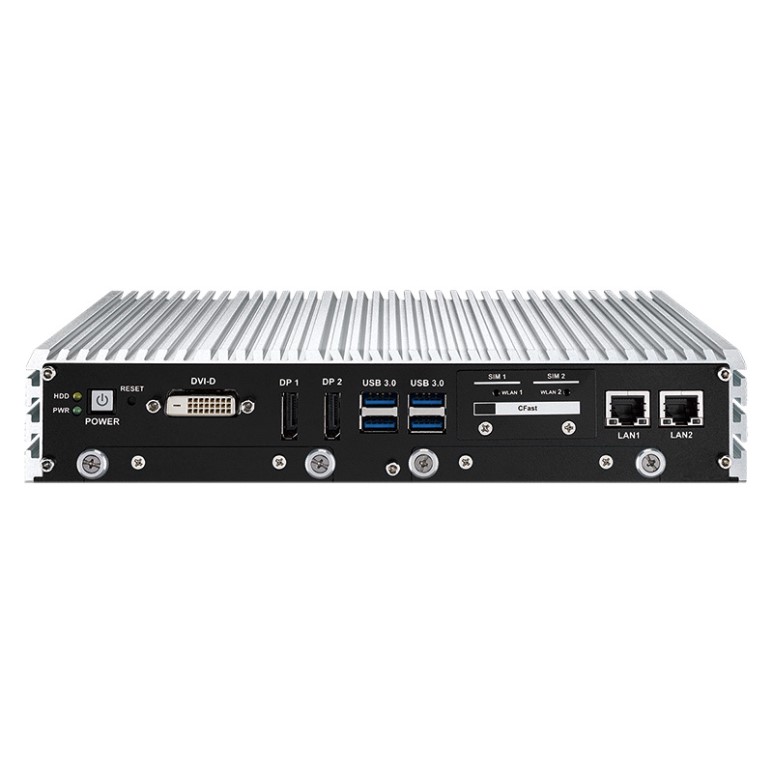

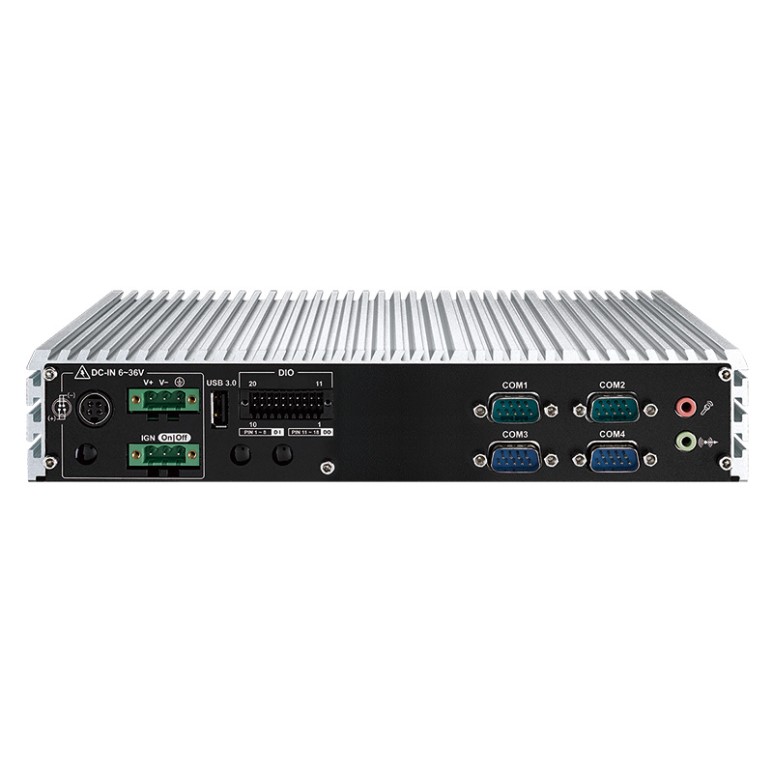

ECS-4500-2R/6th Generation Intel® Core U-series Processor (Skylake-U) Slim Fanless Embedded System

산업용보드 > 1U Rackmount

Features

6th Generation Intel®Core™ i7/ i5/ i3 U-series SoC (Skylake-U)

Slim design, Fanless, -25°C to 70°C Operating Temperature

DDR4 2133MHz memory, up to 32GB

DVI-D and Dual DisplayPort display interfaces, up to 4K display

2 Front-access 2.5" SSD/ HDD Tray

2 Independent GigE LAN, iAMT 11.0 supported

2 Mini PCIe support 3G/ 4G/ LTE/ WiFi/ GPRS/ UMTS

2 External SIM Card Socket

5 USB 3.0, 1 CFast Socket, 32 GPIO

6V to 36V DC-in with 80V Surge Protection

Configurable Ignition Power Control

Specifications

System
Processor	Intel® Core™ i7-6600U/ i5-6300U/ Celeron® 3955U Processor (Skylake-U)
Chipset	Intel® SoC
BIOS	AMI
SIO	IT8786E
Memory	2 DDR4 2133MHz SO-DIMMs, up to 32GB
I/O Interface
Serial	4 COM RS-232/ 422/ 485
USB	- 5 USB 3.0 (External) - 3 USB 2.0 (3 Internal)
DIO	32 GPIO
LED	Power, HDD, Wireless
SIM Card	2 SIM Card Socket (External)
Expansion
Mini PCIe	2 Mini PCIe Socket : - 1 Full-size for PCIe/ USB/ External SIM Card - 1 Full-size for PCIe/ USB/ External SIM Card/ mSATA
Graphics
Graphics Processor	Intel® HD Graphics 520
Interface	- DVI-D : Up to 1920 x 1200 @ 60Hz - DisplayPort 1 : Up to 4096 x 2304 @ 60Hz - DisplayPort 2 : Up to 4096 x 2304 @ 60Hz
Storage
SATA	2 SATA III (6Gbps) support S/W RAID 0, 1
mSATA	1 SATA III (Mini PCIe Type, 6Gbps)
Storage Device	- 1 CFast Slot, Push-in/ Push-out Ejector - 2 Front-access 2.5" SSD/ HDD Tray
Audio
Audio Codec	Realtek ALC892, 5.1 Channel HD Audio
Audio Interface	1 Mic-in, 1 Line-out
Ethernet
LAN 1	Intel® I219LM GigE LAN supports iAMT 11.0
LAN 2	Intel® I210 GigE LAN
Power
Input Voltage	6V to 36V, DC-in
Power Input	- 3-pin Terminal Block : V+, V-, Frame Ground - Mini-DIN 4-pin
Ignition Control	16 Mode (Internal)
Remote Switch	3-pin Terminal Block : On, Off, IGN
Surge Protection	Up to 80V/1ms Transient Power
Others
TPM	Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer	Reset : 1 to 255 sec./min. per step
Smart Management	Wake on LAN, PXE supported
HW Monitor	Monitoring temperature, voltages. Auto throttling control when CPU overheats
Software Support
OS	Windows 10, Windows 8.1, Windows 7, Linux
Mechanical
Dimension (W x L x H)	257mm x 141mm x 48mm (10.1” x 5.6” x 1.9”)
Weight	2.1 kg (4.6 lb)
Mounting	- Wallmount by mounting bracket - DIN Rail Mount (Optional)
Environment
Operating Temperature	-25°C to 70°C (-13°F to 157°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	5% to 95% Humidity, non-condensing
Relative Humidity	95% at 70°C
Shock	- IEC 60068-2-27 - SSD : 50G @ wallmount, Half-sine, 11ms
Vibration	- IEC 60068-2-64 - SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC	CE, FCC, EN60945, EN50155, EN50121-3-2
