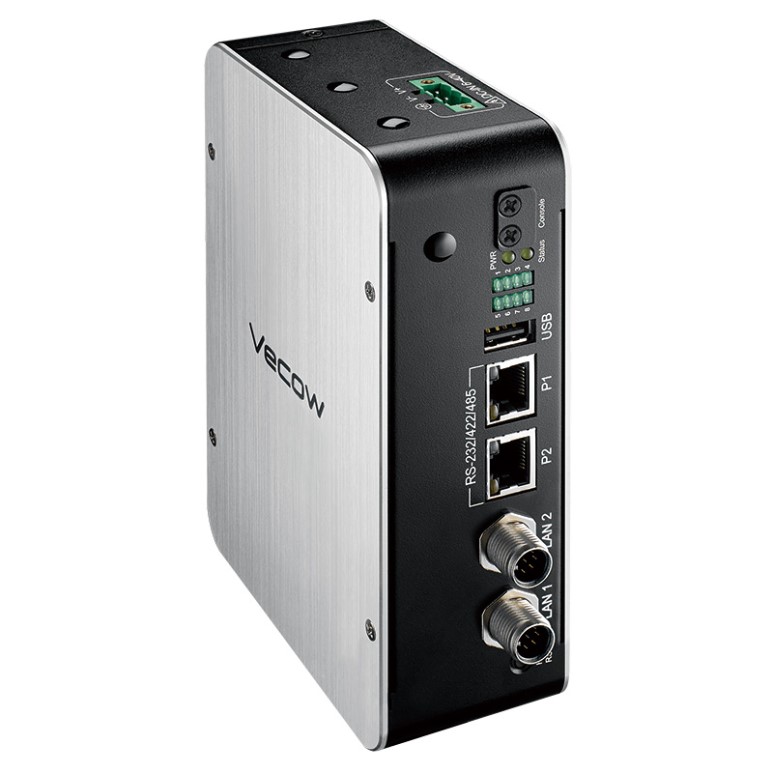

VIG-100 (M12)/Based on industrial-grade Arm® Cortex®-A7 processor

산업용보드 > 1U Rackmount

Features

Industrial-grade Arm® Cortex®-A7 processor

6V to 40V wide range DC power input

-25°C to 70°C operating temperature

Dual Ethernet with rugged M12 connectors

2 COM RS-232/422/485, 1 USB (OTG)

External SIM socket supports WiFi/4G/LTE/GPRS/UMTS

MicroSD Socket supports up to 128GB

Optional NB-IoT module supports system-ready LPWAN applications

Specifications

System
Processor	NXP i.MX6 UltraLite 696MHz Arm® Cortex®-A7 processor
Memory	1 DDR3L SDRAM, 512MB
Flash	1 NAND Flash, 512MB
EEPROM	1, up to 16KB
OS	Debian Stretch R01-4.9.11
Storage
microSD	1, supports SDHC, up to 128GB (External)
eMMC	Optional, up to 32GB

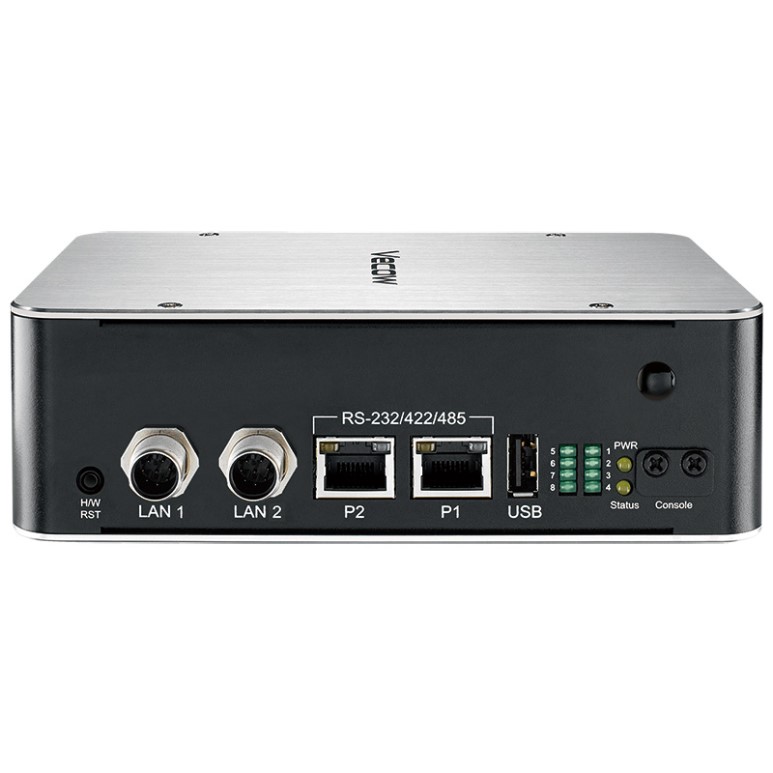

I/O Interface
Ethernet	VIG-100M: 2 10/100Mbps Ethernet, M12 connector VIG-100: 2 10/100Mbps Ethernet, RJ45 connector
Serial	2 COM with RJ45 connector
USB	1 USB 2.0 supports OTG (External)
Console	1 independent debug console
Reset Button	2 for H/W & S/W Reset (Programmable)
LED	10 for System Ready, Power Status and User Programming
Antenna	- 1 Antenna for NB-IoT - 3 Antenna for WiFi/4G/LTE/GPRS/UMTS
Expansion
Mini PCIe	1 Full-size for USB/External SIM Card

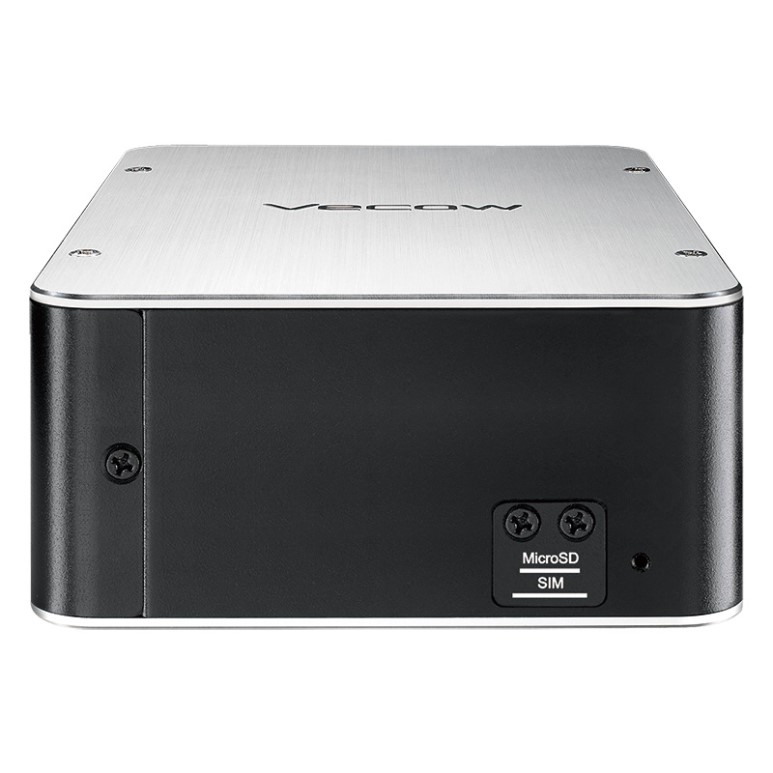

SIM Card	1 SIM Card Socket (External)
Power
Power Input	6V to 40V, DC-in

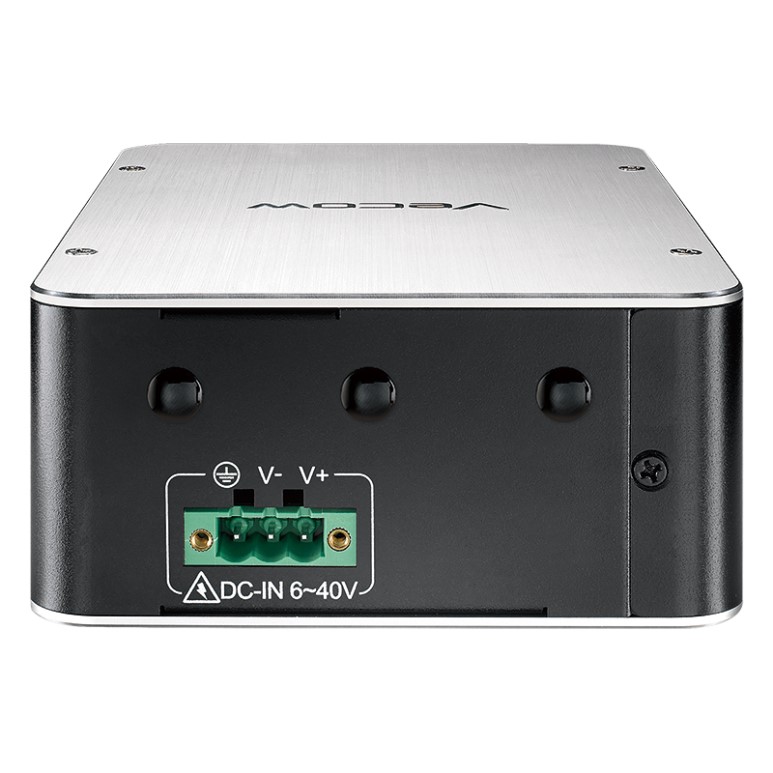

Power Interface	3-pin Terminal Block : V+, V-, Frame Ground
Others
Watchdog Timer	Reset : 0.5 to 128 sec./min. per step
Mechanical
Dimensions (W x L x H)	106mm x 160mm x 50mm (4.2” x 6.3” x 2.0”)
Weight	0.6 kg (1.32 lb)
Mounting	- DIN Rail Mount - Wallmount by mounting bracket (optional)
Environment
Operating Temperature	-25°C to 70°C (-13°F to 158°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	5% to 95% Humidity, non-condensing
Relative Humidity	95% @ 70°C
Vibration	- IEC 60068-2-64 - SSD : 5Grms, 5Hz to 500Hz, 3 Axis
Shock	- IEC 60068-2-27 - SSD : 50G @ wallmount, Half-sine, 11ms
EMC	CE, FCC
