Model Name

FMF833

Part Number

HBFMF833-72-2L-B

HBFMF833W-72-2L-B (WIFI)

HBFMF833-72-2C-B

HBFMF833W-72-2C-B (WIFI)

Motherboard Specification

CPU

Intel¢ç Core i5-7200U, 2.50GHz ? 3.10GHz Burst, 2-Core 4-Thread, 15W TDP

Memory

2 x 260-pin SODIMM un-buffered Dual Channel DDR4-2133 up to 32GB Total

Graphics

Intel HD Graphics

Storage

1 x SATA3 6Gb/s

1 x Shared mSATA/mini-PCI Express Slot (Full-size)

Wireless

1 x mini PCI-E Slot for WIFI or ¡°W¡± models include Wireless b/g/n, Bluetooth 4.0

TPM

Intel fTPM 2.0 (PTT) Trusted Computing Firmware

Chassis Specification

Enclosure Size

250 (W) x 171 (D) x 54 (H) mm

Color

Black

Storage Bay

1 * 2.5¡± SSD/HDD Bay (with maximum 10mm z-height)

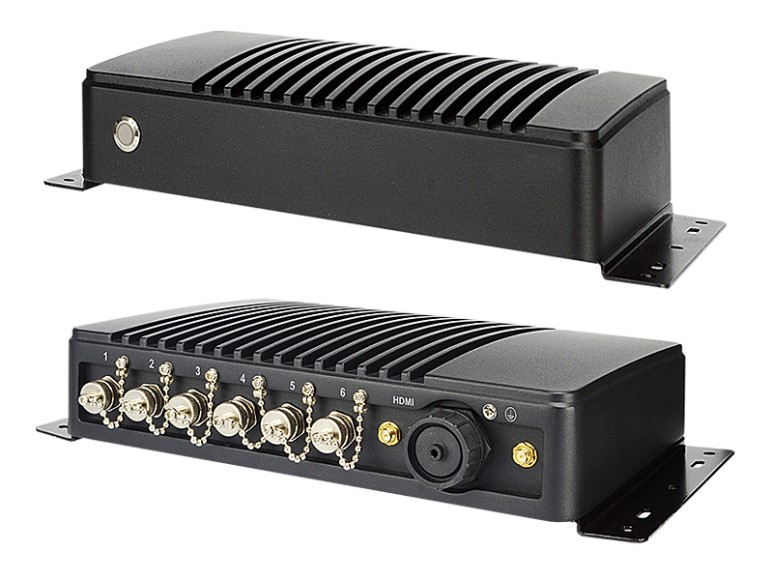

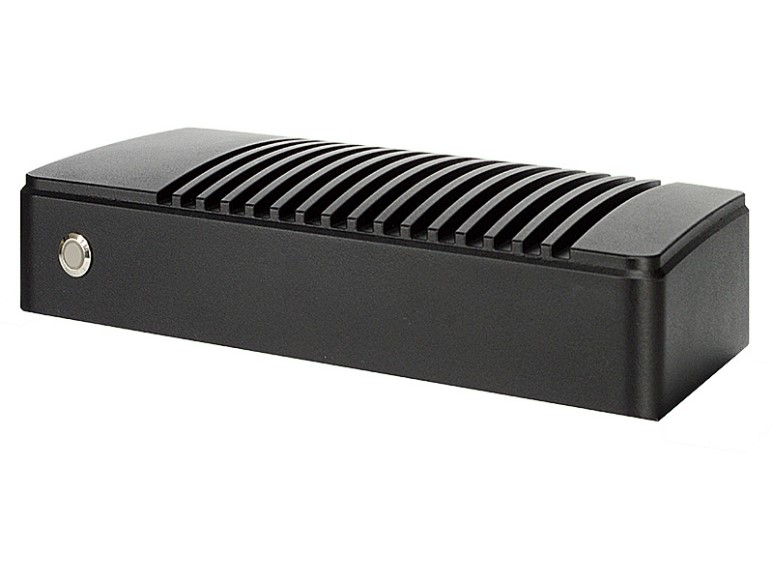

Front I/O Port

1 * ON/OFF Power Button with LED

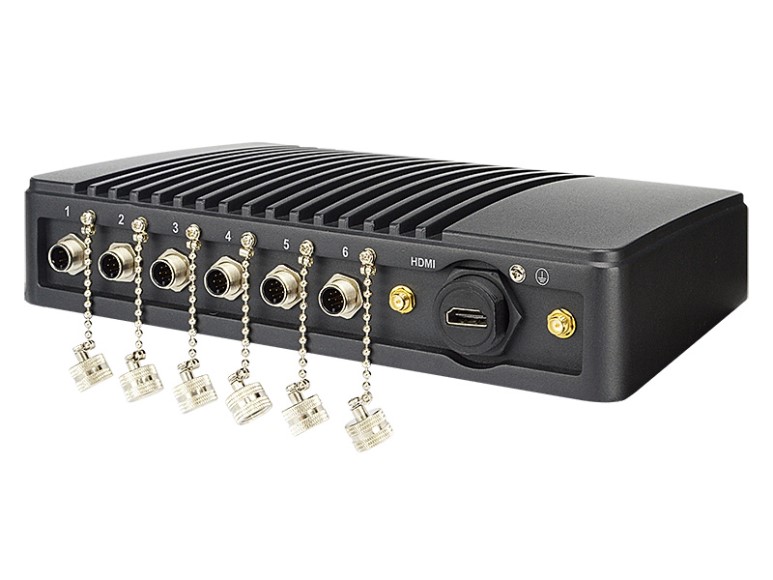

Rear I/O Port

#1 +9~24V DC-in Jack

#2 Intel I211-AT Gigabit LAN

#3 Intel I219-LM Gigabit LAN

#4 USB 2.0 (2 Ports)

#5 USB 3.0 (1 Port)

#6 Serial Port (RS232/422/485)

HDMI (4096 x 2304 @ 24Hz)

SMA for WiFi Antenna

GND Hold

#1 +9~24V DC-in Jack

#2 USB 2.0

#3 Intel I211-AT Gigabit LAN

#4 USB 2.0 (2 Ports)

#5 Serial Port (RS232/422/485)

#6 Serial Port (RS232)

HDMI (4096 x 2304 @ 24Hz)

SMA for WiFi Antenna

GND Hold

Environment

Operating Temperature : -20 ~ 70¡ÆC (while using SSD)

Operating Temperature : 0 ~ 50¡ÆC (while using 2.5" HDD)

Storage Temperature : -10 ~ 70¡ÆC

Humidity : 90%, non-condensing

Standard Accessory

¡î 60W AC-DC Adapter x1 (not IP69K)

¡î Power Cord x1

¡î Wall Mount

¡î M12 DC Cable x1

¡î CD Disk x1

¡î Manual x1

¡î WIFI Antenna (with HBFMF833W model)

Functional

Networking Appliance, Firewall/Router, Industrial Contol, Digital Security, Embedded System

Certificate

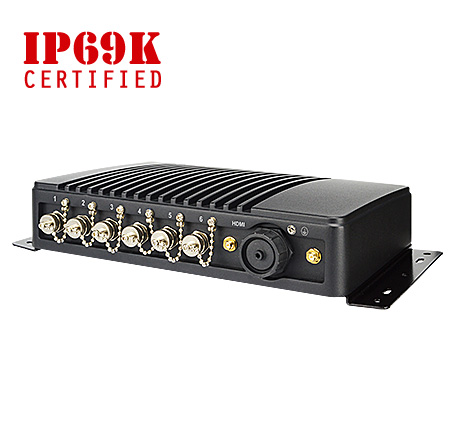

CE, CE-LVD, FCC, ErP, IP69K For Barebone

CE,FCC,TUV,UL,CCC,CB,ErP For Power Adapter

Ordering Info

Part Number

Description

HBFMF833W-72-2L-B

Fanless 7200U, 2LANs, WiFi

HBFMF833-72-2L-B

Fanless 7200U, 2LANs

HBFMF833W-72-2C-B

Fanless 7200U, 2COMs, WiFi

HBFMF833-72-2C-B

Fanless 7200U, 2COMs

HCSFMMWM01B-F (Incl)

Wall Mount

G01-PWM12-W401-F (Incl)

M12 DC Cable

G02-DVD25-A2-WF (Incl)

DVD driver disk

L01AS037-F (Incl)

Adapter 12V 5A 60W LEVEL6

HNSCOMWFAWNB159-F (for HBFMF833W)

B/G/N + BT 4.0 WiFi card

J05-ANT-AN2400-F (for HBFMF833W)

WiFi antenna

LCSCHBJC3XX-F (Incl)

Screw pack

OS Support List* For Intel 7th Gen CPU, it can only support Windows 10 64-bit. You may be able to install the Windows 7 or 8.1, but the Windows Update won¡¯t work.

Windows

Linux

Windows 10 64bit

CentOS 7.0

Win 10 IoT Enterprise 64-bit

Debian 9.2.1

Fedora 28.1.1

openSUSE 42.3

Ubuntu 18.04

pfSense 2.3.4

RedHat 7.5

Android x86 7.1-r2

Vmware ESXi 6.5
