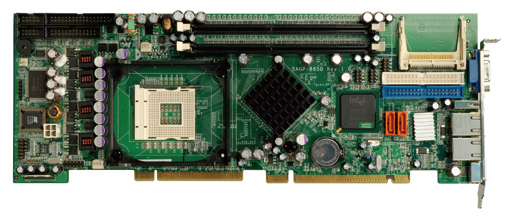

| SAGP-8650/PIAGP Socket-478 Based CPU board with GbE, LAN,SATA, USB2.0 & Audio | 산업용보드 > EATX | 0 |
|---|---|---|
|
Features Socket-478 base support Intel®Pentium 4®/Celeron D 533/800MHz FSB
PIAGP interface supports AGP 8X/ 4X add-on card
1 x Compact Flash™ Type Ⅱ socket
Integrated with i865G
CPU Socket-478 base support Intel®Pentium 4®/Celeron D 400/533/800MHz FSB
System Memory Dual channel DDR333/400 SDRAM socket support up to 2GB
System Chipset Intel® 865G + ICH5
SSD 1 x Compact Flash™ Type Ⅱ socket
Ethernet 1st 10/100 Mbps i82562ET Fast Ethernet controller (SAGP-8650EV) 2nd i82547GI GbE controller (SAGP-8650EVG)
Digital I/O 8 bit digital I/O, 4 input/ 4 output
Audio Realtek ALC655 with AC’97 CODEC
Display Integrated with i865G -Bus:AGP 4X/8X
I/O - 2 x RS-232 by pin header - 1 x PS/2 for Keyboard/Mouse - 1 x LPT by pin header (supports SPP/ECP/EPP mode) - 7 x USB 2.0 (1 x USB connector, other 2 x 4 by pin-header) - 2 x IDE ATA-100 (40-pin with 2.54mm pitch) - 2 x SATA 150 - 1 X Floppy (34-pin with 2.54mm pitch) - 1 x IrDA
WDT software programmable, support 1~255 sec. system reset
Hardware Moniter Provides CPU Vcore, Vcc, CPU/System fan speed and temperature detecting function
Support ATX power control function
Power Consumption +12V@7.5A, +5V@7A,-12V@0.5A (P4 3.0GHz FSB 800MHz,Dual chanel DDR400 1GB RAM)
Operating Temp 0 - 60°C (CPU need cooler)
Relative Humidity 5~95%, non-condensing
