MTC-2021

산업용보드 > FULL IP65/66패널PC

제품문의 02-3016-2464 http://www.wjubc.co.kr

Features

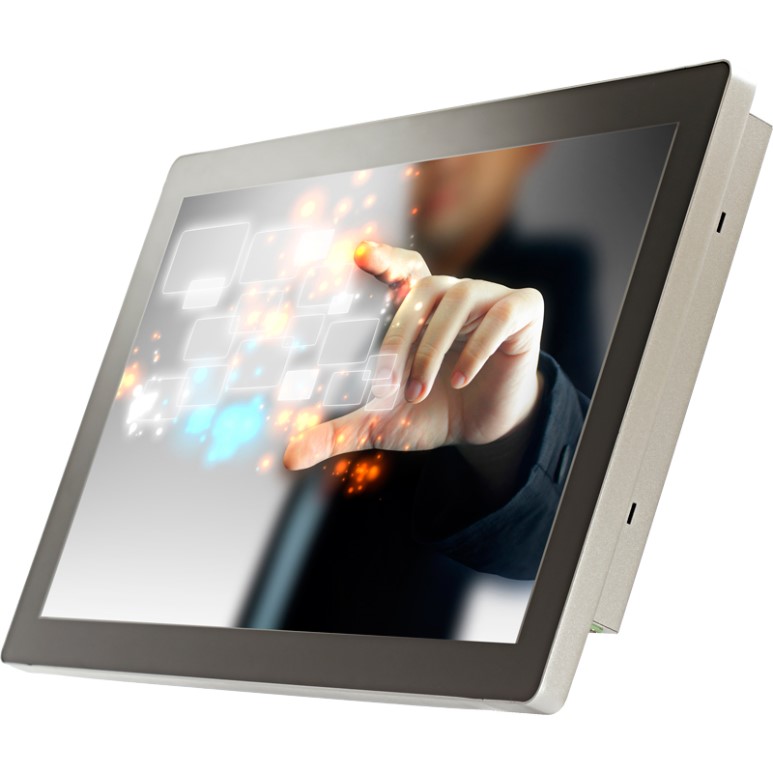

21.5” 16:9 Full HD (1920x1080) LCD Panel with LED Backlight

Projected Capacitive Multi-touch Screen

Fanless Design with Quad Core Intel® Atom™ E3845 Processor (Bay Trail)

Touchscreen works with Gloves

IP65 Front Panel Protection

Mounting Methods: Panel/ VESA

6 COM, w/ 2 Isolated RS-232/ 422/ 485

2 GgE LAN, 1 USB 3.0, 2 USB 2.0, 8 GPIO

9V to 28V DC-in

3G/4G/GPS/GPRS/WiFi/Bluetooth (Optional)

Sunlight Readable (Optional)

Specifications

Panel
Type	a-Si TFT-LCD
Viewable Size Image	21.5" (16:9)
Resolution	1920 x 1080 (Full HD)
Display Color	16.7 M (RGB 8-bit)
Backlight	LED
Brightness (cd/m2)	250 (Optional, Up to 1200)
Viewing Angle	89/89/89/89 (L/R/U/D)
Contrast Ratio	3000:1
Touch Screen
Type	10-point Projected Capacitive
Transparency	? 85%
Surface Hardness	7H
Control Interface	USB
System
Processor	Quad Core Intel® Atom™ E3845 Processor (1.91GHz, Bay Trail)
Chipset	Intel® SoC
Memory	1 DDR3L 1333 SODIMM, up to 8GB
Display	VGA/ HDMI
Audio	Mic-in, Line-out
Software Support	Windows 8, Windows 7, WES7, Linux
Storage

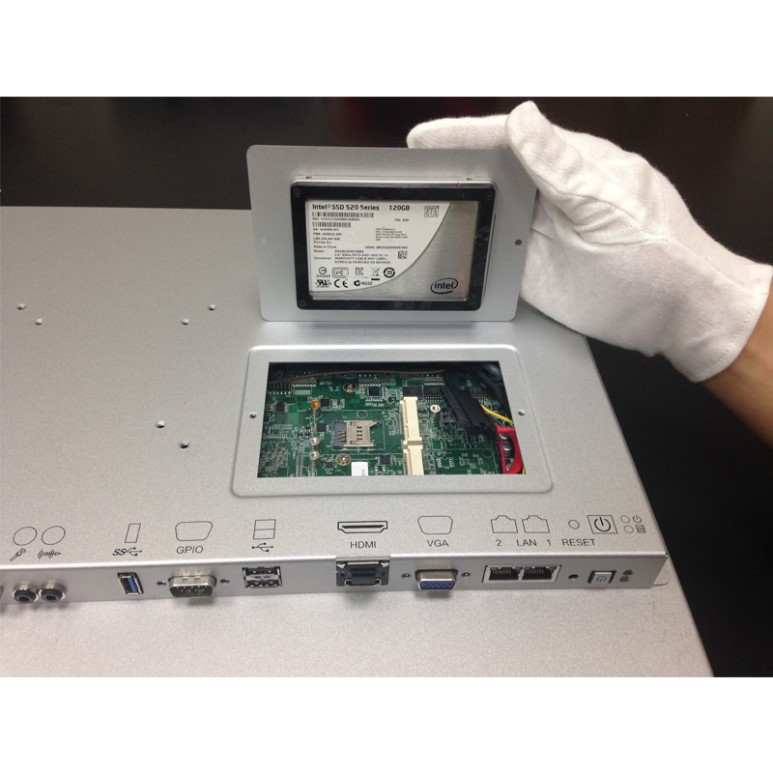

SATA HDD	1 SATA II Port at 3.0Gb/s
mSATA	1 mSATA (Mini PCIe type)

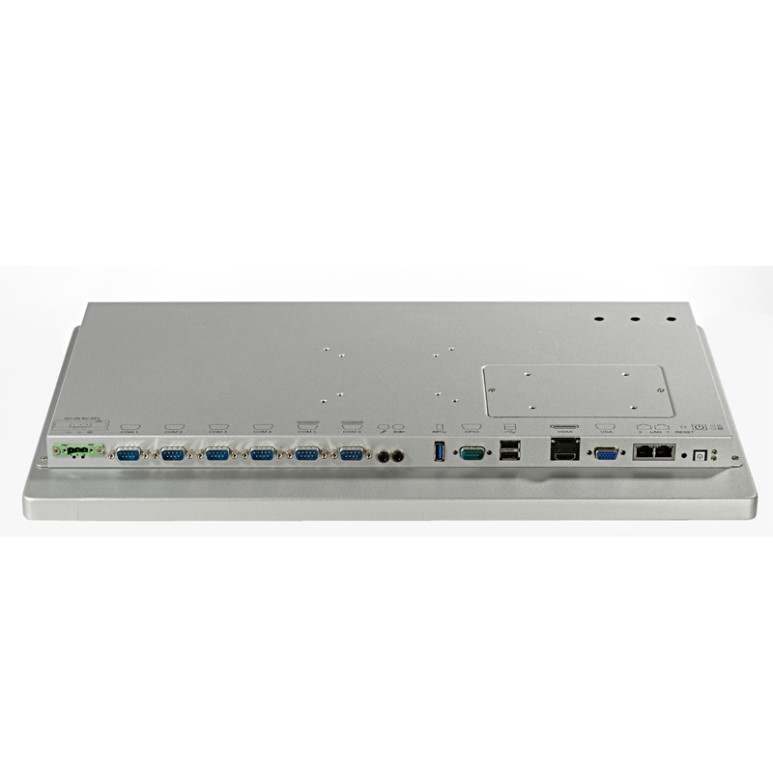

I/O Interface
Serial	6 COM (2 RS-232, 4 RS-232/422/485)
Serial	2 Isolated RS-232/422/485 with 5K VDC
LAN	2 Intel® 82574L GbE LAN
USB	1 USB 3.0, 2 USB 2.0
GPIO	8 GPIO
Mini PCIe	- 1 Mini PCIe Socket (PCIe+USB +SIM Card Socket)
	- 1 Mini PCIe Socket (PCIe+USB)
	- 1 mSATA Socket
	- 3 Pre-cast Holes for Antenna
Other
GPS	Onboard GPS Module (Optional)
Power
Input	Terminal Block; DC-in 9V to 28V
Power Adapter	AC to DC 60W Power Adaptor (Optional)
Mechanical
Dimensions (W x H x D)	537.6 x 329.06 x 44.1 mm (21.2" x 13" x 1.7")
Gross Weight	5.8 kg (12.8 lb)
IP Protection	Front Panel IP65 compliant
Mounting	VESA mount (75 x 75mm, 100 x 100mm)
Mounting	Panel mount
Environment
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity	10% to 90%, non-condensing
Vibration	- IEC 60068-2-64 - Non-operation : 10Hz to 200Hz, 1.5 Grms, X, Y, Z, 30 mins each Axis
Shock	- IEC 60068-2-27 - 20G, half sine, 11ms
EMC	CE, FCC
