MTC-4015

산업용보드 > FULL IP65/66패널PC

제품문의 02-3016-2464 http://www.wjubc.co.kr

Features

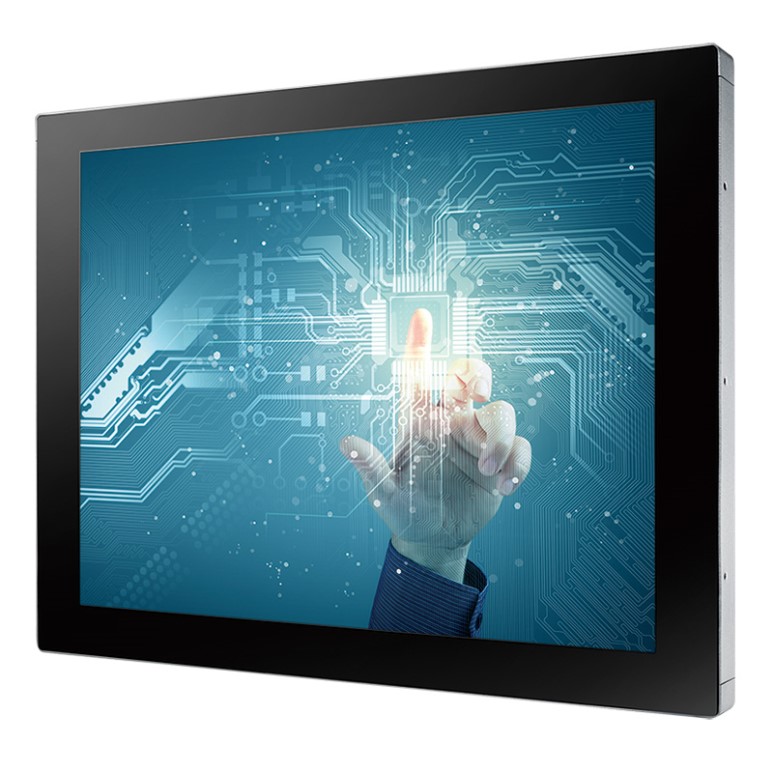

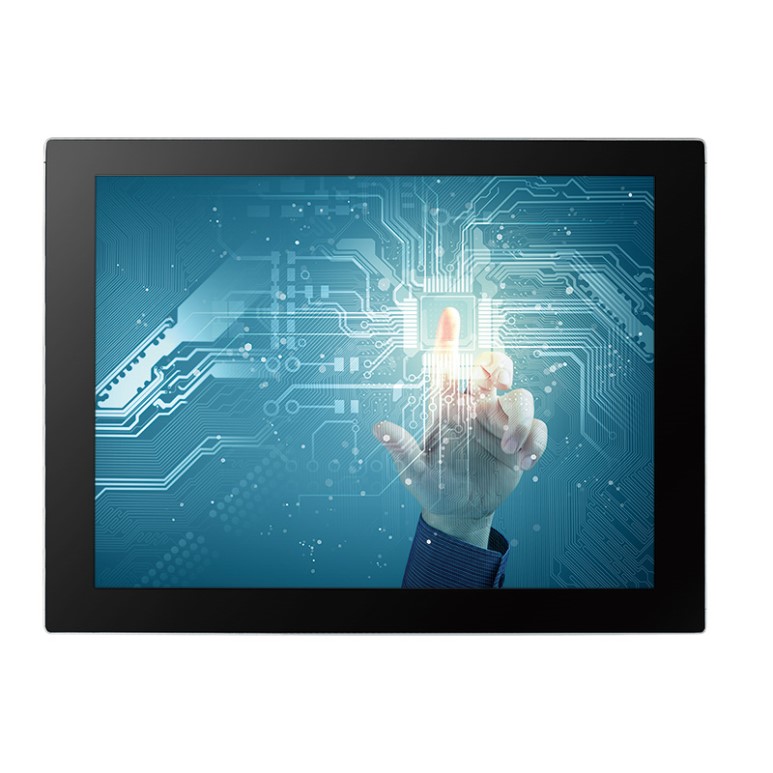

15” 1024 x 768 (4:3) LCD panel with LED backlight

Projected Capacitive Multi-touch Screen with 7H anti-scratch surface, up to 20-point Multi-touch

Touchscreen works with gloves

Fanless, 5th Gen Intel® Core™ i7/ i5/ i3 U-Series Processor (Broadwell-U)

6V to 36V DC-in, 80V Surge Protection

6 GbE LAN with 4 IEEE 802.3at PoE+

2 SIM Card Socket for 3G/ 4G/ WiFi/ GPRS/ UMTS

16 Isolated DIO : 8 DI, 8 DO

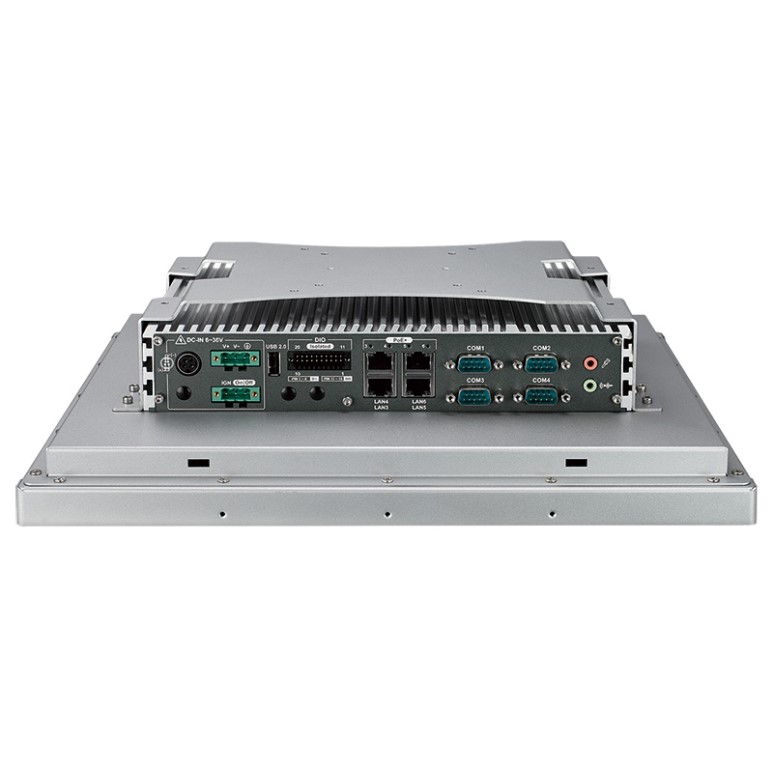

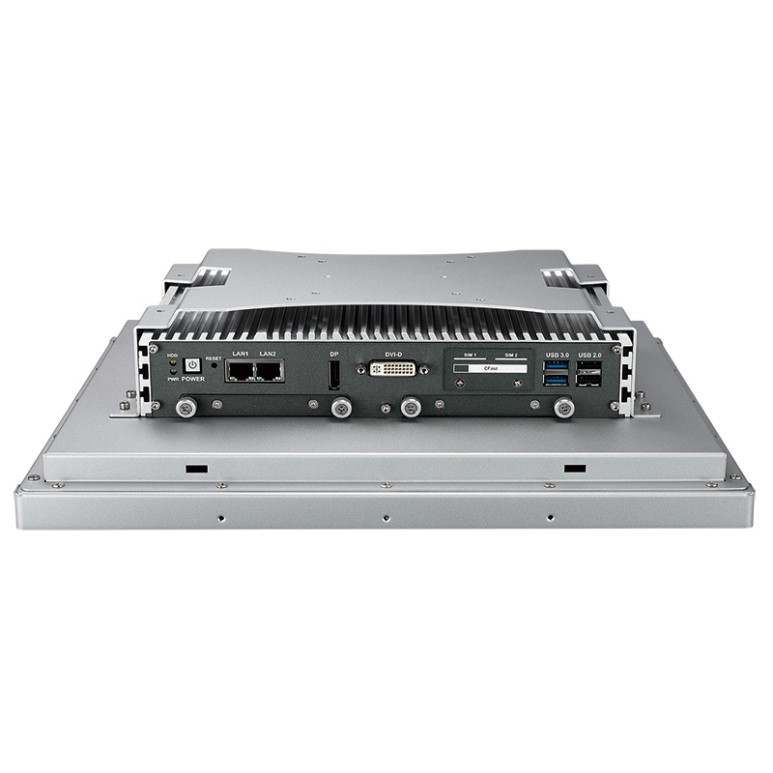

External CFast, SSD, 2 USB 3.0, 3 USB 2.0, 4 COM

Ignition Power Control

IP65 Front Panel Protection

Specifications

Panel
Type	a-Si TFT-LCD
Viewable Size	15" (4:3)
Resolution	1024 x 768
Display Color	16.7 M
Backlight	LED
Brightness (cd/m2)	250
Viewing Angles	80/80/80/80 (L/R/U/D)
Contrast Ratio	600:1
Touch Screen
Type	Projected Capacitive, up to 20-point Multi-touch
Transparency	? 91%
Surface Hardness	7H
Control Interface	USB
System
Processor	5th Generation Intel® Core™ i7/ i5/ i3 U-Series Processor (Broadwell-U)
SIO	IT8786E
Memory	2 DDR3L 1333/ 1600 MHz SO-DIMMs, up to 16GB
Display	- DVI-D : Up to 1920 x 1080 @ 60Hz - DisplayPort : Up to 3840 x 2160 @ 60Hz
Audio	1 Mic-in, 1 Line-out
Software Support	Windows 8, Windows 7, Linux
Storage
SATA HDD	2 SATA III (External, 6Gbps)
mSATA	1 SATA III (Mini PCIe Type, 6Gbps)
Expansion	- 1 CFast Slot, Push-in/ Push-out Ejector - 2 2.5" SSD/ HDD Tray
I/O Interface
Serial	4 COM RS-232/ 422/ 485
USB	- 2 USB 3.0 - 3 USB 2.0
Isolated DIO	16 Isolated DIO : 8 DI, 8 DO (MTC-4015-PoER only)
DIO	16 DIO : 8 DI, 8 DO (MTC-4015-2R only)
SIM Card	2 SIM Card Socket (External)
Mini PCIe Slot	- 2 Mini PCIe Socket : ? 1 supports PCIe/ USB/ External SIM ? 1 supports PCIe/ USB/ External SIM/ mSATA - 3 Pre-cast holes for Antenna
LAN
LAN 1	Intel® I218 Gigabit LAN
LAN 2	Intel® I210 Gigabit LAN
LAN 3	Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210 (MTC-4015-PoER Only)
LAN 4	Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210 (MTC-4015-PoER Only)
LAN 5	Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210 (MTC-4015-PoER Only)
LAN 6	Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210 (MTC-4015-PoER Only)
Power
Input Voltage	DC-in 6V to 36V
Power Input	- 3-pin Terminal Block : V+, V-, Frame Ground - Mini-DIN 4-pin
Power Adapter	AC to DC 120W power adaptor (Optional)
Ignition Control	16 Mode
Remote Switch	3-pin Terminal Block : On, Off, IGN
Surge Protection	Up to 80V/1ms Transient Power
Others
TPM	Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer	Reset : 1 to 255 sec./min. per step
Smart Management	Wake on LAN, PXE supported
HW Monitor	Monitoring temperature, voltages. Auto throttling control when CPU overheats
Mechanical
Dimensions (W x H x L)	350 x 274 x 97.6mm (13.8" x 10.8" x 3.8")
Gross Weight	5.3 kg (11.7 lb)
IP Protection	Front Panel IP65 compliant
Mounting	- VESA mount (75 x 75mm, 100 x 100mm) - Panel mount
Environment
Operating Temperature	-20°C to 70°C (-4°F to 158°F)
Storage Temperature	-30°C to 80°C (-22°F to 176°F)
Humidity	10% to 90%, non-condensing
Vibration	- IEC 60068-2-64 - Non-operation : 10Hz to 200Hz, 1.5 Grms, X, Y, Z, 30 mins each Axis
Shock	- IEC 60068-2-27 - 20G, Half-sine, 11ms
EMC	CE, FCC
