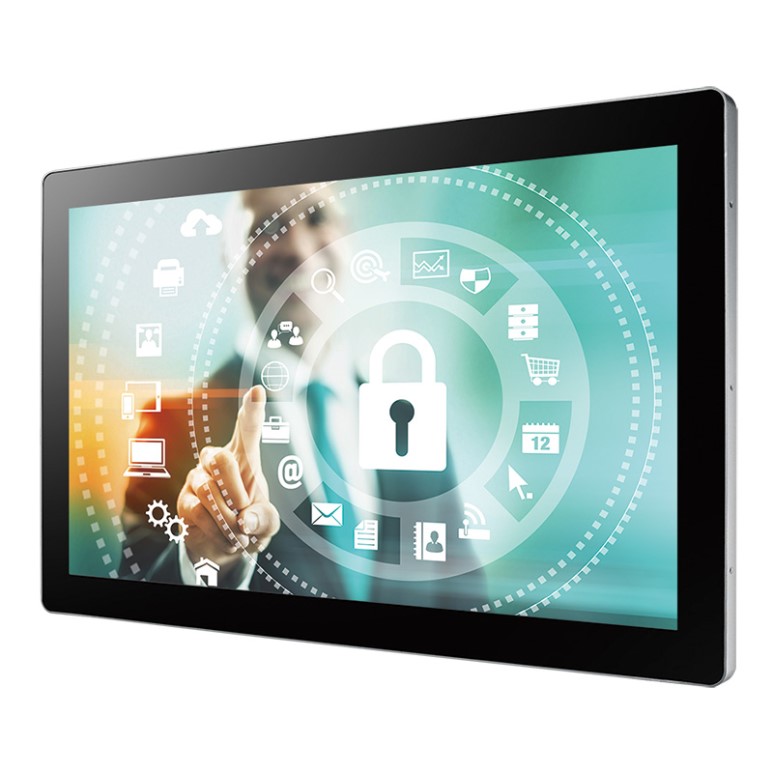

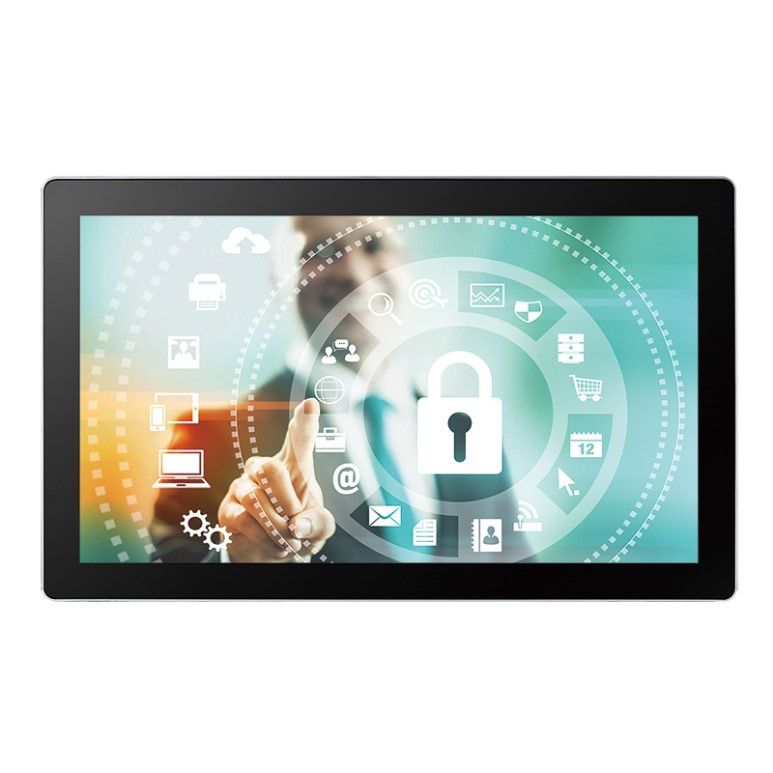

MTC-4021

산업용보드 > FULL IP65/66패널PC

제품문의 02-3016-2464 http://www.wjubc.co.kr

Features

21.5” 16:9 Full HD LCD panel with LED backlight

Projected Capacitive 10-point Multi-touch Screen with 7H anti-scratch surface

Touchscreen works with gloves

Fanless, 5th Gen Intel® Core™ i7/ i5/ i3 U-Series Processor (Broadwell-U)

6V to 36V DC-in, 80V Surge Protection

6 GbE LAN : 4 PoE+, 2 GbE LAN

2 SIM Card sockets for 3G/ 4G/ WiFi/ GPRS/ UMTS

External CFast Slot, 2 USB 3.0, 2 USB 2.0, 4 COM

Sunlight Readability Requirements (Optional)

IP65 Front Panel Protection

Specifications

Panel
Type	a-Si TFT-LCD
Viewable Size	21.5" (16:9)
Resolution	1920 x 1080 (Full HD)
Display Color	16.7 M (RGB 8-bit)
Backlight	LED
Brightness (cd/m2)	250 (Optional, Up to 1200)
Viewing Angles	89/89/89/89 (L/R/U/D)
Contrast Ratio	3000:1
Touch Screen
Type	10-point Projected Capacitive
Transparency	? 85%
Surface Hardness	7H
Control Interface	USB
System
Processor	5th Generation Intel® Core™ i7/ i5/ i3 U-Series Processor (Broadwell-U)
SIO	IT8786E
Memory	2 DDR3L 1333/ 1600 MHz SO-DIMMs, up to 16GB
Display	- DVI-D : Up to 1920 x 1080 @ 60Hz - DisplayPort : Up to 3840 x 2160 @ 60Hz
Audio	1 Mic-in, 1 Line-out
Software Support	Windows 8, Windows 7, Linux

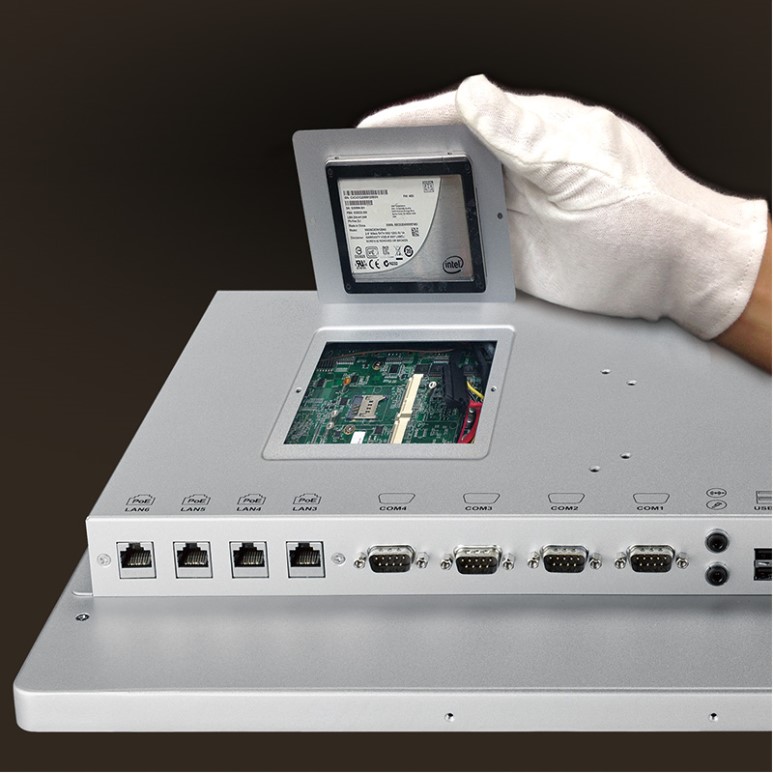

Storage
SATA HDD	1 SATA III (6Gbps)
mSATA	1 SATA III (Mini PCIe Type, 6Gbps)
Expansion	1 CFast Slot, Push-in/ Push-out Ejector

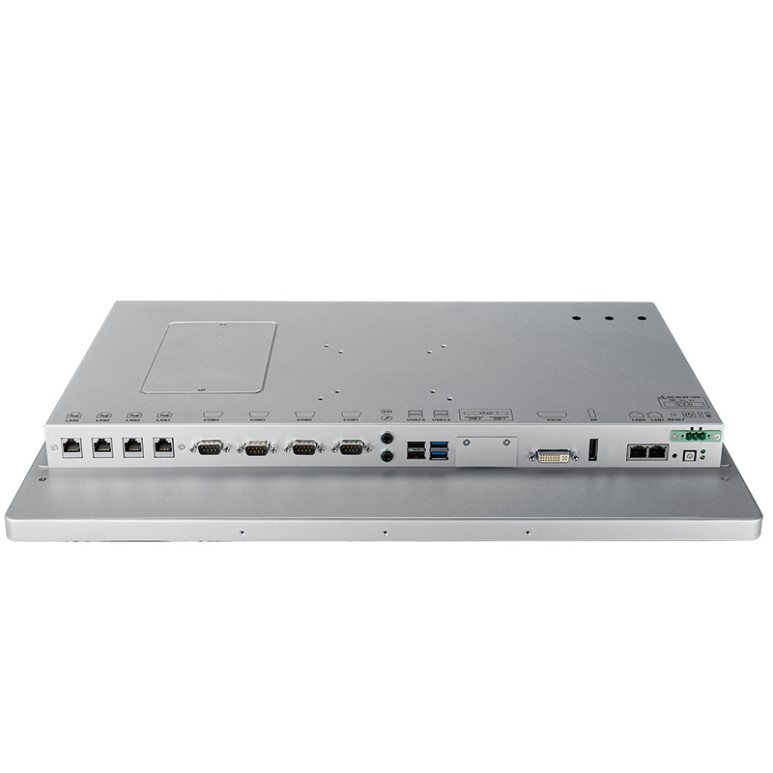

I/O Interface
Serial	4 COM RS-232/ 422/ 485
USB	- 2 USB 3.0 - 2 USB 2.0
SIM Card	2 SIM Card sockets (External)
Mini PCIe Slot	- 2 Mini PCIe sockets : ? 1 supports PCIe/ USB/ External SIM ? 1 supports PCIe/ USB/ External SIM/ mSATA - 3 Pre-cast holes for Antenna
LAN
LAN 1	Intel® I218 Gigabit LAN
LAN 2	Intel® I210 Gigabit LAN
LAN 3	Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210 (MTC-4021-PoE Only)
LAN 4	Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210 (MTC-4021-PoE Only)
LAN 5	Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210 (MTC-4021-PoE Only)
LAN 6	Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210 (MTC-4021-PoE Only)
Power
Input Voltage	DC-in 6V to 36V
Power Input	3-pin Terminal Block
Power Adapter	AC to DC 120W power adaptor (Optional)
Surge Protection	Up to 80V/1ms Transient Power
Others
TPM	Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer	Reset : 1 to 255 sec./min. per step
Smart Management	Wake on LAN, PXE supported
HW Monitor	Monitoring temperature, voltages. Auto throttling control when CPU overheats
Mechanical
Dimensions (W x H x L)	537.6 x 329.06 x 53.1mm (21.2" x 13" x 2.1")
Gross Weight	5.8 KG (12.8 lb)
IP Protection	Front Panel IP65 compliant
Mounting	- VESA mount (75 x 75mm, 100 x 100mm) - Panel mount
Environment
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity	10% to 90%, non-condensing
Vibration	- IEC 60068-2-64 - Non-operation : 10Hz to 200Hz, 1.5 Grms, X, Y, Z, 30 mins each Axis
Shock	- IEC 60068-2-27 - 20G, Half-sine, 11ms
EMC	CE, FCC
