MTC-6021

산업용보드 > FULL IP65/66패널PC

제품문의 02-3016-2464 http://www.wjubc.co.kr

Features

21.5" 1080p Full HD TFT LCD panel panel with LED backlight

Projected Capacitive Multi-touch Screen with 7H anti-scratch surface, up to 10-point Multi-touch

Fanless, 6th generation Intel® Core™ i7/i5/Celeron® Processor (Skylake-U)

2 Independent GigE LAN support IEEE 802.3at Powered Device (PD) and iAMT 11.0

4 Independent GigE LAN with IEEE 802.3at PoE+, Power on/off enabled

2 Mini PCIe for WiFi/4G/3G/LTE/GPRS/UMTS

16 Isolated DIO, 2 SSD Tray, 5 USB 3.0, 4 COM

6V to 36V DC-in, 80V Surge Protection, Ignition Power Control

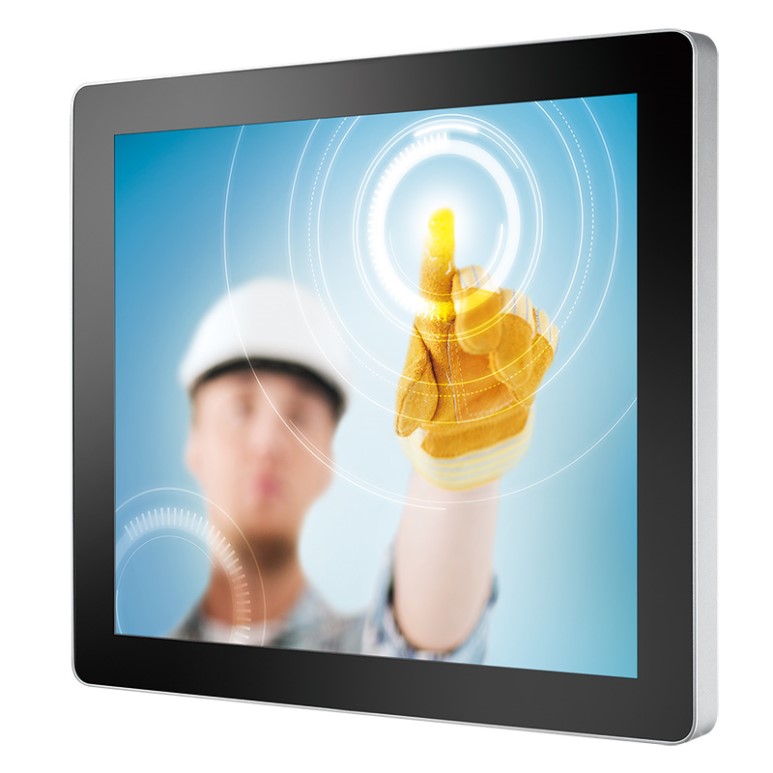

Gloves workable with touchscreen

IP65 Front Panel Protection

Specifications

Panel
Type	TFT LCD
Active Area	21.5" (16:9)
Max. Resolution	1920 x 1080 (Full HD)
Display Color	16.7 M (RGB 8-bit)
Backlight	LED Backlight
Brightness (cd/m2)	250 (Optional, Up to 1200)
Viewing Angles	89/89/89/89
Contrast Ratio	3000:1
Touch Screen
Type	10-point Projected Capacitive
Transparency	? 85%
Surface Hardness	7H Surface Hardness
Control Interface	USB Interface
System
Processor	Intel® Core™ i7/i5/Celeron® Processor (Skylake-U)
Chipset	Intel® SoC
Memory	2 DDR4 2133MHz SO-DIMMs, up to 32GB
Graphics	Intel® HD Graphics 520
Ethernet	- Intel® I219 Gigabit LAN - Intel® I210 Gigabit LAN
Audio	Realtek ALC892, 5.1 Channel HD Audio
OS	Windows 10, Windows 8.1, Windows 7, Linux
Storage
SATA	2 SATA III (6Gbps)
mSATA	1 SATA III (Mini PCIe Type, 6Gbps)
Storage Device	- 1 External CFast Socket - 2 2.5" SSD/HDD Tray

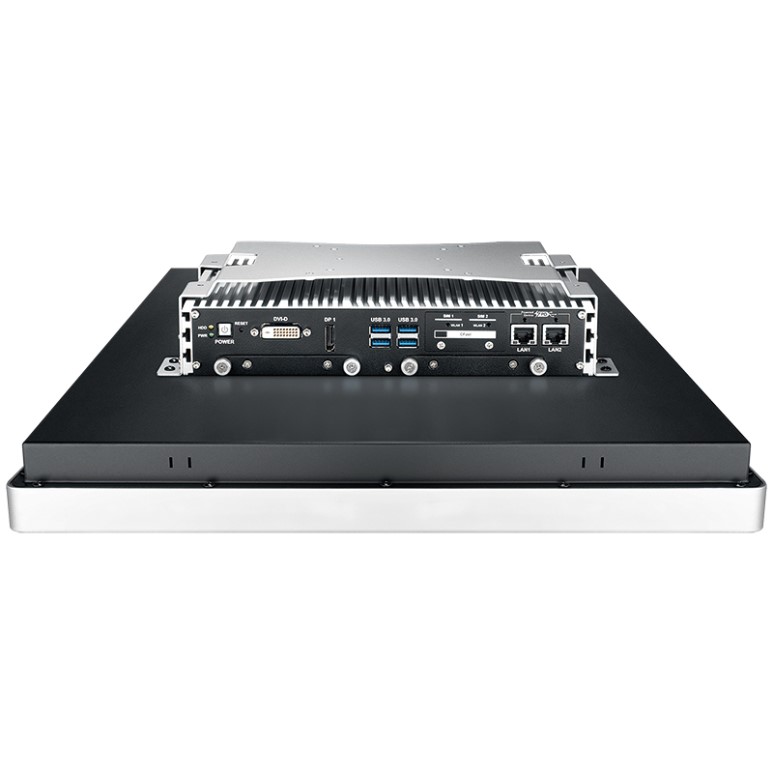

I/O Interface
Serial	4 COM RS-232/422/485
USB	5 USB 3.0
DIO	16 Isolated DIO : 8 DI, 8 DO
LAN	PoER : 6 GigE LAN with 4 IEEE 802.3at PoE+ PDR : 2 GigE LAN support IEEE 802.3at Powered Device (PD) 2R : 2 GigE LAN
Audio	1 Mic-in, 1 Line-out
Display	- DVI-D : Up to 1920 x 1200 @ 60Hz - DisplayPort : Up to 4096 x 2304 @ 60Hz
LED	Power, HDD, PoE, PD
CFast	1 CFast Socket, Push-in/Push-out Ejector
SIM Card	2 SIM Card Socket
Power
Power Input	6V to 36V, DC-in
Power Interface	- 3-pin Terminal Block : V+, V-, Frame Ground - Mini-DIN 4-pin
Power Adapter	AC to DC 120W Power Adapter (Optional)
Ignition Control	16 Mode (Internal)
Remote Switch	3-pin Terminal Block : On, Off, IGN
Surge Protection	Up to 80V/1ms Transient Power
Others
TPM	Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer	Reset : 1 to 255 sec./min. per step
Smart Management	Wake on LAN, PXE supported
HW Monitor	Monitoring temperature, voltages. Auto throttling control when CPU overheats
Mechanical
Dimensions (W x H x L)	538.4mm x 329.4mm x 115.2mm (21.2" x 12.97" x 4.53")
Weight	9.2 kg (20.26 lb)
Front Panel Protection	IP65 compliant
Mounting	- VESA mount (75 x 75mm, 100 x 100mm) - Panel mount
Environment
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity	10% to 90%, non-condensing
Relative Humidity	95% @ 50°C
Vibration	- IEC 60068-2-64 - Non-operation : 10Hz to 200Hz, 1.5 Grms, X, Y, Z, 30 mins each Axis
Shock	- IEC 60068-2-27 - 20G, Half-sine, 11ms
EMC	CE, FCC
