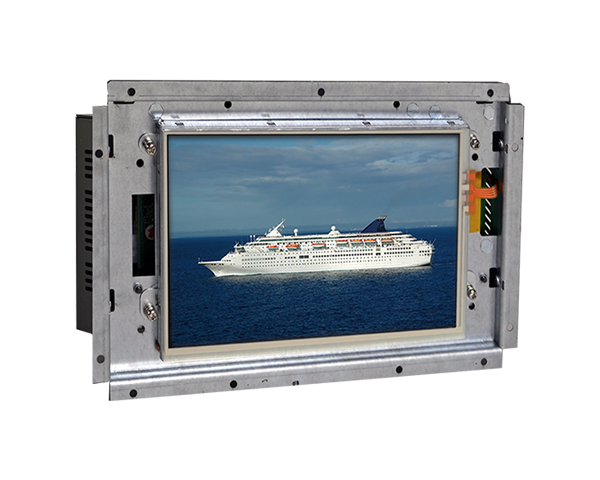

| KS200/KS202 | 산업용보드 > FULL IP65/66패널PC | 0 |
|---|---|---|
|

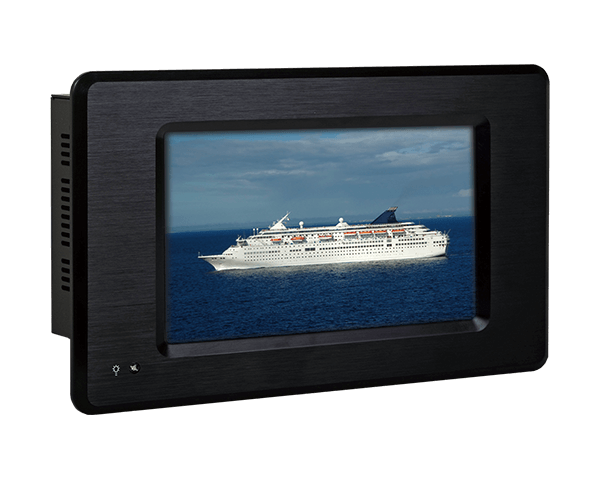

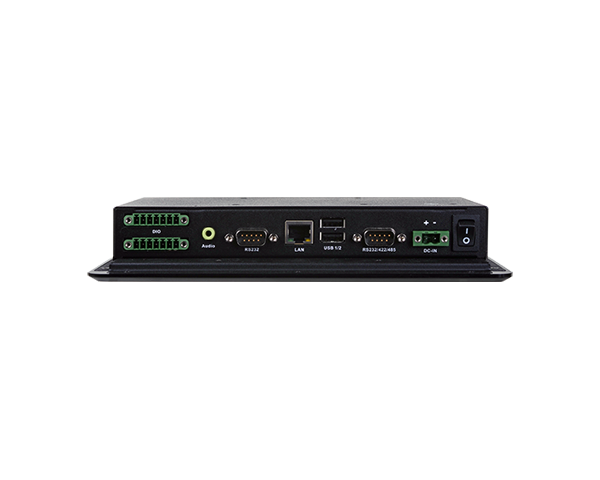

7" WVGA Touch Screen Fanless Panel PC TI® AM3517, ARM 512MB DDR2 onboard 512MB NAND Flash onboard 2 USB 2.0, 1 LAN, 2 COM, 1 SD/MMC, 12-bit GPIO 10-Year CPU Life Cycle Support ? System Processor TI® AM3517 Sitara ARM Cortex-A8 Memory 512MB DDR2 onboard (4 DDR2 64Mx16 RAM) Display and Touch Screen Display 7" 800x480 WVGA TFT LCD Panel with 4-Wire Resistive Touch Screen (TI® TSC2004 touch screen controller) Brightness 400 cd/m² Storage External/Internal 1 x SD/MMC Card Socket 512MB NAND Flash (Samsung K9F4G08U0D flash memory 512Mx 8bit) Ethernet Controller 1 x LAN8710 10/100Mbps LAN Chip LED Indicators 1 x Power LED Bottom I/O Ethernet 1 x LAN (RJ-45) Serial 1 x RS-232/422/485 (DB-9) 1 x RS-232 (DB-9) USB 2 x USB 2.0 (Type A) Audio 1 x Line-out DIO 1 x 12-bit DIO (2x 7-pole terminal block) Buttons 1 x Power Switch Power Type 9~30V DC Connector 2-Pole Terminal Block OS Support OS Support Windows CE 6.0 Environment Operating Temperature -20°C ~ 65°C Storage Temperature -30°C ~ 80°C Relative Humidity 95% RH at 65°C, 1 Week Mechanism Construction Aluminum Front Bezel Rugged Metal Housing IP Rating IP65 Front Panel Protection Mounting Wall mount (VESA 75x75) Panel mount (mounting clamp) Dimensions (W x H x D) KS200: 235mm x 150mm x 40.8mm (W x H x D) KS202 (Open Frame): 230.40mm x 142.32mm x 35.8mm (W x H x D) Weight KS200: 2.10 kg KS202 (Open Fram): 1.90 kg Standards and Certifications Certifications CE, FCC Class B, RoHS, UL, Compliant with IEC 60945 (Protected B) Packing List Packing List 1 KS200/KS202 Touch Panel PC 1 Poron foam 1 24V power adapter 3 Terminal blocks 1 Quick Installation Guide Note: Please choose "KS200/KS202 product page >Download button" to download the Driver and Manual.
