| KS310-IMX6 | 산업용보드 > FULL IP65/66패널PC | 0 |
|---|---|---|

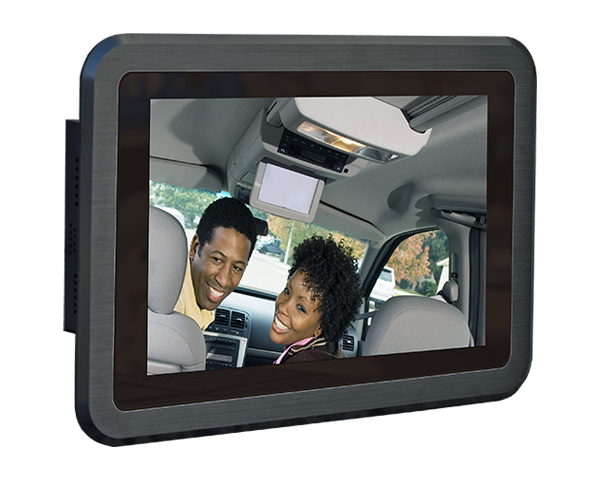

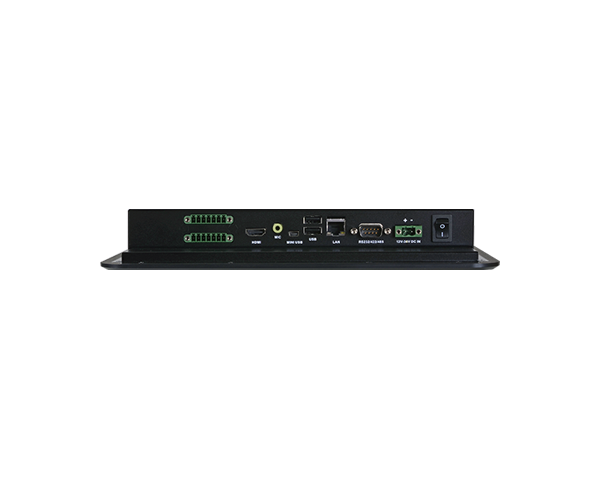

10.1" TFT Touch ARM-Based Fanless Panel PC 4GB eMMC onboard 1 SD card socket 1 HDMI, 2 USB 2.0, 1 USB Client, 1 LAN, 2 COM, 12-bit DIO Wide voltage 12~36V DC-in 15-Year CPU Life Cycle Support ? System Processor Freescale i.MX 6 series processor i.MX6L: i.MX 6DualLite at 1.0GHz, two cortex-A9 cores Memory 2GB DDR3 Memory Down Display and Touch Screen Display 10.1” 1280x800 TFT LCD Panel with Capacitive Touch Screen Brightness 300 cd/m² Storage External/Internal 1 x SD Card Socket 4GB eMMC Onboard Expansion Interface 1 x Full-size Mini PCIe (PCIe/USB) 1 x mSATA (Mini PCIe type) 1 x SIM Card Socket (reserved for 3G/LTE module) Ethernet Controller 1 x Atheros AR8033 Ethernet PHY (10/100Mbps, 1Gbps data transmission) Top I/O Serial 1 x RS232/422/485 (DB-9) Bottom I/O Ethernet 1 x GbE (RJ-45) Serial 1 x RS-232 (DB-9) USB 2 x USB 2.0 (Type A) 1 x USB Client (Type Mini B) Display 1 x HDMI Audio 1 x Line-out/Mic-in 2 x Built-in 1W Speaker (left and right sides) DIO 1 x 12-bit DIO (7-pole terminal block) Buttons 1 x Power Switch Power Type 12~36V DC Connector 2-Pole Terminal Block OS Support OS Support Android 4.3 Environment Operating Temperature 0°C ~ 55°C Storage Temperature -30°C ~ 80°C Relative Humidity 85% RH at 65°C Mechanism Construction Aluminum Front Bezel Rear Cover: Sheet Metal IP Rating IP65 Front Panel Protection Mounting Wall mount (VESA 75x75) Panel mount (mounting clamp) Dimensions (W x H x D) 293mm x 204mm x 43.4mm (W x H x D) Weight 1.74 kg Standards and Certifications Shock Operating: 3G peak acceleration (11 m sec. duration) Non-operating: 10G peak acceleration (11 m sec. duration) IEC 68-2-64 compliant Vibration Operating: random 1G, 5~500 Hz Non-operating: Sine wave, 2G, 10~500Hz Certifications CE, FCC Class A, RoHS Packing List Packing List 1 KS310-IMX6 Touch Panel PC 1 Quick Installation Guide Note: Please choose "KS310-IMX6 product page >Download button" to download the Driver and Manual.
