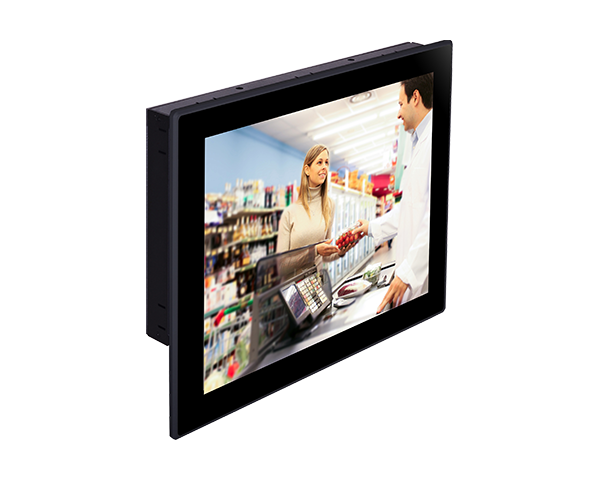

| KS150-BT | 산업용보드 > FULL IP65/66패널PC | 0 |
|---|---|---|

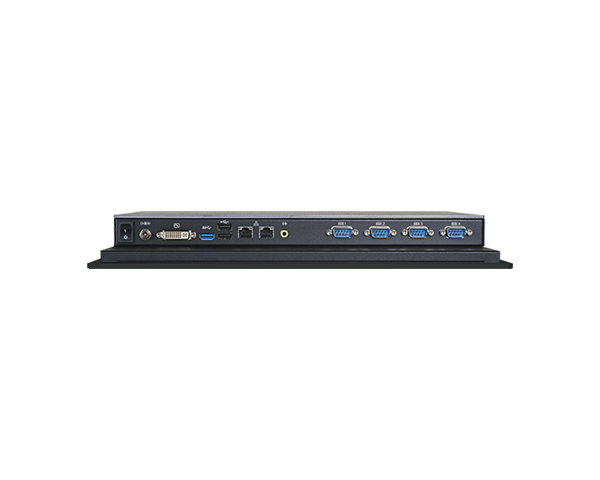

  1x 2.5" SATA drive bay IP65 Front Panel Protection VESA/Wall/Panel Mount Wide operating temperature: -10~60°C 15-Year CPU Life Cycle Support ? System Processor Intel Atom® E3845, Quad Core, 2M Cache, 1.91GHz, 10W Intel Atom® E3825, Dual Core, 1M Cache, 1.33GHz, 6W BGA 1170 packaging technology 22nm process technology Memory Two 204-pin SODIMM up to 8GB (E3845) Dual Channel DDR3L 1333MHz One 204-pin SODIMM up to 4GB (E3825) Single Channel DDR3L 1066MHz BIOS AMI SPI 64Mbit Display and Touch Screen Display 15" 1024x768 TFT LCD Panel with Capacitive/5-wire Resistive Touch Screen Brightness 250 cd/m² View Angle 160° / 140° Backlight Lifetime 50,000 MTBF LED Backlight Graphics Controller Intel® HD Graphics Display 1 x DVI-I DVI-I: resolution up to 1920x1080 @ 60Hz Single Display 1 x DVI-I Storage External/Internal 1 x 2.5" SATA 2.0 Drive Bay Expansion Interface 1 x Full-size Mini PCIe (PCIe/USB/SATA) Audio Audio Codec Realtek ALC888 5.1-channel Ethernet Controller 2 x Intel® I210 PCIe (10/100/1000Mbps) Bottom I/O Ethernet 2 x GbE (RJ-45) Serial 3 x RS-232/422/485 (RS232 and/or power) (DB-9) 1 x RS-232 (DB-9) USB 1 x USB 3.0 2 x USB 2.0 Display 1 x DVI-I Audio 1 x Line-out Buttons 1 x Power Switch Power Type 12V DC Connector DC Jack OS Support OS Support Windows 7 Windows 8 Linux (Project base upon request only, with 3 months lead time) Environment Operating Temperature -10°C ~ 60°C (with SSD) 0°C ~ 45°C (with HDD) Storage Temperature -20°C ~ 70°C Relative Humidity 85% RH at 60°C (with SSD) 85% RH at 45°C (with HDD) Mechanism Construction Aluminum Front Bezel Rear Panel: Aluminum and SGCC IP Rating IP65 Front Panel Protection Mounting Wall Mount (VESA 75x75 or 100x100) Panel Mount (mounting clamp) Dimensions (W x H x D) 373mm x 297mm x 46.10mm (W x H x D) Weight 3.8 kg Standards and Certifications Shock Operating: 3G Peak Acceleration Non-operating: 5G Peak Acceleration Vibration Operating: 1G, 5~500Hz Non-operating: 3G, 10~500Hz Certifications CE, FCC Class A, RoHS Packing List Packing List 1 KS150-BT Touch Panel PC 1 Poron foam 1 Chassis Panel Mount Bracket 1 Quick Installation Guide Note: Please choose "KS150-BT product page >Download button" to download the Driver and Manual.
