| KS070-AL | 산업용보드 > FULL IP65/66패널PC | 0 |
|---|---|---|
|

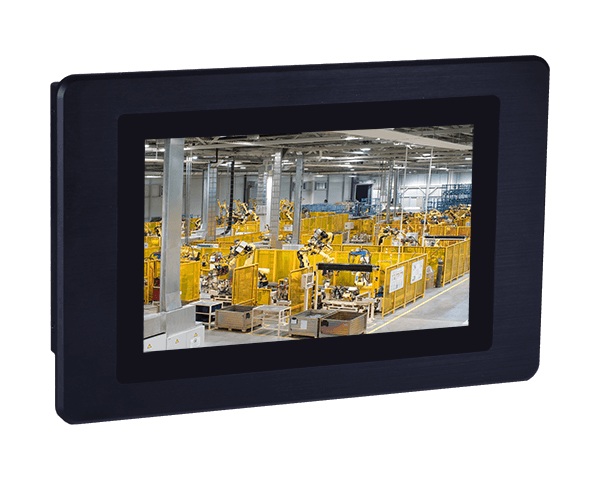

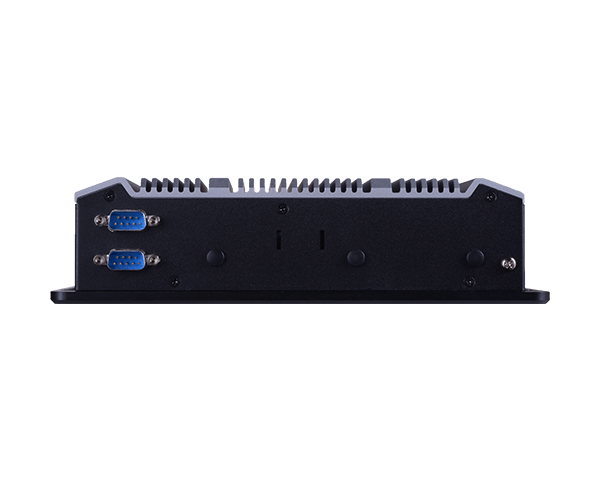

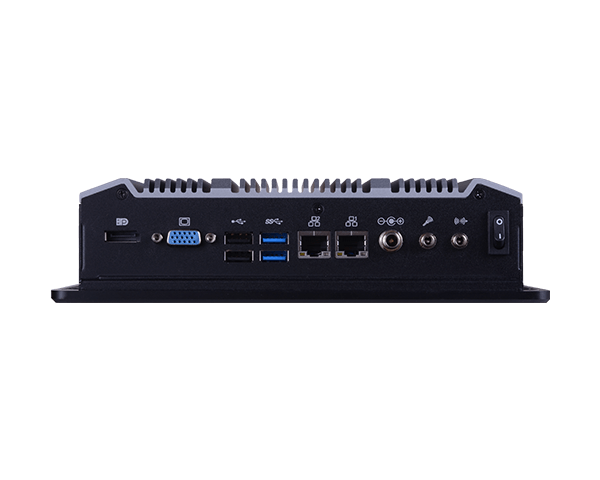

7" 800x480 TFT LCD panel with touch screen Intel Atom® Processor E3900 IP65 front panel protection Dual displays: VGA + DP++ Rich I/O: 2 LAN, 2 COM, 2 USB 3.0, 2 USB 2.0 15-Year CPU Life Cycle Support ? System Processor Intel Atom® Processor E3900 Series, BGA 1296 Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W Memory One 204-pin SODIMM up to 8GB (4GB memory by default) Single Channel DDR3L 1866MHz BIOS Insyde SPI 128Mbit (supports UEFI boot only) Display and Touch Screen Display 7” 800x480 TFT LCD Panel with Capacitive/Resistive Touch Screen Brightness 500 cd/m² Contrast 400:1 Backlight Lifetime 50,000 hours Graphics Controller Intel® HD Graphics Feature OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0 HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4 HW Encode: H.264, MPEG2, MPEG4 Display 1 x VGA 1 x DP++ VGA: resolution up to 1920x1200 @ 60Hz DP++: resolution up to 4096x2160 @ 60Hz Dual Displays VGA + DP++ Storage External/Internal 1 x CFast Socket Expansion Interface 1 x Full-size Mini PCIe (USB/PCIe) 1 x M.2 2242 B-key (PCIe/USB 2.0/SATA 3.0) Audio Audio Codec Realtek ALC262 Ethernet Controller 2 x Intel® I211AT PCIe (10/100/1000Mbps) Top I/O Serial 2 x RS-232/422/485 (DB-9) Wi-Fi Antenna 3 x Wi-Fi Module Antenna Hole DIO 1 x 8-bit DIO (DB-9) (available upon request) Buttons 1 x Power Button Bottom I/O Ethernet 2 x GbE (RJ-45) (10/100/1000Mbps) USB 2 x USB 3.0 (type A) 2 x USB 2.0 (type A) Display 1 x VGA 1 x DP++ Audio 1 x Line-out 1 x Mic-in Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Power Type 12V DC Connector DC Jack OS Support OS Support (UEFI Only) Windows 10 IoT Enterprise 64-bit Environment Operating Temperature -20 to 55°C Storage Temperature -30 to 80°C Relative Humidity 5 to 85% RH (non-condensing) Mechanism Construction Sheet Metal IP Rating IP65 Front Panel Protection Mounting Panel/VESA Mount Dimensions (W x H x D) 230mm x 150mm x 58.3mm Weight 1.5kg Standards and Certifications Shock OP: Half-sine, 3G @ 11ms Non-OP: Half-sine, 5G @ 11ms Vibration OP: Random, 1Grms @ 5~500Hz, 30min Non-OP: Sweep sine, 3Grms @ 10~500Hz, 30min Certifications TBD Packing List Packing List 1 KS070-AL Touch Panel PC 1 Poron foam 1 Chassis Panel Mount Bracket 1 Quick Installation Guide Note: Please choose "KS070-AL product page >Download button" to download the Driver and Manual.
