| KS156-AL | 산업용보드 > FULL IP65/66패널PC | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr

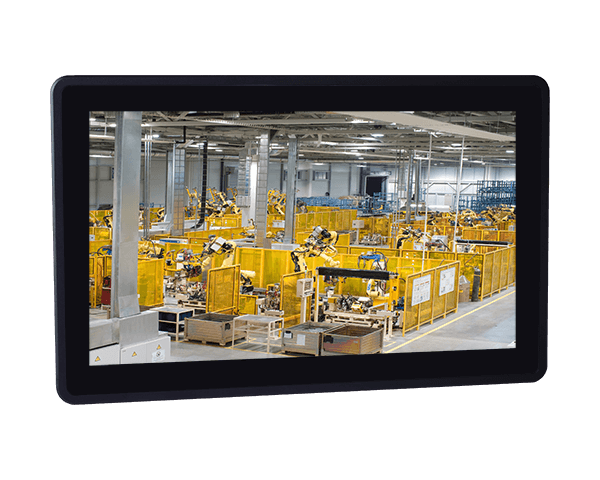

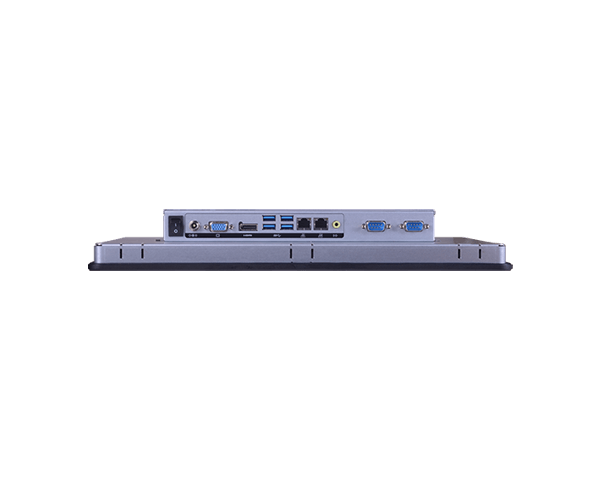

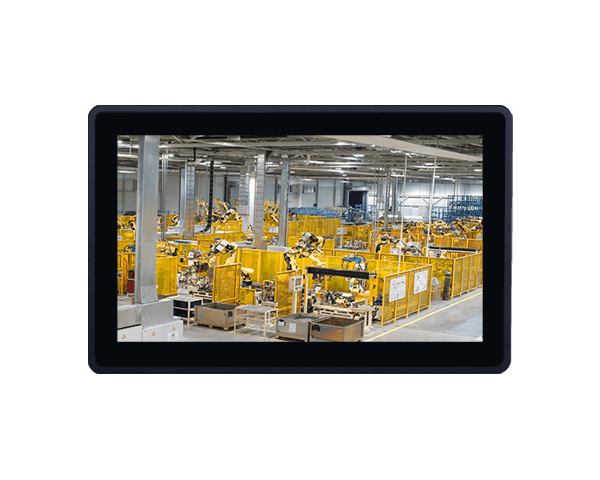

15.6" 1366x768 TFT LCD Panel with Touch Screen 1x 2.5" SATA drive bay IP65 Front Panel Protection VESA/Panel Mount Rich I/O: 2 LAN, 2 COM, 4 USB 3.0 15-Year CPU Life Cycle Support Until Q1, 2031 ? System Processor Intel Atom® Processor E3900 Family, BGA 1296 Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W Memory Two 204-pin SODIMM up to 16GB Dual Channel DDR3L 1867MHz BIOS Insyde SPI 64Mbit (supports UEFI boot only) Display and Touch Screen Display 15.6” 1366x768 TFT LCD Panel with Capacitive/5-Wire Resistive Touch Screen Brightness 400 cd/m² Contrast 500:1 Backlight Lifetime 50,000 hours Graphics Controller Intel® HD Graphics Feature OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVCOpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC Display 1 x VGA 1 x HDMI VGA: resolution up to 1920x1200 @ 60Hz HDMI: resolution up to 3840x2160 @ 30Hz Dual Displays HDMI + VGA Storage External/Internal 1 x 2.5" SATA 2.0 Drive Bay Expansion Interface 1 x M.2 1 x Full-size Mini PCIe (PCIe/USB) Audio Audio Codec Realtek ALC888 5.1-channel Ethernet Controller 2 x Intel® I210AT PCIe (10/100/1000Mbps) LED Indicators 1 x Power LED 1 x HDD LED Top I/O Antenna Connectors 2 x Antenna Hole for Wi-Fi or Cell Module Bottom I/O Ethernet 2 x GbE (RJ-45) (10/100/1000Mbps) Serial 2 x RS-232/422/485 (DB-9) USB 4 x USB 3.0 (type A) Display 1 x VGA 1 x HDMI Audio 1 x Line-out Buttons 1 x Power Button Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Power Type 12V DC 15V - 36V DC Connector DC Jack OS Support OS Support (UEFI Only) Windows: Windows 10 (64-bit) Linux: Yocto Project Fedora 24 (Intel Graphics Driver available) Ubuntu 16.04 (Intel Graphics Driver available) Environment Operating Temperature 0 to 50°C Storage Temperature -30 to 70°C Relative Humidity 5 to 85% RH (non-condensing) Mechanism Construction Sheet Metal IP Rating IP65 Front Panel Protection Mounting Panel/VESA Mount Dimensions (W x H x D) 412.1 mm x 261.4 mm x 63 mm (W x H x D) Weight TBD Standards and Certifications Shock OP: Half-sine, 3G @ 11ms Non-OP: Half-sine, 5G @ 11ms Vibration OP: Random, 1Grms @ 5~500Hz, 30min Non-OP: Sweep sine, 3Grms @ 10~500Hz, 30min Certifications TBD Packing List Packing List 1 KS156-AL Touch Panel PC 1 Poron foam 1 Chassis Panel Mount Bracket 1 Quick Installation Guide Note: Please choose "KS156-AL product page >Download button" to download the Driver and Manual.
