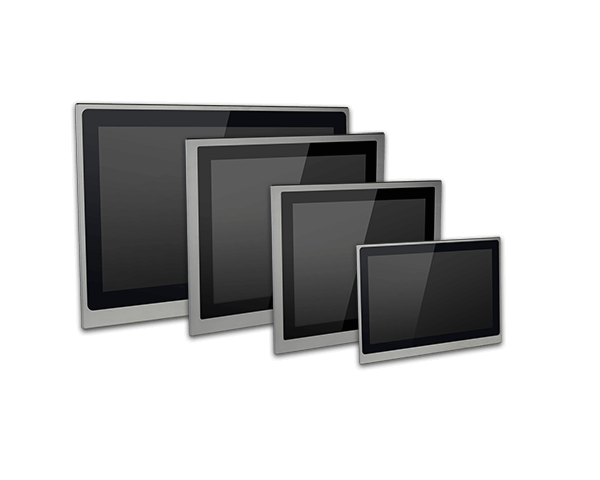

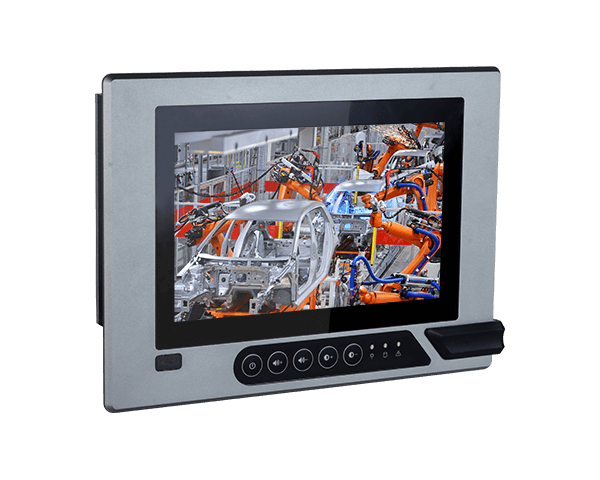

Support Adaptive Display Platform Front OSD & Accessible 2.5" SATA Drive Bay Multiple Panel Sizes with Resistive/P-Capacitive Touch Screen Supports 24V / 9~48V Power Board Module Fanless, Cableless Design 15-Year CPU Life Cycle Support ? System Processor Intel Atom® Processor E3900 Series, BGA 1296 Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W Memory One 204-pin SODIMM up to 8GB Single Channel DDR3L 1866MHz BIOS Insyde SPI 128Mbit (supports UEFI support only) Display and Touch Screen Display KS070-AL: 7" TFT LCD Panel KS150-AL: 15" TFT LCD Panel KS190-AL: 19" TFT LCD Panel KS215-AL: 21.5" TFT LCD Panel Brightness KS070-AL: 500 (cd/m²) KS150-AL: 300 (cd/m²) KS190-AL: 350 (cd/m²) KS215-AL: 250 (cd/m²) Backlight Lifetime KS070-AL: 50,000 hours KS150-AL: 70,000 hours KS190-AL: 70,000 hours KS215-AL: 30,000 hours Max. Resolution KS070-AL: 800 x 480 KS150-AL: 1024 x 768 KS190-AL: 1280 x 1024 KS215-AL: 1920 x 1080 Graphics Controller Intel® HD Graphics Feature OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0 HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4 HW Encode: H.264, MPEG2, MPEG4 Display 1 x DP++ 1 x VGA or DVI-D (DVI-D available upon request) DP++: resolutionp u to 4096x2160 @ 60Hz VGA: Resolution up to 2560x1600 @ 60Hz DVI-D: Resolution up to 1920x1200 @ 60Hz Triple Displays Panel Module, DP++, VGA or DVI-D Storage External/Internal 1 x 2.5" SATA 3.0 Drive Bay (accessible) 1 x mSATA (shared by Mini-PCIe Socket) Expansion Interface 1 x Full-size Mini PCIe (USB/PCIe) 1 x Half-size Mini PCIe (USB/PCIe/mSATA) 1 x SIM Slot Audio Audio Codec Realtek ALC262 Ethernet Controller 2 x Intel® I210AT PCIe (10/100/1000Mbps) LED Indicators 1 x Power LED 1 x HDD LED Top I/O Serial 2 x RS-232/422/485 (DB9) 2 x RS-232/422/485 (available upon request) Support 5V/12V Power USB 2 x USB 3.0 (type A) 2 x USB 2.0 (type A) 2 x USB 2.0 (available upon request) Wi-Fi Antenna 4 x Wi-Fi Module Antenna Hole DIO 4 x DI / 4 x DO (10-pin terminal block) (available upon request) Buttons 1 x Power Button Ethernet 2 x GbE (RJ-45) (10/100/1000Mbps) Support Jumbo Frame, IEEE1588v2, WOL, PXE 802.3 af PoE (PSE), Individual Port 15.4W (available upon request) Bottom I/O Display 1 x DP++ 1 x VGA or DVI-D (DVI-D available upon request) Audio 1 x Line-out 1 x Mic-in Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Power Type 12 VDC Input (available upon request) 24 VDC Input (available upon request) 9~48 VDC Input (available upon request) Power Management Includes Ignition On/Off and System On/Off Delay Time Control Connector 3-pin Terminal Block OS Support OS Support (UEFI Only) Windows 10 IoT Enterprise 64-bit Ubuntu 16.04.2 Mechanism Dimensions KS070-AL: 224 x 163.35 x 72.9 KS150-AL: TBD KS190-AL: TBD KS215-AL: 553.4 x 365.23 x 75.9 Construction Aluminum Front Bezel IP Rating IP65 Front Panel Protection Mounting Panel/VESA Mount Weight TBD Packing List Packing List 1 Single Box 1 3 pin Terminal Block Connector 1 2 pin Terminal Block Connector 2 Mini PCIe Screw 1 SATA Screw 8 Panel Mount Note: Please choose "KS-AL Series product page >Download button" to download the Driver and Manual.
