| KS057R-FS | 산업용보드 > FULL IP65/66패널PC | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr

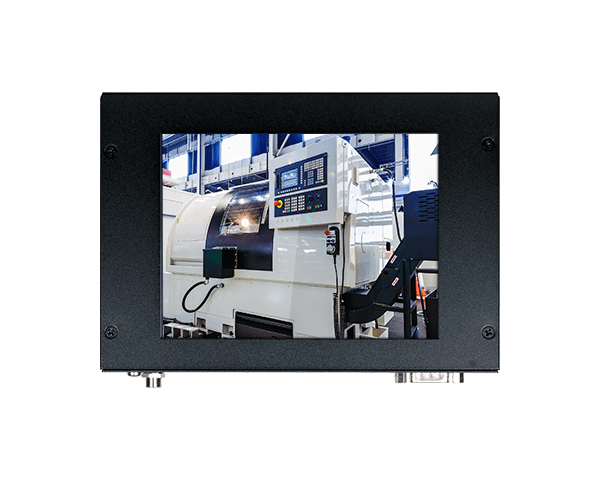

5.7" 640x480 TFT LCD panel with touch screen NXP Cortex-A9 i.MX6 DualLite 1.0 GHz Support Wall / Din-rail Mounting PLC Polling Device ? System Processor NXP i.MX6 Cortex-A9 DualLite, 1.0 GHz Memory 1GB SDRAM Memory Down Flash 4MB NOR Flash Display and Touch Screen Display 5.7” 640x480 TFT LCD Panel with Resistive Touch Screen Brightness 400 cd/m² Contrast 800:1 Backlight Lifetime 50,000 hours Graphics Display 1 x HDMI HDMI: resolution up to 1920x1200 @ 60Hz Storage External 1 x Micro SD Slot eMMC 8GB eMMC onboard Expansion Interface 1 x Full-size Mini PCIe (PCIe/USB) Ethernet Controller 1 x ATHEROS AR8033 Ethernet Controller (10/100/1000Mbps) 1 x LAN7500 Ethernet Controller (10/100/1000Mbps) I/O Ethernet 2 x GbE (RJ-45) (10/100/1000Mbps) Serial 1 x RS-485 1 x RS-232 USB 2 x USB 2.0 (type A) Display 1 x HDMI Buttons 1 x Reset Switch Antennas 2 x Wi-Fi Module Antenna Hole Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Power Type 12V DC Connector DC Jack OS Support OS Support Yocto 1.8 (default preloaded on eMMC) Android 5.1.1 Environment Operating Temperature -20 to 60°C With Extended Temperature Peripherals; Ambient with Air Flow Storage Temperature -30 to 80°C Relative Humidity 5 to 90% RH (non-condensing) Mechanism Dimensions 170.2mm x 121mm x 57.5mm Construction Sheet Metal Mounting Wall, Din-rail Weight TBD Standards and Certifications Shock OP: Half-sine, 3G @ 11ms Non-OP: Half-sine, 5G @ 11ms Vibration OP: Random, 1Grms @ 5~500Hz, 30min Non-OP: Sweep sine, 3Grms @ 10~500Hz, 30min Certifications CE, FCC Class A Packing List Packing List 1 KS057R-FS Touch Panel PC 1 Poron foam 2 Wall Mount Bracket
