| TPC150 | 산업용보드 > FULL IP65/66패널PC | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr

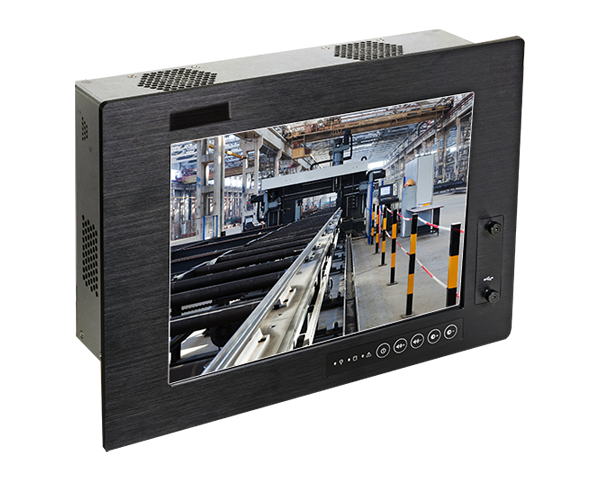

15" 1024x768 TFT LCD Panel with Touch Screen 3rd/2nd Gen Intel® Core™ with Intel® H61 2 USB 2.0 at the front panel for easy access 5 function keys at the front panel Built-in antenna for optional Wi-Fi 7-Year CPU Life Cycle Support ? System Processor 3rd generation Intel® Core™ processors 2nd generation Intel® Core™ processors Chipset Intel H61® Express Chipset Memory Two SODIMM up to 16GB DDR3 1333/1600MHz (3rd gen processors) DDR3 1066/1333MHz (2nd gen processors) Display and Touch Screen Display 15” 1024x768 TFT LCD Panel with 5-wire Resistive Touch Screen Brightness 250 cd/m² Backlight Lifetime 50,000 MTBF LED Backlight Graphics Controller Intel® HD Graphics Display 1 x HDMI 1 x DVI-I HDMI, DVI-I: resolution up to 1920x1200 Storage External/Internal 1 x 2.5" SATA 2.0 Drive Bay 1 x Optical Drive Bay (available upon request) Expansion Interface 1 x PCIe x1 and 1 x PCI (X100-3PE2) 2 x PCI (X100-2P1M) 2 x Full-size Mini PCIe (PCIe/USB) Audio Audio Codec Realtek ALC886 5.1-channel 2 x 3W Speaker (left and right sides) Ethernet Controller 1 x Intel® W82579LM PCIe (10/100/1000Mbps) 1 x Intel® W82574L PCIe (10/100/1000Mbps) LED Indicators 1 x Power LED 1 x HDD LED 1 x Alarm LED Front I/O USB 2 x USB 2.0 Buttons 2 x USB 2.0 Wi-Fi Antenna 1 x Wi-Fi Module Antenna Hole Bottom I/O Ethernet 2 x GbE (RJ-45) Serial 1 x RS-232/422/485 (DB-9) 1 x RS-232 (DB-9) USB 4 x USB 2.0 Display 1 x DVI-I 1 x HDMI Audio 1 x Line-out 1 x Mic-in 1 x Line-in PS/2 1 x PS/2 (keyboard) 1 x PS/2 (mouse) Buttons 1 x Power Switch Cooling Fan Smart Fan System Control (suitable for quiet environments) Power Type Standard: ATX power type, AC 100-240V, 3.5A, 250W Option: 24V DC-in 3-pole terminal block Available upon request: 12V and 30V DC-in 3-pole terminal block OS Support OS Support Windows XP, WES 2009, POSReady 2009, Windows 7, WES 7 Linux (Distribution available upon request) Environment Operating Temperature -10°C ~ 50°C Storage Temperature -20°C ~ 60°C Relative Humidity 90% RH at 50°C, 1 week Mechanism Construction Aluminum Front Bezel Rear Panel: Sheet Metal IP Rating IP65 Front Panel Protection Mounting VESA Mount (75x75 and 100x100) Wall Mount Bracket Panel Mount (mounting clamp) Dimensions (W x H x D) 410mm x 320mm x 106mm (W x H x D) Weight 7.8 kg Standards and Certifications Shock Operating: 3G Peak Acceleration (11 msec. duration) Non-operating: 10G Peak Acceleration (11 msec. duration) IEC 68-2-27 Compliant Vibration Operating: 1G, 5~500Hz Non-operating: 1.5G, 5~25Hz IEC 68-2-64 Compliant Certifications CE, FCC Class A, RoHS, UL Packing List Packing List 1 TPC150 Touch Panel PC 1 120W power adapter (only for model TPC-1502TR-SBDCMR-R10 and TPC-1502TR-SBDCMR-R11) 1 Quick Installation Guide Note: Please choose "TPC150 product page >Download button" to download the Driver and Manual.
