| TPC150-SD | 산업용보드 > FULL IP65/66패널PC | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr

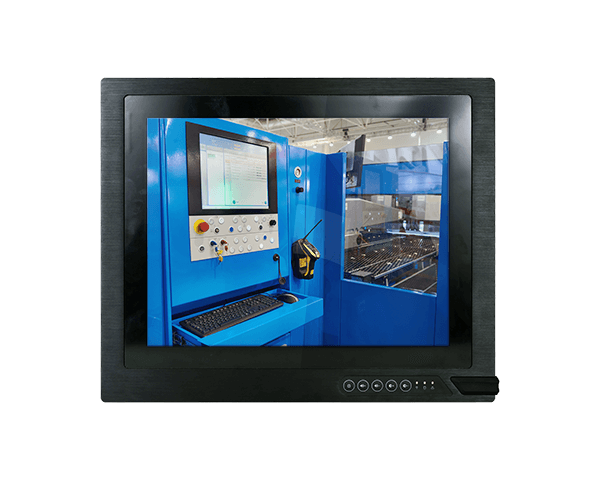

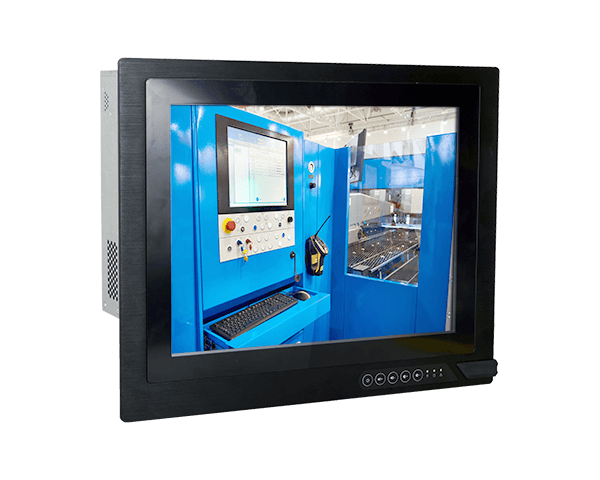

15" 1024x768 TFT LCD Panel with Touch Screen 2 x 2.5" SATA drive bays 1 USB 2.0 at the front panel for easy access 5 function keys at the front panel VESA/Panel Mount 15-Year CPU Life Cycle Support ? System Processor 7th Generation Intel® Core™ Processors, LGA 1151 Socket Intel® Core™ i7-7700 Processor, Quad Core, 8M Cache, 3.6GHz (4.2GHz), 65W Intel® Core™ i5-7500 Processor, Quad Core, 6M Cache, 3.4GHz (3.8GHz), 65W Intel® Core™ i3-7101E Processor, Dual Core, 3M Cache, 3.9GHz , 65W 6th Generation Intel® Core™ Processors, LGA 1151 Socket Intel® Core™ i7-6700, Quad Core, 8M Cache, 3.4GHz (4.0GHz), 65W Intel® Core™ i5-6500, Quad Core, 6M Cache, 3.2GHz (3.6GHz), 65W Intel® Pentium® G4400, Dual Core, 3M Cache, 3.3GHz, 47W Intel® Celeron® Processor G3900, Dual Core, 2M Cache, 2.8GHz, 65W Memory Two 260-pin SODIMM up to 32GB Dual Channel DDR4 1866/2133MHz Display and Touch Screen Display 15" 1024x768 TFT LCD Panel with Projected Capacitive Touch and Resistive Touch Screen Brightness 420 cd/m² Contrast 2000: 1 View Angle 307.4 (H) / 231.3 (V) Max. Color 16.7M Light Transmission Over 90% Backlight Lifetime 50,000 MTBF LED Backlight Storage External/Internal 2 x 2.5" SATA 2.0 Drive Bay Expansion Interface 1 x Full-size mSATA (PCIe/USB) 2 x PCIe x8 (Q170) 2 x PCI + 1 x Mini PCIe (H110) Ethernet Controller 1 x Intel® I211AT PCIe (10/100/1000Mbps) 1 x Intel® I219V PCIe (10/100/1000Mbps) Front I/O USB 1 x USB 2.0 Rear I/O Ethernet 2 x GbE (RJ-45) Serial 1 x RS-232 (DB-9) 1 x RS-232 (DB-9) (available upon request) 1 x RS-232/422/485 (available upon request) USB 4 x USB 3.0 2 x USB 2.0 PS/2 1 x PS/2 (mini-DIN-6) Display 1 x VGA 1 x DVI-I (DVI-D signal) 1 x DP++ Audio 1 x Line-out (available upon request) Power Type 24V DC Connector 3-pin C14 Connector Consumption TBD OS Support OS Support Windows 7 (/WES7) 32/64-bit Windows 10 IoT Enterprise 64-bit Ubuntu 15.10 (Intel graphic driver available) Environment Operating Temperature 0 to 50°C Storage Temperature -30 to 70°C Relative Humidity 10% to 90% @ 40°C (non-condensing) Mechanism Construction Sheet Metal IP Rating IP65 front bezel Mounting Panel/VESA (75x75) Mount Dimensions (W x H x D) TBD Weight TBD Standards and Certifications Certifications CE, FCC Class A Packing List Packing List 1 TPC150-SD Touch Panel PC 1 120W power adapter 1 Quick Installation Guide Note: Please choose "TPC150-SD product page >Download button" to download the Driver and Manual.
