| BPC420-BW | 산업용보드 > FULL IP65/66패널PC | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr

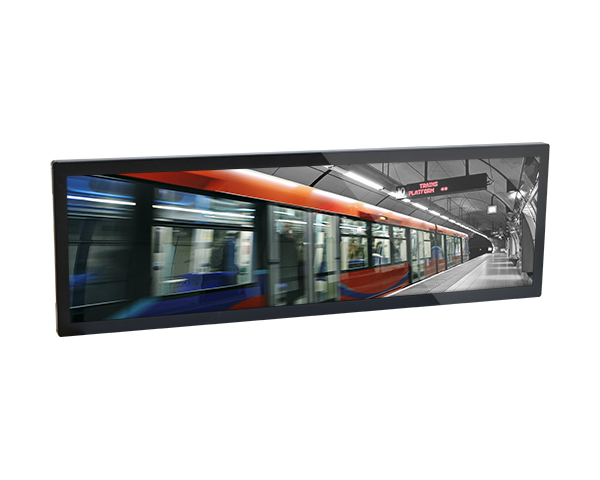

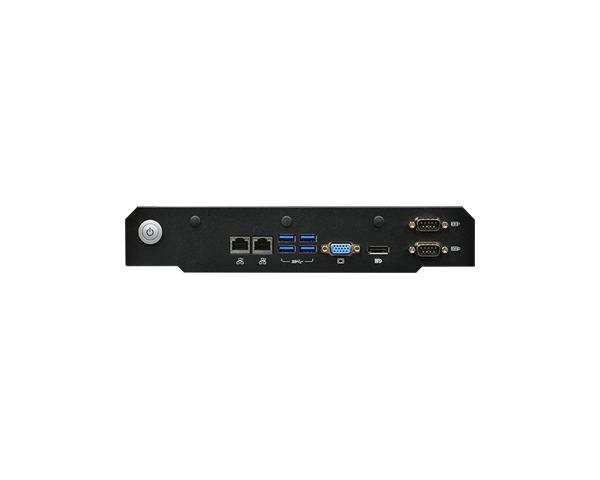

42" 1920x480 Bar Type Intel Pentium®/Celeron® Panel PC 700/1000 nits brightness Dual display outputs: VGA + DP++ VESA mount (400x200) Rich I/O: 2 LAN, 2 COM, 4 USB 3.0 15-Year CPU Life Cycle Support ? System Processor Intel® Pentium®/Celeron® Processor N3000 Family, BGA 1170 Intel® Pentium® Processor N3710, Quad Core, 2M Cache, 1.6GHz (2.56GHz), 6W Memory One 204-pin SODIMM up to 8GB (4GB DDR3L memory by default) Single Channel DDR3L 1600MHz BIOS Insyde SPI 64Mbit Display and Touch Screen Display 42" 1920x480 TFT LCD Panel Brightness 700 cd/m² (1500 cd/m² available upon request) Contrast 4000:1 Backlight Lifetime 50,000 hours Graphics Controller Intel® HD Graphics Feature OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0 HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4 HW Encode: H.264, MPEG2, MPEG4 Display 1 x VGA 1 x DP++ VGA: resolution up to 2560X1600 @ 60Hz DP: resolution up to 3840x2160 @ 30Hz or 2560x1600 @ 60Hz Single Display VGA + DP++ Storage External/Internal 1 x Full-size Mini PCIe (mSATA) 1 x SATA-DOM (available upon request) Expansion Interface 1 x Half-size Mini PCIe (PCIe/USB) 1 x Full-size mSATA (USB/SATA) 1 x SIM (available upon request) Audio Audio Codec Realtek ALC888S-VD2-GR Ethernet Controller 2 x Intel® I211AT PCIe (10/100/1000Mbps) LED Indicators 1 x Power LED Bottom I/O Ethernet 2 x GbE (RJ-45) (10/100/1000Mbps) Serial 2 x RS-232 (DB-9) USB 4 x USB 3.0 (type A) Display 1 x VGA 1 x DP++ Audio Speaker 2W+2W (available upon request) Buttons 1 x Power Button Antenna Connectors 3 x Antenna Hole for Wi-Fi or Cell Module Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Power Type AC Input 12V AC Input 9V-36V (available upon request) Connector C14 Power Inlet OS Support OS Support Windows 7 (32/64-bit) Windows 8.1 (64-bit) Windows 10 IoT Enterprise (32/64-bit) Ubuntu 15.10 (Intel graphic driver available) Environment Operating Temperature -10 to 50°C Storage Temperature -10 to 65°C Relative Humidity 5 to 95% RH (non-condensing) Mechanism Construction Sheet Metal IP Rating IP65 Front Protection Glass (available upon request) Mounting VESA Mount Dimensions (W x H x D) TBD Weight TBD Standards and Certifications Shock OP: Half-sine, 3G @ 11ms Non-OP: Half-sine, 5G @ 11ms Vibration OP: Random, 1Grms @ 5~500Hz, 30min Non-OP: Sweep sine, 3Grms @ 10~500Hz, 30min Certifications CE, FCC Class A Packing List Packing List 1 BPC420-BW Panel PC Note: Please choose "BPC420-BW product page >Download button" to download the Driver and Manual.
