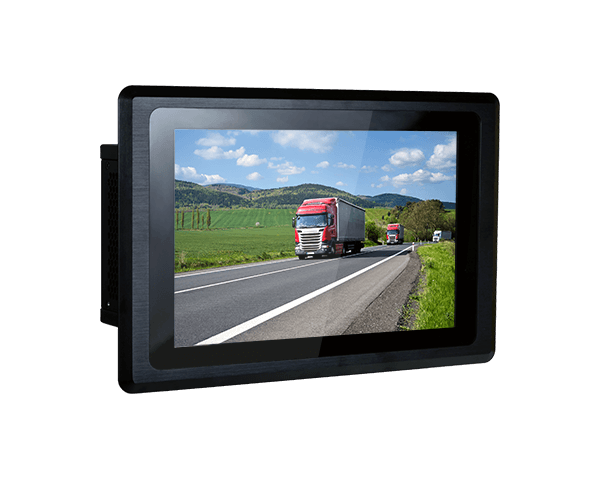

| VP101-BT | 산업용보드 > FULL IP65/66패널PC | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr
10.1" 1280x800 TFT LCD Panel with Touch Screen Supports Ignition Control and Delay On/Off Function IP65 Front Panel Protection VESA/Panel Mount Rich I/O: 2 LAN, 5 COM, 1 USB 3.0, 3 USB 2.0 15-Year CPU Life Cycle Support Until Q1' 28 (Based on Intel IOTG Roadmap) ? System Processor Intel® Atom™ Processor E3800 Series, BGA 1170 Intel® Atom™ Processor E3845, Quad Core, 2M Cache, 1.91GHz, 10W Intel® Atom™ Processor E3825, Quad Core, 1M Cache, 1.33GHz, 6W Memory 2GB/4GB ECC Memory Down Single Channel DDR3L 1333MHz BIOS AMI SPI 64Mbit Display and Touch Screen Display 10.1” 1280x800 TFT LCD Panel with Capacitive Touch Screen Brightness 500 cd/m² Contrast 800:1 Backlight Lifetime 50,000 hours Graphics Controller Intel® HD Graphics Feature DirectX 11, OCL 1.2, OGL 4.0 H.264, MPEG2, MVC, VC-1, WMV9, VP8 (supported version dependent on OS) Display 1 x HDMI 1 x VGA HDMI: resolution up to 1920x1080 @ 60Hz Storage External/Internal 1 x 2.5" SATA 2.0 Drive Bay 1 x micro SD (available upon request) Onboard eMMC (available upon request) Expansion Interface 1 x Full-size Mini PCIe (PCIe/USB) 1 x Full-size Mini PCIe (mSATA) 1 x Half-size Mini PCIe (PCIe/USB/LPC) 1 x SIM Socket Audio Audio Codec Realtek ALC886 5.1-channel Ethernet Controller 2 x Intel® I210AT PCIe (10/100/1000Mbps) LED Indicators 1 x Power LED 1 x HDD LED Top I/O Serial 3 x RS-232/422/485 (DB-9) (one supports 8-bit DIO) USB 1 x USB 3.0 (type A) Display 1 x HDMI Wi-Fi Antenna 2 x Antenna Hole Buttons 1 x Power Button 1 x Reset Button Bottom I/O Ethernet 2 x GbE (RJ-45) (10/100/1000Mbps) Serial 1 x RS-232/422/485 (DB-9) 1 x RS-232 (DB-9) USB 3 x USB 2.0 (type A) Audio 1 x Line-out 1 x Mic-in Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Power Type Wide Range 9~36V In-Vehicle Power Management Includes Ignition On/Off and System On/Off Delay Time Control Connector 3-pin Terminal Block (VCC/ACC/GND) OS Support OS Support Windows 7 (32bit/64bit) Windows 10 IoT Enterprise (32bit/64bit) Ubuntu 16.04 (64-bit) Environment Operating Temperature -20 to 60°C Storage Temperature -30 to 80°C Relative Humidity 5 to 85% RH (non-condensing) Mechanism Construction Aluminum Front Bezel IP Rating IP65 Front Panel Protection Mounting Panel/VESA Mount Dimensions (W x H x D) 294mm x 193mm x 65mm Weight 1.7 Kg Standards and Certifications Shock OP: Half-sine, 3G @ 11ms Non-OP: Half-sine, 5G @ 11ms Vibration OP: Random, 1Grms @ 5~500Hz, 30min Non-OP: Sweep sine, 3Grms @ 10~500Hz, 30min Certifications CE, FCC Class A, E-Mark (E13) Packing List Packing List 1 VP101-BT Touch Panel PC 1 Poron foam 1 Chassis Panel Mount Bracket 1 Quick Installation Guide Note: Please choose "VP101-BT product page >Download button" to download the Driver and Manual.
