| SPC150-HU / FULL IP65/IP69K | 산업용보드 > FULL IP65/66패널PC | 0 |
|---|---|---|
|

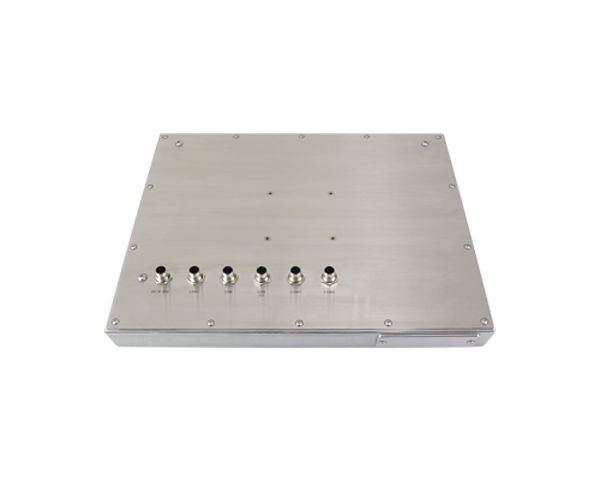

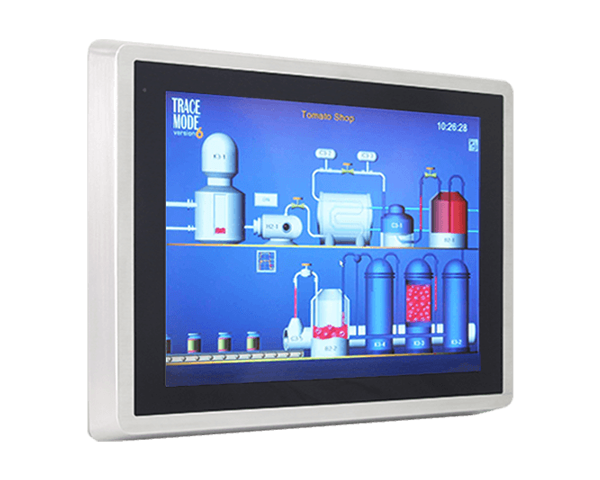

15" 1024x768 TFT LCD Panel with Touch Screen 4th Gen Intel® Core™ Processor SUS304 Grade Stainless Steel Enclosure (SUS 316 Optional) Total IP65/IP69K Protection, M12 Connector 9~36V DC Wide Voltage Power Input 7-Year CPU Life Cycle Support ? System Processor Intel® Core™ i5-4310U Processor, 3M Cache, 2GHz, 15W Intel® Core™ i3-4010U Processor, 3M Cache, 1.7GHz, 15W BGA 1168 packaging technology 22nm process technology Memory 4GB DDR3L Memory Onboard Single Channel DDR3L 1333/1600MHz Display and Touch Screen Display 15" 1024x768 TFT LCD Panel with Capacitive/5-wire Resistive Touch Screen Brightness 400 cd/m² Contrast 800:1 View Angle 160 (H) / 160 (V) Max. Color 16.7M Light Transmission capacitive: 90%, resistive: 80% Backlight Lifetime 50,000 MTBF LED Backlight Storage External/Internal 1 x 2.5" SATA 3.0 Drive Bay 1 x SD Socket Expansion Interface 1 x Full-size Mini PCIe (PCIe/USB) Audio Audio Codec Realtek ALC662 5.1-channel Ethernet Controller 1 x Intel® 82574L PCIe (10/100/1000Mbps) Bottom I/O Ethernet 1 x GbE (8-pin M12) Serial 1 x RS-232/422/485 (RS232 by default) (8-pin M12) 1 x RS-232 (8-pin M12) USB 1 x USB 3.0 (8-pin M12) 2 x USB 2.0 (8-pin M12) Power Type Wide Voltage 9~36V Connector 3-pin M12 Connector Consumption 30.12W OS Support OS Support Windows 7 Professional for Embedded Systems Windows 7 Ultimate for Embedded Systems Windows Embedded 8 Standard Windows Embedded 8 Pro Windows Embedded 8.1 Pro Windows Embedded 8.1 Industry Pro Environment Operating Temperature -20°C ~ 60°C (with Industrial SSD or CF) 0°C ~ 50°C (with HDD) Storage Temperature -30°C ~ 70°C Relative Humidity 10% ~ 90% @ 40°C (non-condensing) Mechanism Construction Stainless Steel Chassis IP Rating Total IP65/IP69K Mounting VESA mount (VESA 75x75) Dimensions (W x H x D) 399mm x 324mm x 48.5mm (W x H x D) Weight 7.2 kg Standards and Certifications Shock Operating: IEC60068-2-67, 15G half sine w/o SSD Vibration Operating: IEC60068-2-64, 1G, 5~500Hz Certifications CE, FCC Class A, RoHS Packing List Packing List 1 SPC150-HU Touch Panel PC 1 Power Adapter Note: Please choose "SPC150-HU product page >Download button" to download the Driver and Manual.
