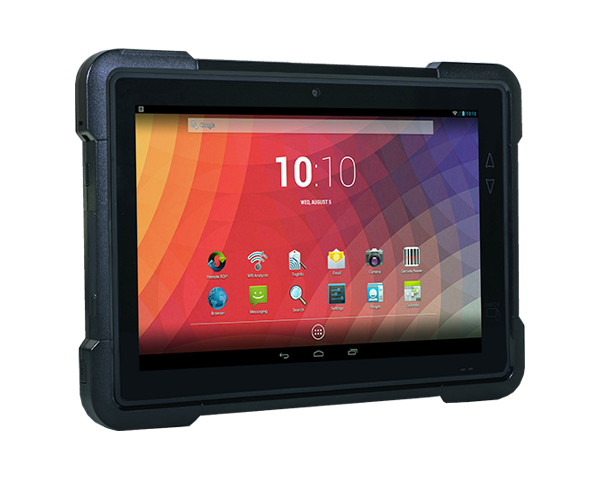

| ART101 | 산업용보드 > FULL IP65/66패널PC | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr
10.1” capacitive touch screen Built-in dual cameras - front: 2M, rear: 5M (auto focus & flash light) Supports Accelerometer, E-compass, and Gyro sensor Built-in Wi-Fi, BT4.0, GPS, and optional 3G support Built-in NFC RFID and optional 1D/2D barcode reader ? System Processor Freescale i.MX 6 DualLite at 1GHz Memory 1GB DDR3 Onboard (default) Display and Touch Screen Display 10.1” 1280x800 TFT LCD Panel with Capacitive Touch Screen Sensor Accelerometer Sensor E-Compass Sensor Gyroscope Sensor Vibrator Light Sensor Brightness 350 cd/m² Storage eMMC 8GB eMMC Onboard (also for Android OS image) Audio Internal 2 x 0.8W Speaker LED Indicators 1 x Red/Green LED for Power and System Status 1 x Blue LED for NFC RFID I/O External 1 x microSD 1 x micro HDMI 1 x Earphone & Mic 1 x micro USB 1 x POGO Pins 1 x DC Jack Buttons 1 x Power Button 2 x Volume Button 2 x Scanner Trigger Button Communication Wireless Wi-Fi 802.11 a/b/g/n Bluetooth V4.0+HS NFC RFID 13.56MHz (ISO 14443 A/B, FeliCa) WWAN 3G (optional) GPS (Ublox inside) Camera Rear Camera 5.0 Mega Pixels, Auto Focus, Flash Light Front Camera 2.0 Mega Pixels Power Type Input: 100~240V AC 50/60Hz 0.8A Output: 5V DC 3A, AC Cable Battery Li-ion, 3.7V, 8060mAh Working Time: 8 hrs, Note: Wi-Fi & BT ON and LCD ON (default brightness) with Stand by Mode OS Support OS Support Android 4.2.2 (2.5GB) Android 5.0.2 Environment Operating Temperature 0 to 40°C Storage Temperature -20 to 60°C (w/o battery) Charging Temperature 0 to 40°C Relative Humidity 5 to 95% RH (non-condensing) Mechanism IP Rating IP65 Protection (w/o 1D/2D barcode reader) IP54 Protection (w/ 1D/2D barcode reader) Dimensions (W x H x D) 278mm x 199mm x 21mm (10.94" x 7.83" x 0.83") Weight 950 g Standards and Certifications Drop 3.28ft Drop Tested Certifications CE, BSMI, FCC, FCC ID: E5YART101, NCC Packing List Packing List 1 ART101 Tablet 1 Power Adapter 1 USB Cable 1 Quick Guide Note: Please choose "ART101 product page >Download button" to download the Driver and Manual.
