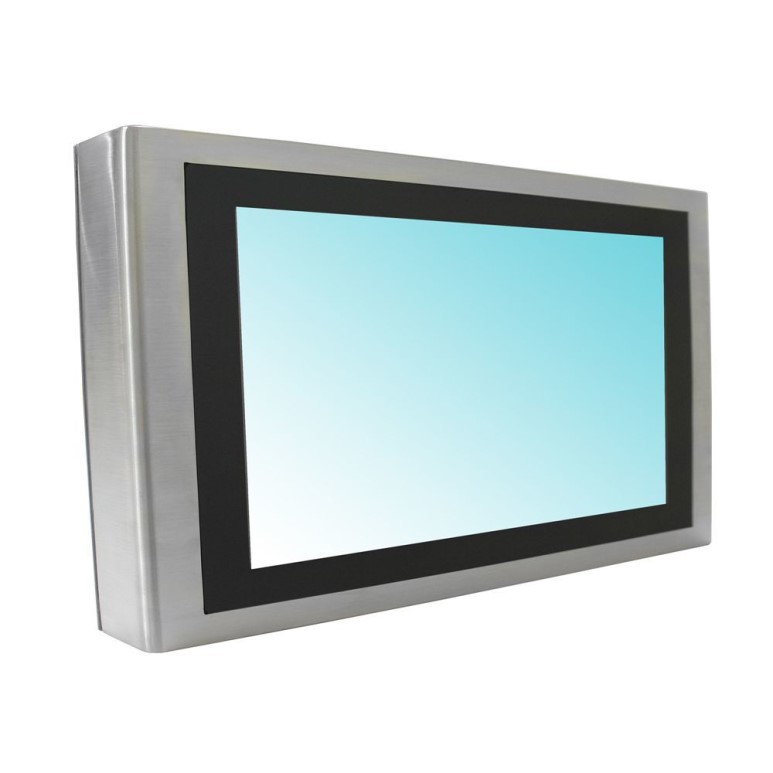

IP215P017/019S/21.5" 4th gen Intel Core True Flat Touch Panel PC- Full IP65 PCAP

산업용보드 > FULL IP65/66패널PC

● Fanless design and compact solution

● Intel 4th Gen Intel® Core™ i3/ i5/ i7

● Resolution 1920 x 1080 dpi

● PCAP touch solution

● Fully IP65 compliant 6-sised stainless steel chassis

● All IP65 stainless connectors

● 2 x USB, 2 x RS232, 2 x GLAN

● VESA mounting

System
CPU	Intel 4th Gen Intel® Core™HSW ULT i3 4010U/ i5 4300U/ i7 4650U CPU
Memory	2 x 204-pin DDR3L SODIMM up to 16GB
H/W Monitor
Watch Dog Timer	Watch Dog Timer 256 Level
I/O Ports
RS232	2
GLAN	2
USB	2
Storage
Storage	1 x SATA 2.0 2.5” HDD/SSD
Power Requirement
Power Requirement	DC in 12V(017S); DC in 19~24V(019S)
Touch Screen
Touch Screen	PCAP
OS support
	Win Pro 7,8,10 ; Embedded Win 7, 8,10
Display
Size	21.5" TFT (16:9)
Resolution	1920 x 1080
Colors	16.7 M
Luminance ( cd/m2)	300
Contrast Ratio	3000:1
View Angle ( H / V )	178/178
Mechanical &Environmental
External heatsink	Back Side
Operation Temp	0~ 45°C
Storage Humidity	10 ~ 90%, non-condensing
Mount	VESA mounting(100 X 100 mm)
Dimension (W x H x D mm)&Weight	607 x 401 x67.1 (13kg)
Storage Humidity	10 ~ 90%, non-condensing
Optional
RS232/422/485	1 or 2
RAID
RFID	1
Full IP65 Power Adaptor	1
No Touch Screen	1
AR Glass	1
Optinal High Brightness Panel
Resolution	1920 x 1080
Color	16.7 M
Luminance(cd/m2)	1600
Contrast Ratio	900:1
Viewing Angle (H/V°)	178/178
