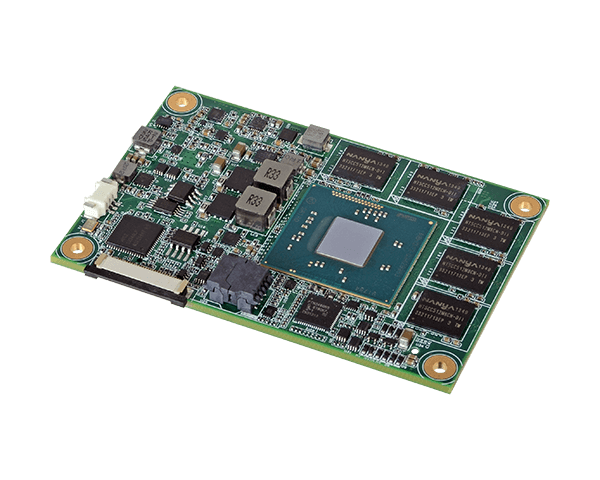

| BT9A3 | 산업용보드 > COM EXP Mini | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr
Intel Atom® E3800 Processor Series Rich I/O: 1 Intel GbE, 1 USB 3.0, 8 USB 2.0 Multiple expansions: 3 PCIe x1, 2 SATA 2.0 1 LVDS, 1 DDI (HDMI/DVI/DP) Single Channel DDR3L 1333MHz ECC Memory Down up to 4GB 15-Year CPU Life Cycle Support ? System Processor Intel Atom® Processor E3800 Series, BGA 1170 Intel Atom® E3845, Quad Core, 2M Cache, 1.91GHz, 10W Intel Atom® E3827, Dual Core, 1M Cache, 1.75GHz, 8W Intel Atom® E3815, Single Core, 0.5M Cache, 1.46GHz, 5W Intel® Celeron® J1900, Quad Core, 2M Cache, 2GHz (2.41GHz), 10W Intel® Celeron® N2930, Quad Core, 2M Cache, 1.83GHz (2.16GHz), 7.5W Memory 2GB/4GB DDR3L 1333MHz ECC Memory Down Single Channel BIOS AMI SPI 64Mbit Graphics Controller OpenGL 4.0, DirectX 11, OpenCL 1.2 HW Decode: AVC/H.264, MPEG2, VC1, WMV9, JPEG/MJPEG, HEVC/H.264, VP8, VP9, MVC HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.264, VP8, VP9, MVC Display 1 x DDI (HDMI/DVI/DP) 1 x LVDS LVDS: single channel 24-bit, resolution up to 1366x768 @ 60Hz HDMI/DVI: resolution up to 1920x1080 @ 60Hz DP: resolution up to 2560x1600 @ 60Hz Expansion Interface 3 x PCIe x1 (Gen 3) 1 x LPC 1 x I2C 1 x SMBus 2 x Serial (TX/RX) Audio Interface HD Audio Ethernet Controller 1 x Intel® I210 (10/100/1000Mbps) I/O USB 1 x USB 3.0 8 x USB 2.0 SATA 2 x SATA 2.0 eMMC 1 x 4GB/8GB/16GB/32GB eMMC (available upon request) DIO 1 x 8-bit DIO Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Power Type 4.75V~20V, 5VSB, VCC_RTC (ATX mode) 4.75V~20V, VCC_RTC (AT mode) Consumption TBD OS Support OS Support Windows 7 Ultimate x86 & SP1 (32-bit) Windows 7 Ultimate x64 & SP1 (64-bit) Windows 8.1 Enterprise x86 (32-bit) Windows 8.1 Enterprise x64 (64-bit) Windows 10 will be available upon request. Please contact DFI for more information. Environment Temperature Operating: 0 to 60°C -40 to 85°C Storage: -40 to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF 800,542 hrs @ 25°C; 406,343 hrs @ 45°C Calculation model: Telcordia Issue 2, Method I Case 3 Environment: GB, GC ? Ground Benign, Controlled Mechanism Dimensions COM Express® Mini 84mm (3.30") x 55mm (2.16") Compliance PICMG COM Express® R2.1, Type 10 Standards and Certifications Certifications CE, FCC Class B, RoHS Packing List Packing List 1 BT9A3 board 1 Heat sink: A71-011055-000G
