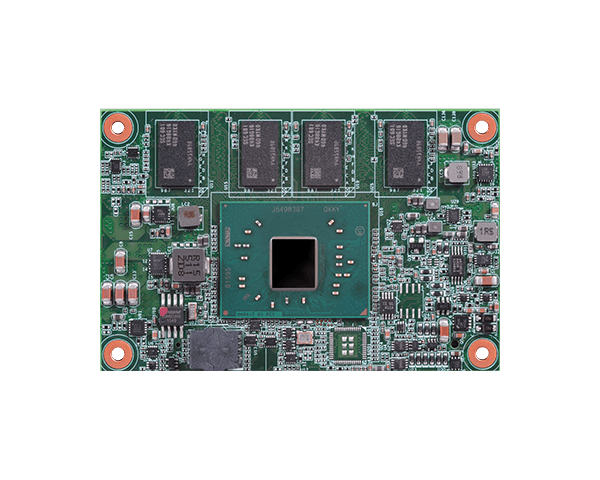

| AL9A3 | 산업용보드 > COM EXP Mini | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr
Intel Atom® E3900 Processor Series Multiple expansions: 4 PCIe x1 Rich I/O: 1 Intel GbE, 2 USB 3.0, 8 USB 2.0 1 LVDS/eDP, 1 DDI (HDMI/DVI/DP) Supports dual displays: DDI + LVDS/eDP Dual Channel DDR3L 1600MHz Memory Down up to 8GB 15-Year CPU Life Cycle Support ? System Processor Intel Atom® Processor E3900 Series, BGA 1296 Intel Atom® x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6.5W Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W Memory 4GB/8GB Memory Down Dual Channel DDR3L 1600MHz BIOS AMI SPI 128Mbit (supports UEFI boot only) Graphics Controller Intel® HD Graphics Feature OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1, WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC Display 1 x DDI (HDMI/DVI/DP++) 1 x LVDS/eDP LVDS: single channel 24-bit, resolution up to 1366x768 @ 60Hz HDMI: resolution up to 3840x2160 @ 30 Hz DP++: resolution up to 4096x2160 @ 60Hz eDP: resolution up to 3840x2160 @ 60Hz Dual Displays DDI + LVDS DDI + eDP Expansion Interface 4 x PCIe x1 (Gen 2) 1 x SDIO (available upon request) 1 x LPC 1 x I2C 1 x SMBus 1 x SPI 2 x UART (TX/RX) Audio Internal HD Audio Ethernet Controller 1 x Intel® I210AT (10/100/1000Mbps) (0°C to 60°C) 1 x Intel® I210IT (10/100/1000Mbps) (-40°C to 85°C) I/O USB 2 x USB 3.0 8 x USB 2.0 SATA 2 x SATA 3.0 (up to 6Gb/s) SSD 1 x 4GB/8GB/16GB/32GB/64GB SSD (available upon request) GPIO 1 x 8-bit GPIO Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Power Type 4.75V~20V, 5VSB, VCC_RTC (ATX mode) 4.75V~20V, VCC_RTC (AT mode) Consumption TBD OS Support OS Support (UEFI Only) Windows: Windows 10 IoT Enterprise 64-bit Linux: Ubuntu 15.10 (Intel® graphic driver available) Environment Temperature Operating: 0 to 60°C -40 to 85°C Storage: -40 to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF TBD Mechanism Dimensions COM Express® Mini 84mm (3.30") x 55mm (2.16") Compliance PICMG COM Express® R2.1, Type 10 Packing List Packing List 1 AL9A3 board 1 Heat sink: TBD
