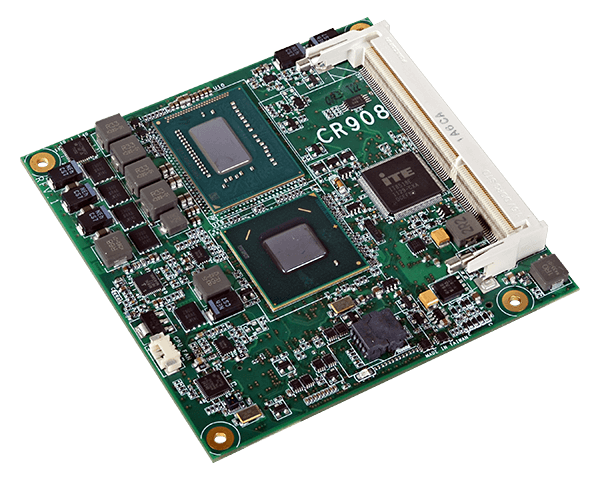

| CR908-B / COM EXPRESS TYPE 6 | 산업용보드 > COM EXP Mini | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr
3rd/2nd Gen Intel® Core™, Intel® QM77 Chipset Rich I/O: 1 Intel GbE, 4 USB 3.0, 4 USB 2.0 Multiple expansion: 1 PCIe x16, 4 SATA, 1 LPC, 1 I2C, 1 SMBus 1 VGA, 1 LVDS, 3 DDI (HDMI/DVI/DP/SDVO) Dual channel DDR3L 1600MHz SODIMM up to 8GB 7-Year CPU Life Cycle Support ? System Processor BGA 1023 packaging technology - 3rd Generation Intel® Core™ processors (22nm process technology) Intel® Core™ i7-3610QE (6M Cache, up to 3.3 GHz); 45W Intel® Core™ i5-3610ME (3M Cache, up to 3.3 GHz); 35W Intel® Core™ i3-3120ME (3M Cache, 2.4 GHz); 35W - 2nd Generation Intel® Core™ processors (32nm process technology) Intel® Core™ i7-2710QE (6M Cache, up to 3.0 GHz); 45W Intel® Core™ i5-2510E (3M Cache, up to 3.1 GHz); 35W Intel® Core™ i3-2330E (3M Cache, 2.2 GHz); 35W Intel® Celeron® B810 (2M Cache, 1.6 GHz); 35W Chipset Intel® QM77 Chipset Memory One 204-pin SODIMM up to 8GB Single Channel DDR3L 1600MHz BIOS UEFI SPI 64Mbit Graphics Controller Intel® HD Graphics 4000 (3rd generation processors) Intel® HD Graphics 3000 (2nd generation processors) Intel® HD Graphics (Intel® Celeron™ processors) Feature DirectX Video Acceleration (DXVA) for accelerating video processing - Full AVC/VC1/MPEG2 HW Decode Supports DirectX 11/10.1/10/9 and OpenGL 3.0 (3rd generation processors) Supports DirectX 10.1/10/9 and OpenGL 3.0 (2nd generation processors) Display 1 x VGA 1 x LVDS 3 x DDI (HDMI/DVI/DP/SDVO) VGA: resolution up to 1920x1200 @ 60Hz LVDS: dual channel 36/48-bit, resolution up to 1920x1200 @ 60Hz HDMI/DVI/DP: resolution up to 1920x1200 @ 60Hz Expansion Interface 1 x PCIe x16 (Gen 3) 1 x PCIe x4 and 3 PCIe x1 or 7 PCIe x1 1 x LPC 1 x I2C 1 x SMBus 2 x UART (TX/RX) Audio Interface HD Audio Ethernet Controller 1 x Intel® 82579LM (10/100/1000Mbps) I/O USB 4 x USB 3.0 4 x USB 2.0 SATA 2 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10 2 x SATA 2.0 (up to 3Gb/s) GPIO 1 x 8-bit GPIO Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Power Type 12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode) Consumption 35.42 W with i7-3612QE at 2.1GHz and 1x 2GB DDR3 SODIMM OS Support OS Support Windows XP Professional x86 & SP3 (32-bit) Windows XP Professional x64 & SP2 (64-bit) Windows 7 Ultimate x86 & SP1 (32-bit) Windows 7 Ultimate x64 & SP1 (64-bit) Windows 8 Enterprise x86 (32-bit) Windows 8 Enterprise x64 (64-bit) Environment Temperature Operating: 0 to 60°C Storage: -20 to 85°C Humidity Operating: 10 to 90% RH Storage: 10 to 90% RH MTBF TBD Mechanism Dimensions COM Express® Compact 95mm (3.74") x 95mm (3.74") Compliance PICMG COM Express® R2.1, Type 6 Standards and Certifications Certifications CE, FCC, RoHS, UL Packing List Packing List 1 CR908 board Heat sink with fan:A71-111008-000G
